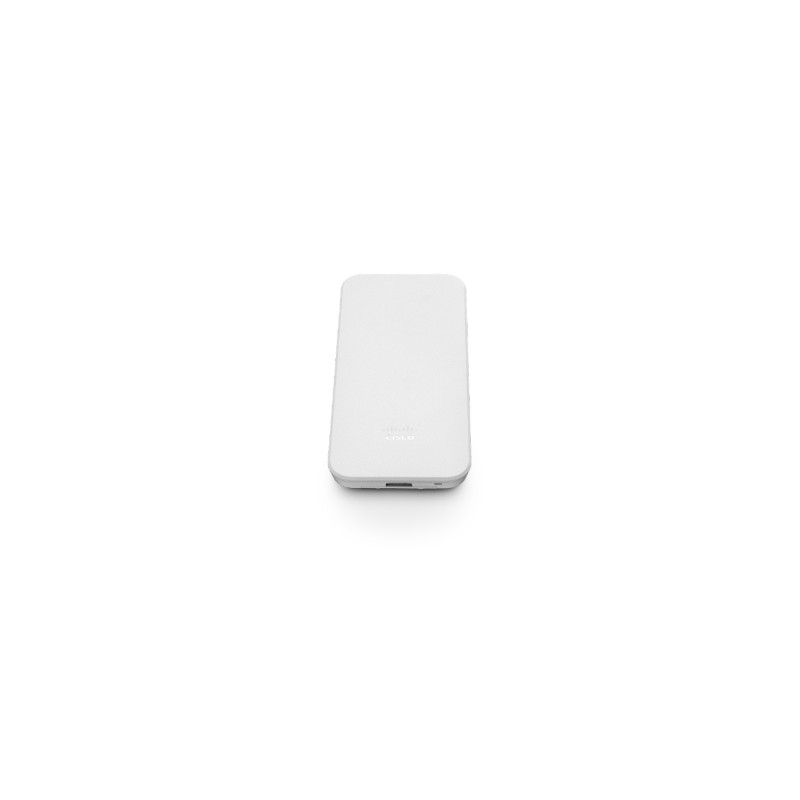

Meraki MR78 Wi-Fi 6 Outdoor AP

802.11ax, 802.11ac Wave 2 and 802.11n Capabilities
DL-OFDMA**, UL-OFDMA**, TWT support**, BSS Coloring**
2 x 2 multiple input, multiple output (MIMO) with two spatial streams
SU-MIMO, UL MU-MIMO** and DL MU-MIMO support
Maximal ratio combining (MRC) & beamforming
20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax)
Up to 1024-QAM on both 2.4 GHz & 5 GHz bands
Packet aggregation

Power over Ethernet: 37 - 57 V (802.3af compatible)
Power consumption: 15W max (802.3af). Note: actual power consumption may vary depending on the AP usage.
Power over Ethernet injector sold separately
Note: Actual power consumption may vary depending on the AP usage.

1x 10/100/1000 BASE-T Ethernet (RJ45)


All standard mounting hardware included
Desktop, ceiling, and wall mount capable
Ceiling tile rail (9/16, 15/16 or 1 1/2” flush or recessed rails), assorted cable junction boxes
Bubble level on mounting cradle for accurate horizontal wall mounting

Integrated Layer 7 firewall with mobile device policy management
WIDS/WIPS with alerting and rogue AP detection with Air Marshal (performed opportunistically with best-effort on client-serving radios)
Flexible guest access with device isolation
VLAN tagging (802.1q) and tunneling with IPsec VPN
PCI compliance reporting
WEP*, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal, WPA3 - Enterprise, WPA3 - Enhanced Open (OWE)**
EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
TKIP and AES encryption
Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
Cisco ISE integration for Guest access and BYOD Posturing
