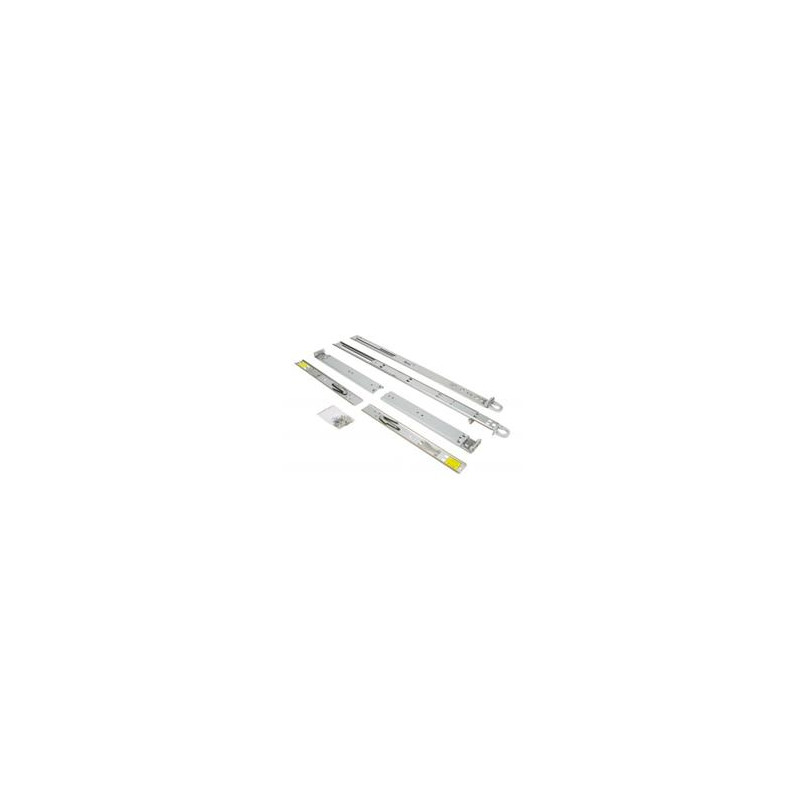

This Supermicro 1U Rail Kit (MCP-290-00054-0N) has a two section quick inner and outer rail release and can extend up to 33.05" in length. The rail kit is compatible with CSE-SC118G, CSE-818G, CSE-813, and CSE-815. This Supermicro rail kit has been fully tested and validated by Supermicro to ensure the best quality.
This rail kit includes*: •Front Inner Rail: 2 x MCP-290-00106-0N
•Rear Inner Rail: 2 x MCP-290-00110-0N
•Outer Rail: 2 x MCP-290-00102-0N
*Individual SKUs not sold separately
*All the installation instruction could be found in the chassis or system manual
Manufacturer
Supermicro
Outer Rail Extendable Length
25.6" to 33.05"
Rail Kit Type
Rail Kits
Designed For
1U
Compatible Chassis
CSE-SC118G, CSE-818G, CSE-813, CSE-815
Mechanism
Linear Friction Rail
Validated Systems
AS-1014S-WTRT, SYS-1027GR-TSF, SYS-5019C-WR, SYS-5019GP-TT, SYS-5019P-WT, SYS-5019P-WTR, SYS-5019S-W4TR, SYS-5019S-WR, SYS-6018R-WTR, SYS-6018R-WTRT, SYS-6019P-WT, SYS-6019P-WTR
Validated Chassis
CSE-815TQ-R706WB, CSE-815TQC-605CB, CSE-815TQC-605WB, CSE-815TQC-R504CB, CSE-815TQC-R504WB, CSE-815TQC-R504WB2, CSE-815TQC-R706CB, CSE-815TQC-R706WB, CSE-815TQC-R706WB2, CSE-LA15TQC-R706AW
Warranty
1 year warranty
Product Environmental Compliance
RoHS and REACH compliant, details available upon request
