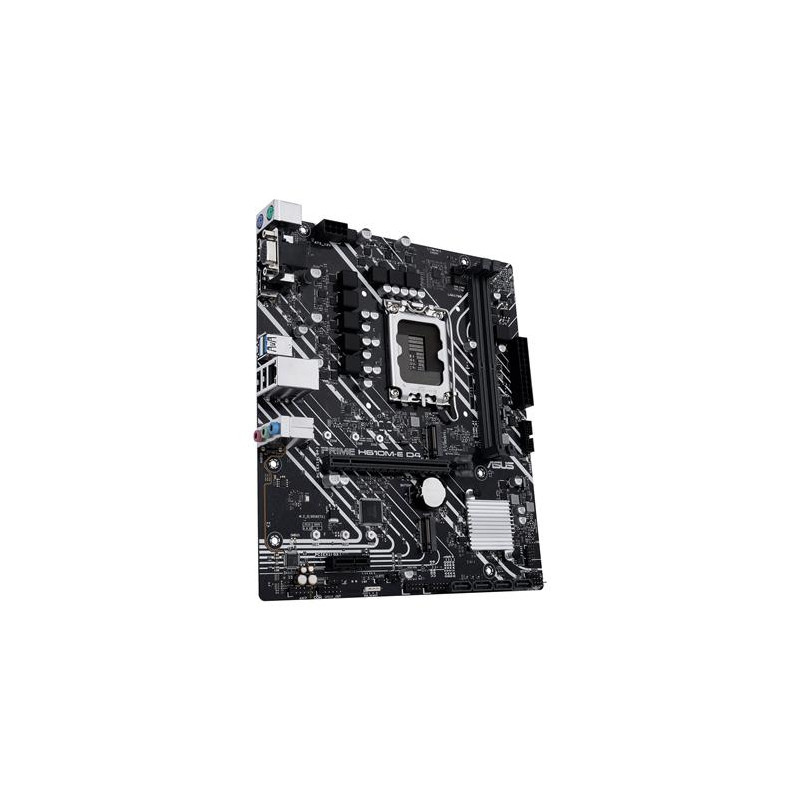

ASUS PRIME H610M-E D4-CSM, Intel H610, 2xDDR4, Mikro ATX (90MB19N0-M0EAYC)

Chipset: Intel H610 Chipset

Rozměrový formát: mATX (24.4 cm x 21.1 cm)
Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors
Patice procesoru: LGA1700

Pozice na paměti: 2 x DIMM, Dual Channel Memory Architecture
Podpora pro paměti: DDR4 3200/3000/2933/2800/2666/2400/2133 MHz
Max.velikost operační paměti: 64 GB
Podpora pro paměti typu: XMP

Grafická karta: (na základě procesoru)

1 x DisplayPort
1 x D-Sub port
1 x HDMI port
Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC

Síťová karta: 1 x Realtek 1Gb Ethernet

Rozšiřující sloty:

1 x PCIe 4.0 x16 slot
1 x PCIe 3.0 x1 slot
SATA: 4 x SATA 6Gb/s ports

M.2: 2 x M.2 slots (Key M)

USB:

Interní:
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Externí:
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Interní porty:

Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Externí porty:

2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x D-Sub port
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
BIOS: UEFI AMI BIOS, 128 Mb Flash ROM
