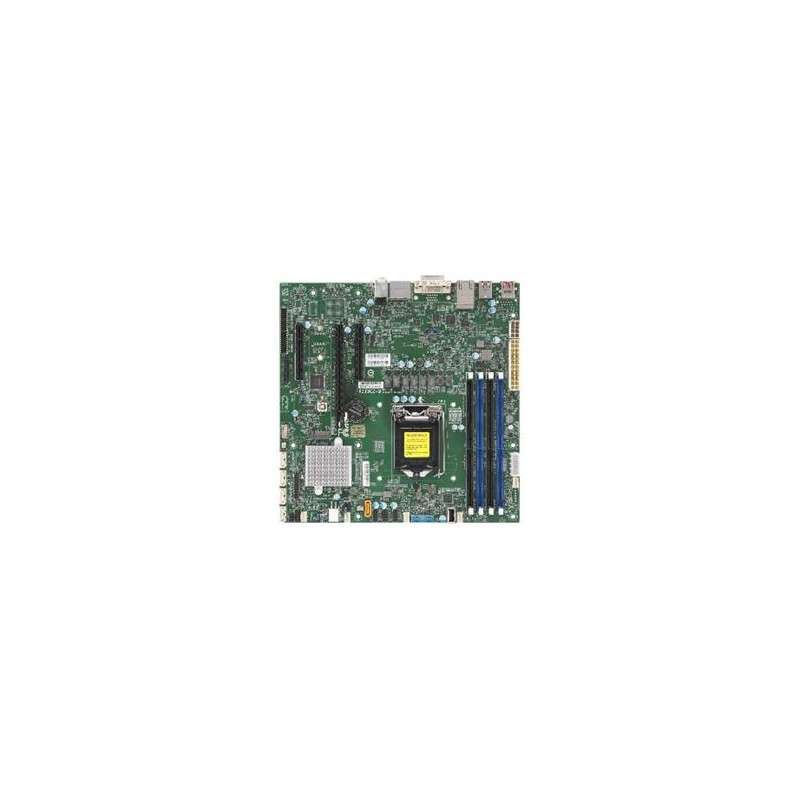

SUPERMICRO MB 1xLGA1151 (Core 8th 95W in 1U), Q370,4xDDR4,6xSATA3,M.2,4xPCIe 3.0 (x16, x1,2 x4),2xDP,DVI,Audio,2x LAN

Product SKUs MBD-X11SCZ-Q X11SCZ-Q Physical Stats Form Factor uATX Dimensions 9.6" x 9.6" (24.38cm x 24.38cm) Processor/Cache CPU 8th/9th Generation Intel® Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® Processor. Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP System Memory Memory Capacity Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots Memory Type 2666/2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V On-Board Devices Chipset Intel® Q370 SATA Intel® Q370 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Network Controllers Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Intel® PHY I219LM LAN controller Audio ALC 888S HD Audio Graphics Intel® HD Graphics 3 Independent Displays Input / Output LAN 2 RJ45 Gigabit Ethernet LAN ports USB 7 USB 2.0 ports (6 via headers, 1 Type A) 2 USB 3.1 Gen1 ports(2 via headers) 6 USB 3.1 Gen2 ports (3 Rears Type A + 1 Rear Type C, 2 via headers) Video Output 1 DVI - I port, 2 DP (DisplayPort) ports, 3 Independent Displays Serial Port / Header 4 COM Ports (4 headers) TPM TPM Header & Chip both Expansion Slots PCI-E 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x4 (in x8 slot) M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4 Form Factor: 2280/22110 Key: M-Key System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.1 SMBIOS 3.1 PCI FW 3.0 UEFI 2.6 RTC (Real Time Clock) Wakeup Management Software AMT, NMI, SuperDoctor® 5, vPro, Watchdog Power Configurations +12V DC Power Input ATX Power connector ACPI Power Management PC Health Monitoring Voltage +1.35V, +1.5V, +1.8V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 5 -fan status FAN 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Dual Cooling Zone Temperature Thermal Control for 5 Fan Connectors LED N/A Other Features 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, M.2 NGFF connector, RoHS Operating Environment Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F) Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11SCZ-Q 1 X11SCZ-Q Motherboard I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00126-0N 1 Standard I/O Shield for X11SCZ with EMI Gasket Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X11SCZ-Q 1 X11SCZ-Q Motherboard QRG MNL-2086-QRG 1 Motherboard Quick Reference Guide I/O Cables CBL-0044L 5 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00126-0N 1 Standard I/O Shield for X11SCZ with EMI Gasket Optional Parts List Name Part Number Qty Description Serial Port Cable CBL-CUSB-0984 -- Dual Serial Port Breakout Cable 20cm 1U I/O Shield MCP-260-00127-0N -- 1U I/O Shield for X11SCZ with EMI Gasket in SC813 Chassis 1U I/O Shield MCP-260-00128-0B -- 1U I/O Shield for X11SCZ with EMI Gasket in SC510 Chassis USB3.1 Cable CBL-CUSB-0835 -- Dual USB3.1 Type A Cable with Bracket Chassis (Optimized for X11SCZ-Q) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower #22 SC813MFTQC-350CB2 #22 SC510FT-203B SC512F-350B1 SC512F-350B1 1U Heatsink:SNK-P0049P SC731i-300B SC731i-403B SC731D-300B SC732D3-1200B SC733TQ-668B 2U Heatsink:SNK-P0046A4 SC743AC-1200B-SQ SC745BAC-R1K28B2 2U Heatsink:SNK-P0046A4
