Overview

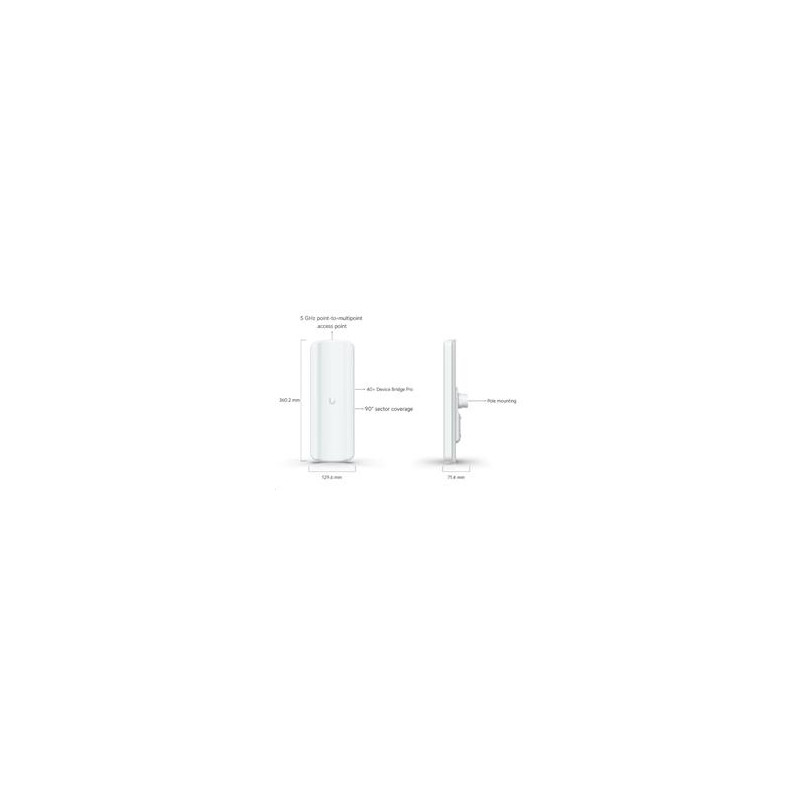

Dimensions
360.9 x 129.6 x 71.4 mm
(14.2 x 5.1 x 2.8”)
WiFi Standard
WiFi 5
Spatial Streams
2
Coverage Area
5 km (3.1 mi)
Mounting Locations
Pole
Weatherproofing
IPX6
Power Method
PoE
Performance
MIMO
5 GHz
2 x 2
Max. Data Rate
5 GHz
400 Mbps (BW40)
Antenna Gain
5 GHz
17 dBi
Max. TX Power
5 GHz
25 dBm
Max. Conducted TX Power
25 dBm (Combined)
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40)
Wireless Security
WPA2 AES (Always On)
Hardware
Max. Power Consumption
6W
Supported Voltage Range
42.5—57V DC
Networking Interface
(1) GbE RJ45 port
Antennas
Internal
Management
Ethernet
WiFi
Wind Loading
128.2N at 200 km/h
Weight
Device: 782 g (1.7 lb)
With mount: 835 g (1.8 lb)
Mount Material
UV-stabilized polycarbonate, stainless steel
Enclosure Material
UV-stabilized polycarbonate
Pole Mount Diameter
0.9—2.4" (24—60 mm)
Button
(1) Factory-reset
LEDs
System
Power, Ethernet
Channel Bandwidth
20/40 MHz
Certifications
CE, FCC, IC
Operating Frequency
US/CA:
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
Worldwide:
5150 - 5875 MHz
Ambient Operating Temperature
-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Yes
