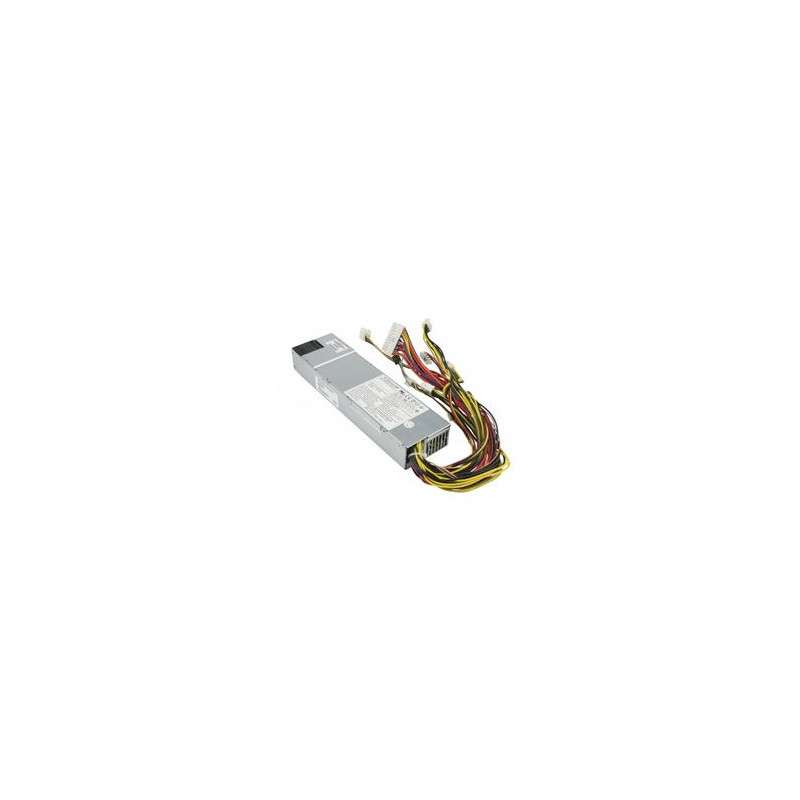

SUPERMICRO 1U 600W Multi Output Power Supply Pmbus

The Supermicro PWS-605P-1H provides up to 600w output. It features PMBus 1.2 support for remote management. The power supply is 80 Plus certification and active PFC for high efficiency. Total Power Output 600W Type Single Type of Power Supply Power Supply Form Factor 1U Dimension (W x H x L) 76 x 40.4 x 279.4 mm +5V 18A +12V 49A +3.3V 15A 5V Standby 3A Input Voltage Range 100-240Vac Input Frequency Range 50-60Hz Output Type 24Pin ATX Cable Output 8Pin / 4Pin (12V) Connector Both PFC Yes Voltage / Current Yes Energy Efficiency 94% 80 Plus Certification 80 Plus Platinum Validated Systems SYS-1028R-MCT, SYS-1028R-TDW, SYS-1029P-MT, SYS-1029P-WT, SYS-5019P-WT, SYS-6017R-NTF, SYS-6017R-TDAF, SYS-6017R-TDT+, SYS-6018R-TDTP, SYS-6018R-TDW, SYS-6019P-WT, SYS-6027R-TDT+ Validated Chassis CSE-111TQ-600CB, CSE-111TQ-600UB, CSE-113AC2-605WB, CSE-113MFAC2-605CB, CSE-113MTQ-600CB, CSE-113TQ-600CB, CSE-113TQ-600UB, CSE-113TQ-600WB, CSE-213LT-600LPB, CSE-815TQ-600CB, CSE-815TQ-600UB, CSE-815TQ-600WB, CSE-815TQC-605CB, CSE-815TQC-605WB, CSE-825TQ-600LPB, CSE-825TQ-600WB, CSE-825TQC-600LPB, CSE-825TQC-600WB Warranty 1 year warranty Product Environmental Compliance RoHS and REACH compliant, details available upon request
