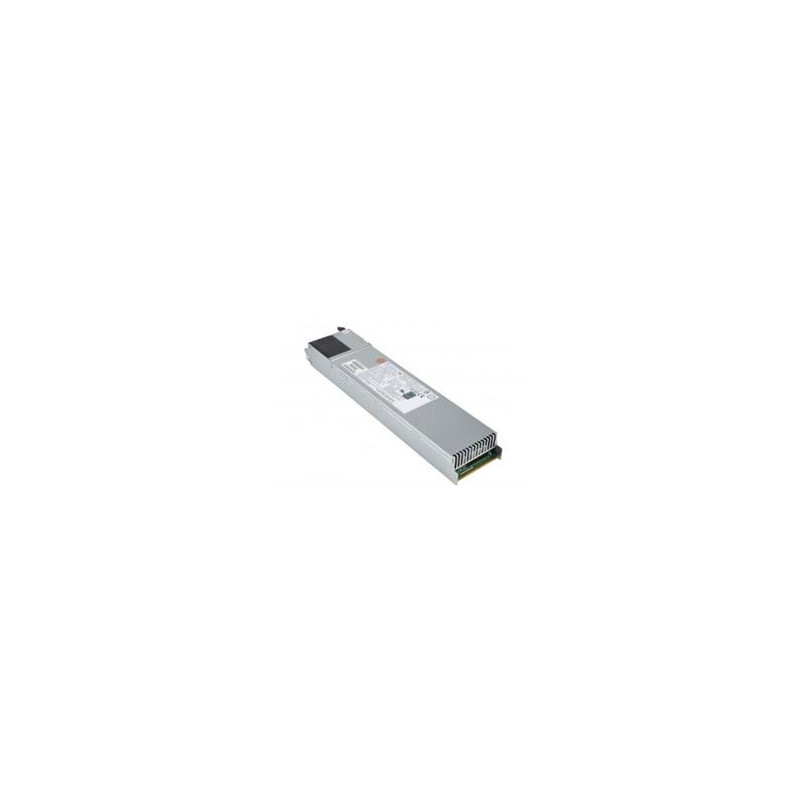

SUPERMICRO 1U 2200W Redundant, Titanium (X11 GPU Twin)

Total Power Output 2200W Type Redundant Type of Power Supply Power Supply Form Factor 1U Dimension (W x H x L) 76 x 336 x 40 mm +5V - +12V 100A / 1200W 150A / 1800W 165A / 1920W 174.17A / 2090W 183.3A / 2200W (for UL/cUL only) +3.3V - 5V Standby 1A Input Voltage Range 100-127Vac / 1200W 200-220Vac / 1800W 220-230Vac / 1980W 230-240Vac / 2090W 220-240Vac / 2200W (for UL/cUL only) 200-220Vac / 2090W (for UL/cUL only) 230-240Vdc / 2090W (for CQC only) Input Frequency Range 50-60Hz PMBus 1200W: 14 -11A 1800W: 10 – 9.5A 1980W: 10 – 9.8A 2090W: 10 – 9.8A 2200W: 12 -11A (for UL/cUL only) 2090W: 14 -11A (for UL/cUL only) 2090W: 10 – 9.8A (for CQC only) Output Type Gold Finger (27 Pair Connector) 8Pin / 4Pin (12V) Connector - PFC - Voltage / Current PMBus 1.2 Support Energy Efficiency 96%+ Efficiency 80 Plus Certification 80 Plus Titanium Validated Systems SYS-2029TP-HC0R, SYS-2029TP-HC1R, SYS-2029TP-HTR, SYS-5039MP-H8TNR, SYS-5049A-TR, SYS-6029TP-HC0R, SYS-6029TP-HC1R, SYS-6029TP-HTR, SYS-7049GP-TRT, SYS-F619H6-FT, SYS-F619P2-FT, SYS-F619P2-FT+, SYS-F619P2-RC0, SYS-F619P2-RC1, SYS-F619P2-RT, SYS-F619P2-RTN, SYS-F619P3-FT Validated Chassis CSE-217HQ+-R2K20BP2, CSE-747BTS-R2K20BP, CSE-827HQ+-R2K20BP2 Search Terms No Warranty 1 year warranty Product Environmental Compliance RoHS and REACH compliant, details available upon request
