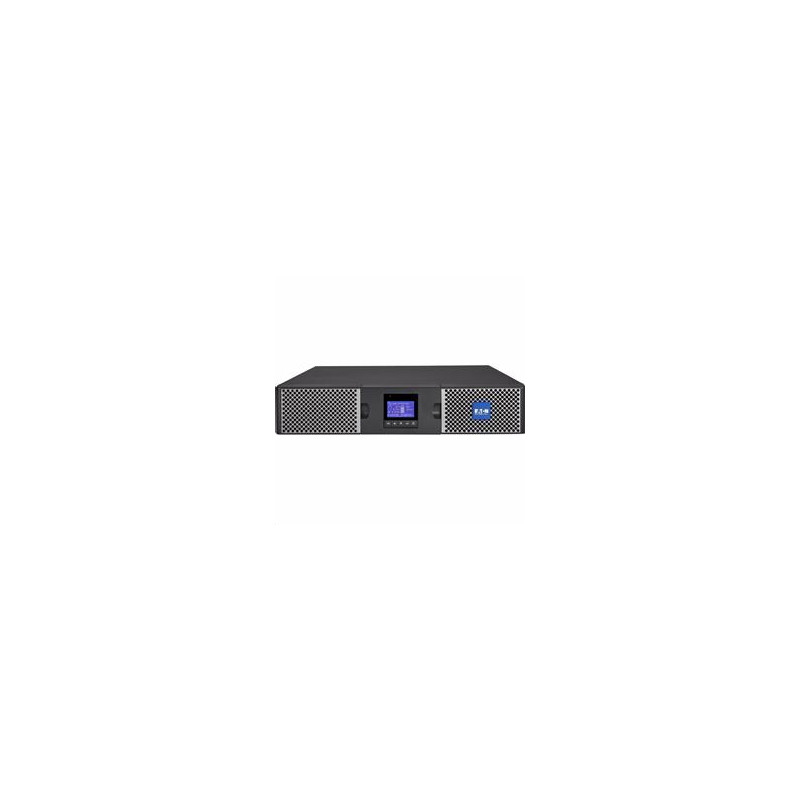

EATON UPS 9PX 1500i RT2U Netpack Li-Ion, On-line, Rack 2U Tower, 1500VA 1500W, výstup 8x IEC C13, USB, displej, LAN

GENERAL SPECIFICATIONS PRODUCT NAME Eaton 9PX UPS CATALOG NUMBER 9PX1500IRTN-L PRODUCT LENGTH/DEPTH 450 mm PRODUCT HEIGHT 86.5 mm PRODUCT WIDTH 440 mm PRODUCT WEIGHT 15.88 kg WARRANTY 5 year COMPLIANCES CE Marked MODEL CODE Eaton 9PX 1500i RT2U Netpack Li-Ion TECHNICKÉ ÚDAJE PRODUKTU SECONDARY FREQUENCY - MAX 60 Hz OUTPUT WAVEFORM Sine wave MAX NUMBER OF BATTERY PACKS 4 WATTAGE 1500 W OUTPUT POWER FACTOR 1 VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX 3 INCLUDES NETWORK CARD Yes INPUT CONNECTION C14 INPUT VOLTAGE - MIN 100 V OUTPUT VOLTAGE - MAX 240 V SECONDARY FREQUENCY - MIN 50 Hz SOFTWARE COMPATIBILITY Eaton Intelligent Power Manager, Eaton Intelligent Power Protector BATTERY REPLACEMENT Hot-swappable internal batteries and extended battery modules (EBMs) BATTERY TYPE Lithium-ion EFFICIENCY 92.5 SPECIAL FEATURES Lithium-ion batteries|Double conversion topology|Constantly monitors power conditions and regulates voltage and frequency|First UPS in its class to provide Unity power factor (VA=W)|Energy Star qualified, provides the highest efficiency level to reduce energy and cooling costs|Internal bypass allows service continuity in case of UPS fault|Next-generation graphical LCD display|Network card and rackmounting kit delivered as standard|Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)|Meter energy consumption (down to the managed outlet groups) CONSTRUCTION TYPE 482.6 mm (19 inch) device OUTPUT VOLTAGE - MIN 200 V COLOR Black/silver EXTENDED BATTERY CAPABILITY Yes OUTPUT VOLTAGE RANGE 200/208/220/230/240 V +/- 1% TOPOLOGY Online/Double-conversion BTU RATING Online: 386 EFFICIENCY (ECO-MODE) 97.5 BACK-UP TIME 10 min INPUT NOMINAL VOLTAGE 230V default (200/208/220/230/240V) INPUT POWER FACTOR >.99 INPUT FREQUENCY RANGE 40-70 Hz INTERNAL BYPASS Yes INPUT VOLTAGE - MAX 276 V VOLTAGE TYPE AC PHASE (OUTPUT) 1 BATTERY MANAGEMENT Lithium-ion batteries with battery management system|Automatic recognition of external battery units INTEGRATED FUNCTIONALITY Network Mangement AUTO SHUTDOWN FUNCTION Yes NUMBER OF OUTPUTS C13 8 VA RATING 1500 VA POTENTIAL FREE SWITCH CONTACT Yes RECEPTACLE (8) C13 PHASE (INPUT) 1 PACKAGE CONTENTS UPS|Network Management Card|(2) IEC-IEC output cables|USB cable|Serial cable|(2) brackets for 19’ mounting|(2) Rack-mounting kit|(2) Supports for tower mounting|Cable locking system|Safety instructions|Quickstart guide NOISE LEVEL <35 dB at 1 meter FEED TYPE 1 RUNTIME GRAPH View runtime graph USER INTERFACE Multilingual graphical LCD display RACK SIZE 2U VOLTAGE 230V HOT SWAP POWER No TEMPERATURE RANGE 0° to 40°C (32° to 104°F) ETHERNET INTERFACE Yes PROTOCOL SNMP COMMUNICATION USB port (HID compliant)|Serial port (RS232)|Mini terminal block for remote On/Off|Mini-terminal block for remote power off|Mini-terminal block for output relay|Dry contacts (3 outputs, 1 input, optocoupler, DB9) RELATIVE HUMIDITY 0-96% non-condensing RACK MOUNTING KIT Yes OUTPUT FREQUENCY 50/60 Hz RUNTIME AT FULL LOAD 10 min TYPE OF INTERFACE Other PRIMARY FREQUENCY - MIN 40 Hz OUTPUT NOMINAL VOLTAGE 230V default (200/208/220/230/240V) EXPANSION SLOTS One slot, network card included INPUT VOLTAGE RANGE 176-276 V (100-276 V with derating) NOMINAL FREQUENCY 50/60 Hz PRIMARY FREQUENCY - MAX 70 Hz ALTITUDE 3000 m
