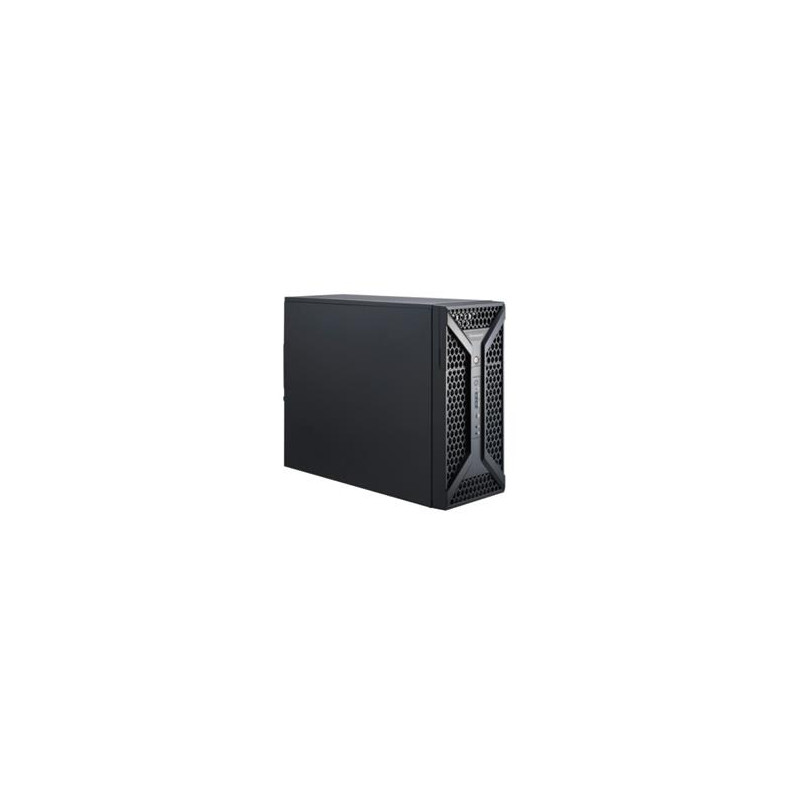

SUPERMICRO Mid-Tower 4x 3,5" fixed HDD, 2x 5,25", USB-C, 668W (80PLUS Platinum)
Mid-tower skříň s rotovatelnou HDD klecí pro 4x 3,5" disky, 2x 5,25" externí sloty a USB-C porty. Tichá (>21dB), s bezpečnostním zámkem a účinným 668W napájením (80PLUS Platinum). Vhodná pro Micro-ATX základní desky.
8 035 Kč bez DPH 6 640 Kč
Popis produktu
Key Features
- 90° Rotatable HDD Cage
- Whisper-Quiet (<21dB)
- Kensington Lock Security
- Front I/O Ports: 2x USB 3.0 1xType C Line out jack & Microphone jack
- 1x Optional Front 12cm (1850 RPM) PWM Fan
- Mid-Tower Chassis Supports Micro-ATX Motherboard, Sizes – E-ATX/ATX/Micro ATX
- 668W Platinum Level Certified High-Efficiency Power Supply
- 1x Rear 12cm (1850 RPM) PWM Fan
- 2x 5.25" External HDD Drive Bays & 4x 3.5" Internal HDD Drive Bays
- Security door for M14&M28 Mobile Racks
|
|
| Standard Parts List | |||
| Part Number | Qty | Description | |
| Bracket | MCP-250-73201-0N | 1 | SC732 PS2 Power Supply Bracket |
| Cable(s) | CBL-0084L | 1 | 16PIN FRONT CTRL SPLIT CONVECTOR 6",PB FREE |
| Cable(s) | CBL-CDAT-0560 | 1 | Audio Cable HD / AC97 -80cm, 28AWG,HF,RoHS/REACH,PBF |
| Cable(s) | CBL-CDAT-0680-55 | 1 | [NR]NCSI,2x10F to 2x10F,IDC,PH1.27,55cm,shield,28AWG,RoHS |
| Cable(s) | CBL-CUSB-0860 | 1 | USB 3.0,INT,20 PIN/F TO 20PIN/F,60CM,30/26AWG |
| Cable(s) | CBL-CUSB-0999 | 1 | USB3.2 Gen2X2 TypeC INT 20M to USB3.2 TypeC 24F,45CM,30AWG,R |
| Cable(s) | CBL-PWCD-0160-IS | 1 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH |
| Fan(s) | FAN-0124L4 | 1 | 12 CM x12 CM fan |
| Front Bezel | MCP-210-73503-0B | 1 | |
| Front Bezel | MCP-210-73504-0B | 1 | |
| Front Panel | FPB-FP735 | 1 | Front control board for CSE735,RoHS |
| Power Supply & Accessory | PWS-668-PQ | 1 | PS2 668W Multi-Output 80Plus Platinum Power Supply with 24pi |
| Optional Parts List | |||
| Part Number | Qty | Description | |
| 2.5" HDD Bracket | MCP-220-73201-0N • |
- | HDD Cage (4x Internal 2.5" fixed HDD bays) |
| Fan Kit | FAN-0124L4 • |
- | 12 CM x12 CM fan |
| Heatsink / Retention | N/A | - | Please refer to our Thermal Components Matrix |
| Mobile Rack | M14TQC | - | |
| M28SAB | - | ||
| M28SACB | - |
| Servers (for CSE-735D4-668B) |
| SYS-530A-IL |
= Most optimized Chassis for SuperServer Configuration
Mid-tower skříň s rotovatelnou HDD klecí pro 4x 3,5" disky, 2x 5,25" externí sloty a USB-C porty. Tichá (>21dB), s bezpečnostním zámkem a účinným 668W napájením (80PLUS Platinum). Vhodná pro Micro-ATX základní desky.
