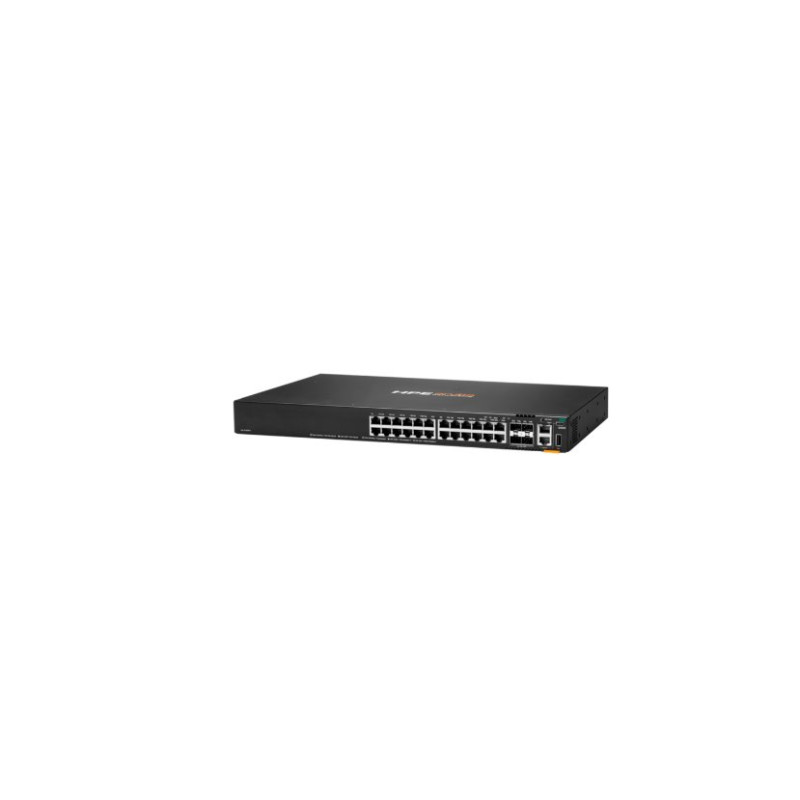

HPE ANW 6200F 24G 4SFP+ Sw
The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. What's New Enterprise-class connectivity with support for ACLs, robust QoS, and common pr
60 314 Kč bez DPH 49 846 Kč
Technické parametry
PoE power budget (W)
Nevztahuje se
PoE
Ne
PoE Out standard
Nepodporuje
PoE In standard
Nepodporuje
Počet LAN portů
24x
HDMI (počet)
0
Konektor DisplayPort
Ne
DP/mini DP (počet)
0
Konektor HDMI
Ne
Obsahuje switch
Ano
Provedení switche
Do racku
Počet SFP+ portů
4
Optika
Ano
POE
Ne
Rychlost LAN max.
1 Gbit/s
Management
Managed switch
Popis produktu
The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks.
What's New
Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
Up to 384 ports of scalability with 8-member VSF stacking. 24 and 48-port fixed and modular switches can stack together with easy to deploy through the CX Mobile app.
Models include modular switches with 1/10 GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10 GbE SFP+ or 1 GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
Intelligent monitoring and visibility via HPE Aruba Networking CX Network Analytics Engine. HPE Aruba Networking Switch Multi-Edit Software support for automation, configuration and verification.
Dynamic Segmentation enables secure access for users and IoT.
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
Differentiator24x ports 10/100/1000BASE-T Ports
4x 1/10G SFP ports; PHY-less
1x USB-C Console Port
1x OOBM
1x USB Type-A Host port
1x RJ-45 Console Port
Fixed power supply
Fixed fans
Power consumption59W at 230 VAC
Input voltage100V-120V/200V-240V
Ports24x ports 10/100/1000BASE-T Ports
4x 100M/1/10G SFP+ ports
1x USB-C Console Port
1x RJ-45 Console Port
1x OOBM
1x USB Type-A Host port
Latency1 Gbps: 2.28 µSec
10 Gbps: 1.46 µSec
Routing/switching capacity128 Gbps
Stacking capabilities8 members
ThroughputUp to 95.2 Mpps
Memory and processorCPU: Quad Core ARM Cortex™ A72 at 1.8 GHz
Memory and Flash: 8 GB DDR4 16 GB eMMC
Power supply nameFixed power supply
WarrantyLimited lifetime warranty. See the warranty duration.
Detailed product descriptionThe HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks.
Weight5.10 kg, max, depending on model (11.24 lbs, max, depending on model)
Dimensions4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)
What's New
Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
Up to 384 ports of scalability with 8-member VSF stacking. 24 and 48-port fixed and modular switches can stack together with easy to deploy through the CX Mobile app.
Models include modular switches with 1/10 GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10 GbE SFP+ or 1 GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
Intelligent monitoring and visibility via HPE Aruba Networking CX Network Analytics Engine. HPE Aruba Networking Switch Multi-Edit Software support for automation, configuration and verification.
Dynamic Segmentation enables secure access for users and IoT.
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
Differentiator24x ports 10/100/1000BASE-T Ports
4x 1/10G SFP ports; PHY-less
1x USB-C Console Port
1x OOBM
1x USB Type-A Host port
1x RJ-45 Console Port
Fixed power supply
Fixed fans
Power consumption59W at 230 VAC
Input voltage100V-120V/200V-240V
Ports24x ports 10/100/1000BASE-T Ports
4x 100M/1/10G SFP+ ports
1x USB-C Console Port
1x RJ-45 Console Port
1x OOBM
1x USB Type-A Host port
Latency1 Gbps: 2.28 µSec
10 Gbps: 1.46 µSec
Routing/switching capacity128 Gbps
Stacking capabilities8 members
ThroughputUp to 95.2 Mpps
Memory and processorCPU: Quad Core ARM Cortex™ A72 at 1.8 GHz
Memory and Flash: 8 GB DDR4 16 GB eMMC
Power supply nameFixed power supply
WarrantyLimited lifetime warranty. See the warranty duration.
Detailed product descriptionThe HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks.
Weight5.10 kg, max, depending on model (11.24 lbs, max, depending on model)
Dimensions4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)
