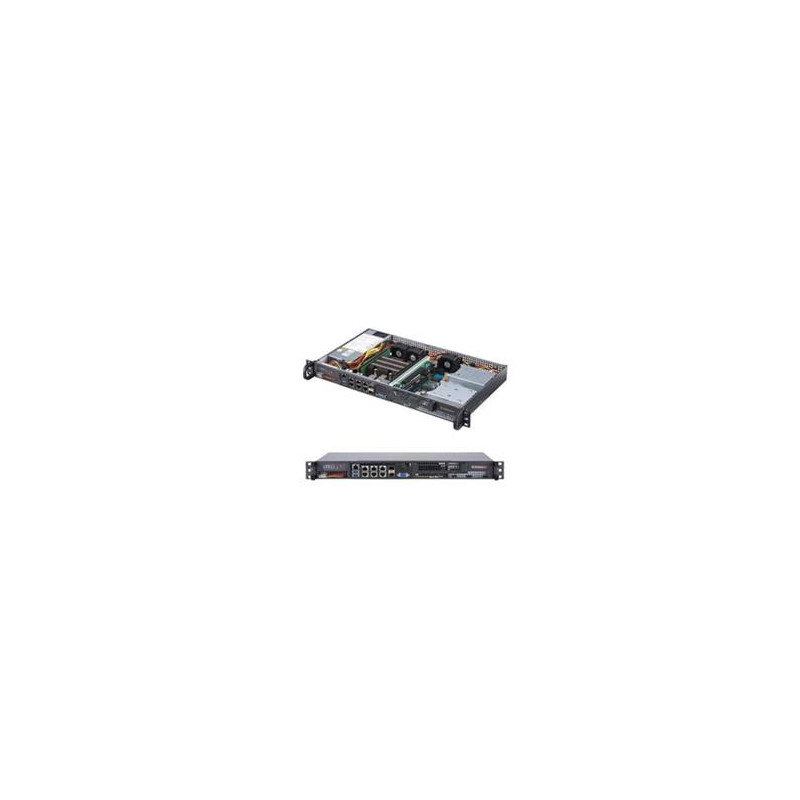

SUPERMICRO 1U server D-2146NT(8c 16t), 2x SO-DIMM ECC, 1x3.5 4x2.5(opt) SATA3, 4x1GbT,2x10GbT,2x10GbSFP,200W, IPMI

Výkonný 1U server s CPU Intel® Xeon® D-2146NT 8 jádry a 16 vlákny, podporující 2x SO-DIMM ECC paměť a variabilní úložné možnosti. Nabízí širokou konektivitu s 4x 1GbT, 2x 10GbT a 2x 10Gb SFP.
Na objednávku
43 637 Kč bez DPH 36 063 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
1313211
SYS-5019D-FN8TP
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu

Intel_Select_Solution.jpgKey Features? Network Security Appliance
? Universal Customer Premise
   Equipment (uCPE)
? Software Defined WAN (SD-WAN)
? NFV Edge Computing Server
? Virtualization Server
? IoT Edge Computing / Gateway




1. Intel® Xeon® processor D-2146NT, 8-Core, 16 Threads, 80W

2. 1 Internal 3.5" or 4 Internal 2.5" drive bays

3. 1 M.2 slot M key for SSD, 2242/8,  1 M.2 B Key for SSD/ WAN card,  1 Mini-PCI-E with mSATA Support,  1 PCI-E 3.0 x8 slot

4. Up to 512GB ECC LRDIMM,     up to 256GB ECC RDIMM     DDR4-2666Mz; in 4 DIMM slots

5. 4x 1GbE, 2x 10GBase-T, 2x 10G SFP+     and 1 dedicated LAN for IPMI 2.0

6. 1 VGA, 2 USB 3.0

7. 3x 40x28mm 4-PIN PWM fans

8. 200W Low-noise AC-DC power supply

9. Built in Intel QAT up to 40Gbps Crypto/Compression

Specifications

Product SKUs

SYS-5019D-FN8TP
  • SuperServer 5019D-FN8TP (Black)

Motherboard


Super X11SDV-8C-TP8F

Processor/Cache

CPU
  • Intel® Xeon® processor D-2146NT,
    CPU TDP support 80W
Cores / Cache
  • 8 Cores, 16 Threads

System Memory

Memory Capacity
  • Up to 512GB DDR4 ECC LRDIMM
  • Up to 256GB DDR4 ECC RDIMM
  • 4 DIMM slots
Memory Type
  • 2666/2400/2133MHz ECC DDR4 ECC LRDIMM and ECC RDIMM
DIMM Sizes
  • 128GB, 64GB, 32GB, 16GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors
      (using ECC memory)

On-Board Devices

SATA
  • SATA3 (6Gbps) ports via SoC controller
Network Controllers
  • Dual 10G SFP+ via SoC
  • Quad 1GbE with Intel I350-AM4
  • Dual 10GBase-T with Intel X557
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • Aspeed AST2500 BMC

Input / Output

SATA
  • 4 SATA3 (6Gbps) ports (SATA/SAS HDD/SSD)
LAN
  • 2 10G SFP+ ports
  • 4 RJ45 1GbE LAN ports
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
VGA
  • 1 VGA port
Others
  • TPM 2.0 header

Chassis

Form Factor
  • 1U Rackmount
Model
<td background="https:" class="border_b description" style="border-bottom:#0

Dimensions and Weight

Height
  • 1.7" (43mm) / 6.1" (155mm) - pkg.
Width
