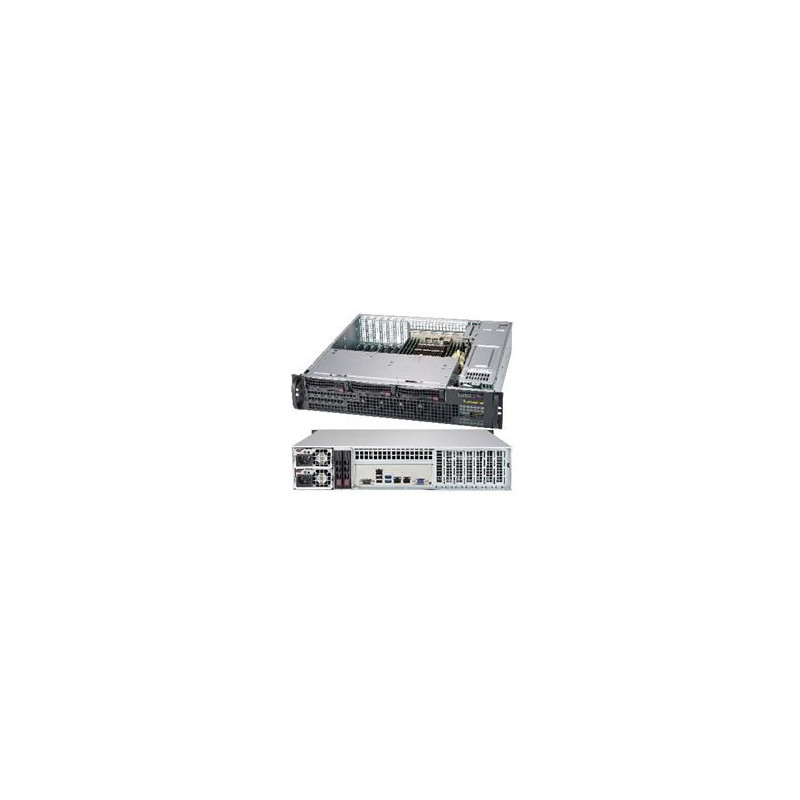

SUPERMICRO 2U short depth chassis 3x 3,5" HS SAS SATA, DVD, 2x800W (titanium), WIO
20 435.32 Kč s DPH16 888.69 Kč bez DPH
vč. ekologické daně a autorského poplatku
Chcete lepší cenu? Poptejte zboží.
Není skladem
Termín doručení:
Na poptávku
Popis
- 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO, 12.8" x 13.4" motherboards
- 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO, optional 2 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards
- 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
- 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
- 4 full height expansion slot(s) (Riser Card Required), 3 low-profile expansion slot(s) (Riser Card Required)
- 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
Optional 1 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
|
|
Standard Parts List | |||
Part Number | Qty | Description | |
Air Shroud | MCP-310-29019-0N | 1 | SC823M Intel DP X10 Universal Mylar Air Shroud, 12x13MB |
HD Backplane | BPN-SAS3-825MTQ-P | 1 | 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD |
Cable(s) | CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF |
Cable(s) | CBL-0160L | 2 | US POWER CORD 16AWG, PB FREE |
Part(s) | MCP-120-00061-0N | 4 | Blank FH L-bracket (5x5 square hole) |
Part(s) | MCP-120-00062-0N | 3 | Blank LP L-bracket (5x5 square hole) |
Part(s) | MCP-230-00011-00 | 1 | Top cover for SC825M |
Part(s) | MCP-240-00146-0N | 1 | 2U WIO Half Length riser card bkt for SC825, 826, 213, 216,RoHS/REACH |
Part(s) | MCP-240-00153-0N | 1 | Optional supporting 823M/825M riser bracket for X10SRW |
Part(s) | MCP-240-82513-0B | 1 | SC825M front window |
Part(s) | MCP-290-82516-0N | 1 | DVD and USB holder for SC825M |
CD-ROM & Accessory | MCP-290-00041-0B | 1 | Black DVD dummy cover for SC825M |
Fan(s) | FAN-0156L4 | 4 | 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH |
Front Panel | FPB-FP836-D | 1 | Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836 |
Cooling Fan & Accessory | MCP-320-82502-0B | 1 | Fan Tray for Five 4056 Fans, for 825M |
Cooling Fan & Accessory | MCP-340-00035-0B | 1 | Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) |
Drive Tray(s) | MCP-220-00075-0B | 3 | Black gen 5.5 hot-swap 3.5" HDD tray |
Drive Tray(s) | MCP-220-82501-0N | 1 | HDD cage housing 3 trays for SC825M |
Power Distributor | PDB-PT825-S8824 | 1 | SC825 24PIN REDUNDANT PWR DISTRIBUTOR W/ SHORT CBL |
Power Supply & Accessory | PWS-802A-1R | 2 | 1U 800W 100-240Vac/47-63Hz, and DC240 input |
Mounting Rail(s) | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2";W |
Mounting Rail(s) | MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack |
Rear Window | MCP-240-82609-0N | 1 | SC826B, 216B WIO rear window |
Optional Parts List | |||
Part Number | Qty | Description | |
Cable | CBL-SAST-0948 • | - | MINI SAS HD-4 SATA,12G,INT,60CM,60CM SB,30AWG |
CBL-0157L • | - | 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF | |
CBL-0044L • | - | SATA CABLE 57.5CM FLAT S-S PBF. 26AWG flat | |
Front USB | MCP-290-82502-0B | - | USB Tray For 825M |
HDD Kit | MCP-220-82616-0N • | - | 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B) |
MCP-220-81504-0N • | - | 12G 2.5-in Hot-swap Slim Floppy Size Drive Kit w/Status LED | |
MCP-220-81506-0N • | - | 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED | |
Rail | MCP-290-00058-0N • | - | Short rail set, quick release, 19.6"~26.9" Extendable Length |
SATA DVD Kit | DVM-PNSC-DVD-SBT3 | - | BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH |
