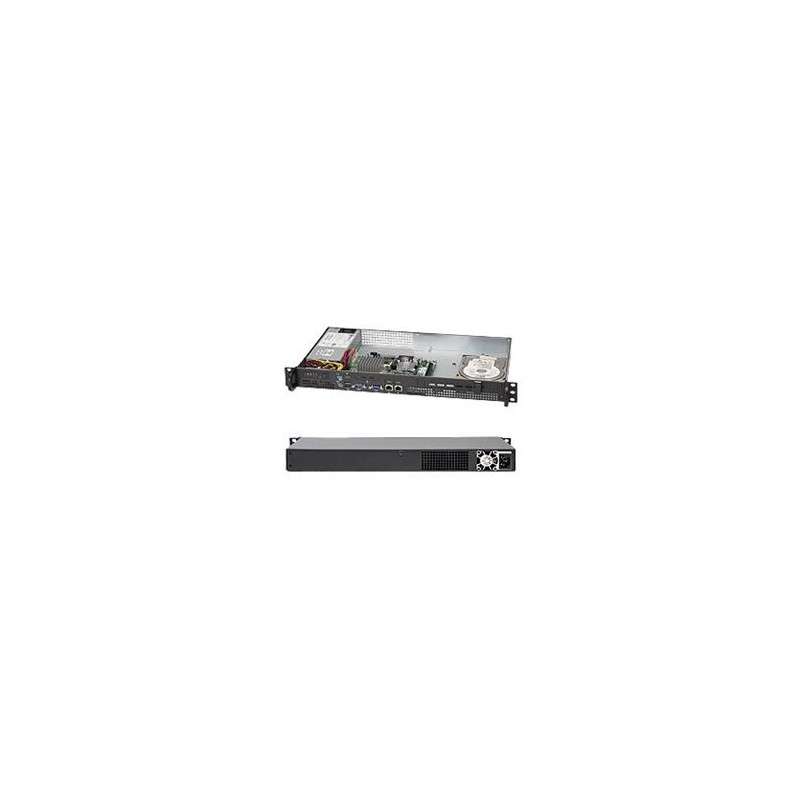

SUPERMICRO mini1U chassis Přední I O, 1x 3,5" fixed HDD (nebo s MCP-220-00044-0N 2x2,5"), 200W, pro Atom MB

Product SKUs CSE-503L-200B SuperChassis 503L-200B Form Factor 9.8" Mini 1U chassis support for maximum motherboard size: Micro-ATX 9.6" x 9.6" Processor Support Intel® Atom™ processors Dimensions Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 9.8" (249 mm) Gross Weight 10 lbs (4.54 kg) Packaging (W x H x L) 25.8" (655 mm) x 6.1" (155 mm) x 18.3" (465 mm) Available Color Black Expansion Slots 1x full-height half-length PCI expansion slot (Optional) (Riser Card Required) Drive Bays 1 x 3.5" fixed drive bay Or optional 2 x 2.5" Internal Drive Or optional 1 x 2.5" Internal Drive Bay with 1x Full-height, Half-length PCI SAS or enterprise SATA HDD only recommended Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED Ports Standard System I/O (Mouse, Keyboard, 2x USB Video, COM, LPT, LAN) Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 60°C (-40°F - 140°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 200W Multi-output power supply with 20pin, YM-5201D Power Efficiency 82% Total Output Power and Input 200W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 192.8 x 76.2 x 40.3 mm Output Type 20pin ATX -12V Max: 0.8A / Min: 0A +12V Max: 15A / Min: 1A (100Vac - 240Vac) +5V Max: 16AA / Min: 0.3A +3.3V Max: 17A / Min: 0.5A +5Vsb Max: 2A / Min: 0.1A +12Vsb Max: NAA Certification N/A Regulatory (Power Supply) Power Supply Safety / EMC CE/EMC FCC class B TUV/CB UL/CUL
