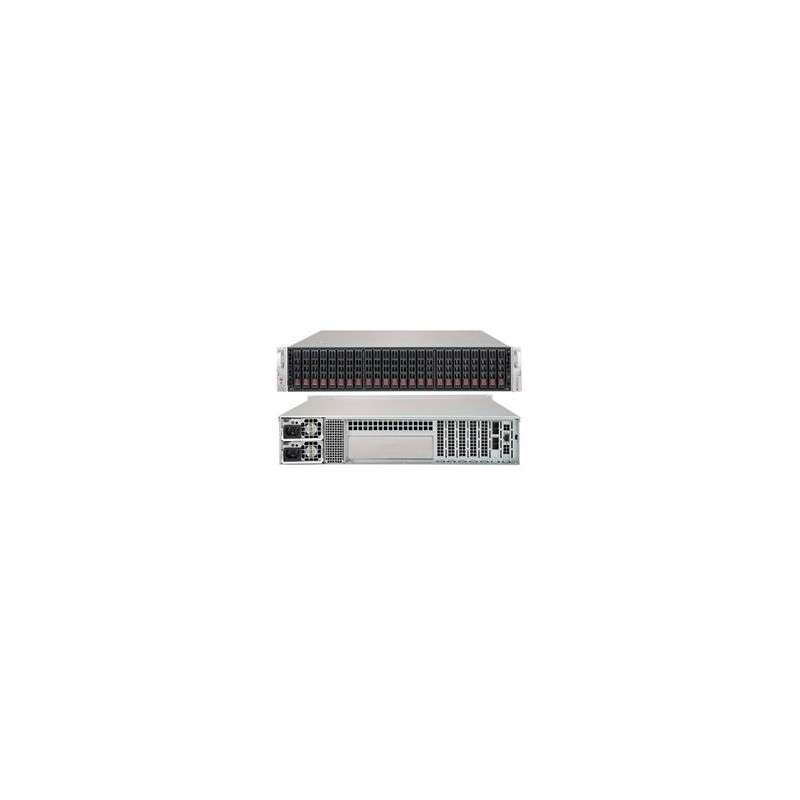

SUPERMICRO 2U JBOD chassis 24x 2,5" HS SAS SATA (dual expander 8x SFF 8644 + IPMI), 2x740W (80PLUS Platinum)

production quantities. MOQ may apply CSE-216BE2C-R741JBOD SuperChassis 216BE2C-R741JBOD Form Factor 2U JBOD storage chassis Dimensions Height 3.5" (89 mm) Width 17.2" (437 mm) Depth 24.8" (630 mm) Net Weight 31 lbs (14.06 kg) Gross Weight 61 lbs (27.67 kg) Packaging (W x H x L) 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm) Available Color Black Drive Bays 24 x 2.5" hot-swap HDD bay for JBOD solution Qualified SAS Controllers AOC-SAS3-9300-8E: AOC-SAS3-9380-8E: Backplane 24-port 2U SAS3 12Gbps dual-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature) Front Panel Buttons Power On/Off button System Reset Button Unit Identification (UID) button LEDs 1 Network Activity LEDs Systems Cooling Fans 3 x 80x38mm hot-swap cooling fan(s) System Monitoring IPMI Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 740W Redundant Platinum Power Supply W/PMbus Power Efficiency 94% Total Output Power and Input 740W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 336 x 76 x 40 mm Output Type Backplanes (gold finger) -12V Max: NAA +12V Max: 61.7A / Min: 0.2A (100Vac - 240Vac) +5Vsb Max: 4A / Min: 0A +12Vsb Max: NAA Power Distributor PDB-PT216-2824 O/P: 12V/100 +5V Max: 30 +3.3V Max: 24 -12V Max: 0.6 Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC FCC class A TUV/CB UL/CUL Components ? Standard Parts List Part Number Qty Description Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13 HD Backplane BPN-SAS3-216EL2 1 24-port 2U SAS3 12Gbps dual-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature) Control Board CSE-PTJBOD-CB3 1 JBOD chassis power control board with IPMI remote on/off feature Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF Cable(S) CBL-0088 3 10.5", 4 PIN MIDDLE FAN POWER EXTENSION (PWM) Cable(S) CBL-0160L 2 US POWER CORD 16AWG, PB FREE Cable(S) CBL-0182L 1 PWR EXTENSION.HDD TO RIGHT ANGLE HDD,PBF Cable(S) CBL-0217L 1 16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF Cable(S) CBL-CDAT-0601 1 4 Pin to 4 Pin I2C cable, 50cm, 26AWG Cable(S) CBL-NTWK-0587 1 INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD Cable(S) CBL-SAST-0531 4 Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s Cable(S) CBL-SAST-0532 4 Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s Fan(s) FAN-0204L4 3 80x80x38 mm, 7K RPM, Middle Cooling Fan w/ New Plastic Mater Front Panel FPB-FP826-D 1 Front control board Dual color LED(FP826-D)forSC826,213,216,219 Front Panel TB826 1 Front panel adaptor board (TB826) forSC826,213,216,219 Drive Tray(s) MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5 Drive Tray(s) MCP-220-00047-0B 24 Black gen 3rd hot-swap 2.5inch HDD tray Power Distributor PDB-PT216-2824 1 PDB with 23pairs input connectors for SC216B Part(s) MCP-260-00011-0N 1 I/O shield without any opening Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W Mounting Rail(s) MCP-410-00007-0N 1 Rail screw bag Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF Optional Parts List Part Number Qty Description Cable CBL-SAST-0573 - External mini SAS HD to external mini SAS HD cable 28AWG (1M) Cable CBL-SAST-0690-1 - MINI SAS HD,12G,EXT,2M,30AWG,RoHS Cable CBL-SAST-0677 - 3m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
