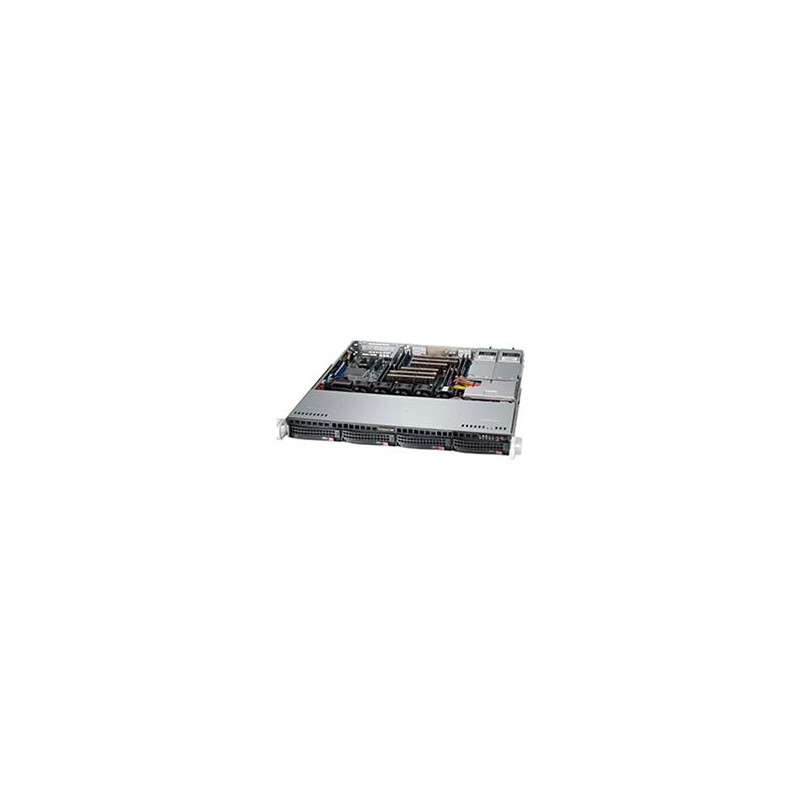

SUPERMICRO 1U chassis 4x 3,5" HS SAS SATA, 2x800W (Platinum) pro X11DPLi

Product SKUs CSE-813MF2TQC-R804CB SuperChassis 813MF2TQC-R804CB Form Factor 1U chassis, support motherboard sizes: ATX 12" x 10" and Micro ATX 9.6" x 9.6" Processor Support Dual and Single Intel® and AMD processors Dimensions Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 19.98" (507 mm) Gross Weight 33.5 lbs (15.2 kg) Packaging (W x H x L) 23.4" (594 mm) x 8.5" (216 mm) x 29.7" (754 mm) Available Color Black Expansion Slots 1 full height expansion slot(s) Drive Bays 4 x 3.5" hot-swap SAS/SATA SAS or enterprise SATA HDD only recommended Backplane 1U 4-Port 12Gbps Backplane Support 4x3.5 Peripheral Drives 1 x slim DVD-ROM drive bay Optional 1 x USB + COM port tray Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs HDD activity LED Power Status LED System Information LED Systems Cooling Fans 4 x 40x28mm PWM fan(s) Optional 2 x fans for AOC cooling Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 800W 1U redundant power supply Power Efficiency 94% Total Output Power and Input 750W with Input 100 - 127Vac 800W with Input 200 - 240Vac 800W with Input 230 - 240Vdc AC Input Frequency 50-60Hz Dimensions (L x W x H) 220 x 54.5 x 40.25 mm Output Type Backplanes (gold finger) +12V Max: 62.5A / Min: 0.5A (100Vac - 127Vac) Max: 66.6A / Min: 0.5A (200Vac - 240Vac) Max: 66.6A / Min: 0.5A (230 - 240) +5Vsb Max: 4A / Min: 0A Power Distributor PDB-PT813M-2424 O/P: 120/62 +5V Max: 25 +3.3V Max: 25 -12V Max: 0.6 Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC UL/CB Components ? Standard Parts List Part Number Qty Description HD Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5 Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF Cable(S) CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH CD-ROM & Accessory CSE-PT93L-B 1 Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS Fan(s) FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH Front Panel FPB-FP813-D 1 Front control board dual color for SC815,SC813M (C) Cooling Fan & Accessory MCP-320-00060-0N 1 Slim Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12"x10.15") Drive Tray(s) MCP-220-00075-0B 4 Black gen 5.5 hot-swap 3.5" HDD tray Power Distributor PDB-PT813M-S2424 1 Power distributor with shorter 24pin for SC813M chassis Part(s) MCP-340-00001-01 2 Dummy fan 40x28mm Part(s) MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF Power Supply & Accessory PWS-804P-1R 2 1U 800W 100-240VAC/50-60Hz, and DC240V input Power Supply & Accessory MCP-250-00016-0V 1 Redundant Silver plastic PDB cover for SC813M,113M Mounting Rail(s) MCP-290-00102-0N 1set Outer rail, quick-release type, 25.6" to 33.05" Mounting Rail(s) MCP-290-00108-0N 1set Inner rail, front, short, quick-release type Mounting Rail(s) MCP-290-00110-0N 1set Inner rail, extension (quick) for 1U 17.2 Rear Window MCP-240-00086-0N 1 STD rear window for SC113 redundant PWS Optional Parts List Part Number Qty Description Air Shroud MCP-310-18009-0N - 813M/113M/811/111/512 UP X8STi .X7 mylar air shroud, 12x9.6MB Air Shroud MCP-310-18003-0N - SC813M/113M/512F/811 Intel DP X8.X7 mylar air shroud 12x10MB Air Shroud MCP-310-19009-0N - SC811, SC111, SC813M, SC113M, SC512F-280/350/410/520/600, SC513L-410/420, DP X9DBL ,X9 Mylar Air Shroud, 12"x10" MB Front Bezel CSE-PTFB-813LB - BLACK SC813 FRONT BEZEL, PB FREE Mounting Rail MCP-290-00056-0N - Short outer rail, /quick, optional for 1U 17.2 Mounting Rail MCP-290-00052-0N-BULK - Outer rail, /quick, optional for 1U 17.2 Peripheral Drive(s) MCP-220-00110-0B - Black USB/COM port tray in slim DVD bay,RoHS/REACH,PBF Adaptor HDD carrier MCP-220-00043-0N - Black hotswap gen 4 3.5 to 2.5 HDD tray Riser Card Bracket MCP-120-00031-0N - Riser card bracket for SC812,813,813M,815,111,113,113M IO shield MCP-260-00024-0N - 1U I/O shield for X8 server MB (3rd LAN + 4xLAN) Servers (for CSE- 813MF2TQC-R804CB) 6019P-MTR
