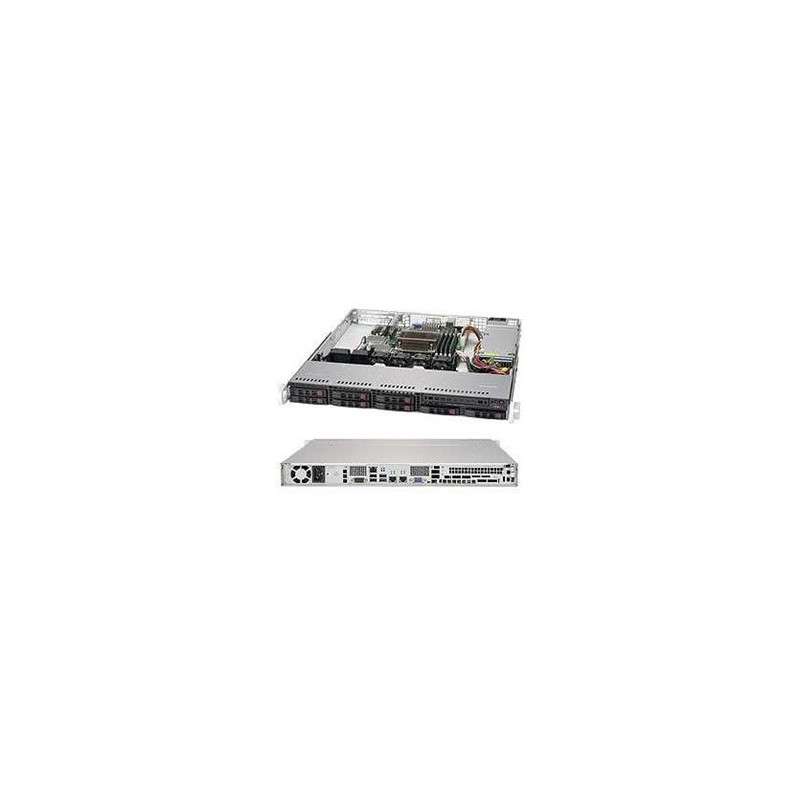

SUPERMICRO 1U chassis 8x 2,5" HS SAS3 SATA (2x NVMe), 350W (80PLUS Platinum)

Product SKUs CSE-113MFAC2-341CB SuperChassis 113MFAC2-341CB Form Factor 1U Chassis for motherboard support size: (12" x 10") (ATX 12" x 10") Processor Support Single Intel® and AMD processors Dimensions Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 19.98" (507 mm) Net Weight 18.5 lbs (8.39 kg) Gross Weight 29.5 lbs (13.38 kg) Packaging (W x H x L) 24" (610 mm) x 8.3" (211 mm) x 30" (762 mm) Available Color Black Expansion Slots 1 full-height & full-length expansion slot(s) Drive Bays 8 x 2.5" hot-swap SAS/SATA drive bay Backplane 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices Peripheral Drives Optional 1 x slim DVD-ROM drive bay Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs HDD activity LED Power Status LED Unit Identification (UID) LED Systems Cooling Fans 4 x 40x28mm PWM fan(s) Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 340W Multi-output power supply W/PMbus, Platinum level Power Efficiency 93% Total Output Power and Input 340W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 279.4 x 76 x 40.4 mm Output Type 24pin ATX -12V Max: 0.5A / Min: 0A +12V Max: 28A / Min: 0.5A (100Vac - 240Vac) +5V Max: 16A / Min: 0.5A +3.3V Max: 15A / Min: 0.5A +5Vsb Max: 3A / Min: 0A +12Vsb Max: NAA Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC CE/EMC FCC class B TUV/CB UL/CUL
