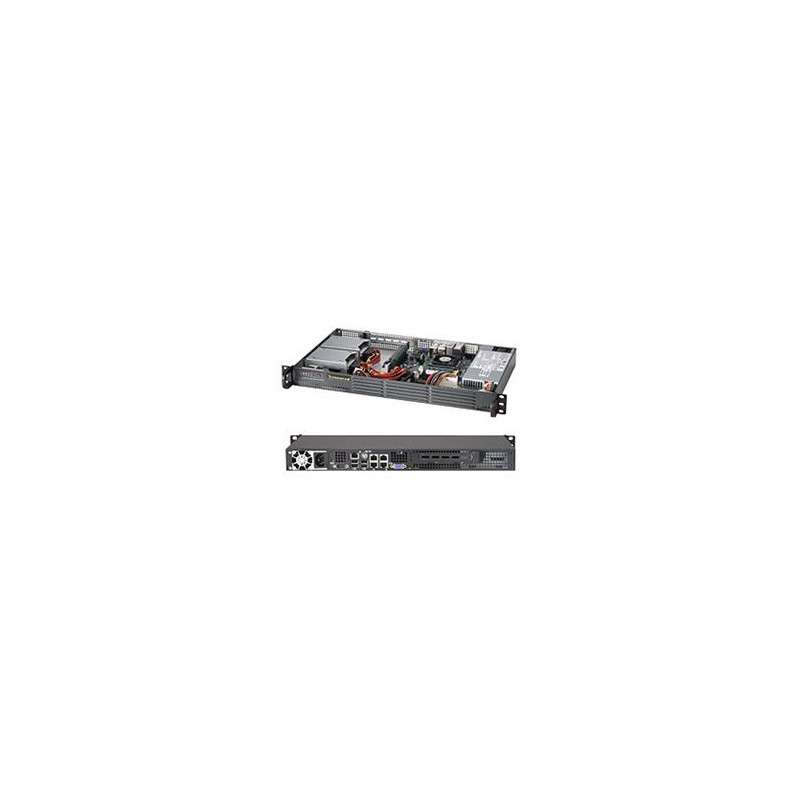

SUPERMICRO mini1U chassis, 2x 3,5" fixed HDD (nebo s MCP-220-00044-0N 4x2,5"), 200W (Gold)

Product SKUs CSE-504-203B SuperChassis 504-203B Form Factor 9.8" Mini 1U chassis support for maximum motherboard size: Mini-ITX 6.75" x 6.75" Processor Support 3rd Generation Intel® Core™ i7/i5/i3, up to 35W Dimensions Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 9.8" (249 mm) Gross Weight 10 lbs (4.54 kg) Packaging (W x H x L) 25.8" (655 mm) x 6.1" (155 mm) x 18.3" (465 mm) Available Color Black Expansion Slots Up to 1x full-height, half-length PCI expansions slot* *NOTE: Riser Card Required, See 'Drive Bays' for possible configurations Drive Bays 1 x 3.5" Internal Drive Bay with 1 Full-height, Half-length PCI Or 2 x 3.5" Internal Drive Bay Or 2 x 2.5" Internal Drive Bay with 1 Full-height, Half-length PCI Or 4 x 2.5" Internal Drive Only SAS or enterprise SATA HDD recommended Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED Ports 1x VGA, IPMI, 4xLANs, 1x COM, 4xUSB, 1xKeyboard/Mouse Systems Cooling Fans 1 x High-efficiency power supply with thermal control fan(s) Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 60°C (-40°F - 140°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 200W Multi-output power supply Gold level w/20pin Power Efficiency 91% Total Output Power and Input 200W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 192 x 76 x 40.3 mm Output Type 20pin ATX -12V Max: 0.5A / Min: 0A +12V Max: 16A / Min: 0.1A (100Vac - 240Vac) +5V Max: 8AA / Min: 0.1A +3.3V Max: 8A / Min: 0.1A +5Vsb Max: 2A / Min: 0A +12Vsb Max: NAA Certification Gold Certified Gold Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL Components ? Standard Parts List Part Number Qty Description Cable(S) CBL-0087 1 CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM Cable(S) CBL-0260L 1 US POWER CORD 18 AWG, PBF Front Panel FPB-FP813-D 1 Front control board dual color for SC815,SC813M (C) Part(s) MCP-260-00064-0B 1 1U I/O shield for X9/X10 STD Server I/O use in SC510, SC505, SC504 with EMI Gasket,RoHS/REACH,PBF Part(s) MCP-290-51001-0N 1 SC510 card retainer Power Supply & Accessory PWS-203-1H 1 1U 200W Multi-output 80Plus Gold PWS Optional Parts List Part Number Qty Description 2.5" HDD Bracket MCP-220-00051-0N - 2.5" HDD bracket for 1 x 2.5" HDD 2.5" HDD Bracket MCP-220-00044-0N - 2.5" HDD bracket for 2 x 2.5" HDD Cable CBL-0080L - big 4 pin to SATA POWER ADAPTER CABLE 6 Heatsink / Retention SNK-P0049A4 - 1U Active CPU Heat Sink for Intel Sokcet H, H2, and H3 Motherboards,RoHS/REACH,PBF IO shield MCP-260-00065-0B - 1U I/O shield for X8 STD Server I/O use in SC510, SC505, SC504 with EMI Gasket,RoHS/REACH,PBF IO shield MCP-260-00066-0B - 1U I/O shield for X9SPV-M4 use in SC510, SC505, SC504 with EMI Gasket,RoHS/REACH,PBF IO shield MCP-260-00068-0B - 1U I/O Shield for X9SCAA/-L use on SC510, SC505, SC504 chassis with EMI Gasket,RoHS/REACH,PBF IO shield MCP-260-00072-0B - 1U I/O Shield for X9SKV on SC510, SC505, SC504 with EMI Gasket,RoHS/REACH,PBF IO shield MCP-260-00076-0B - 1U I/O Shield for X10SLV-Q on SC504, 505, 510 with EMI Gasket,RoHS/REACH,PBF IO shield MCP-260-00082-0B - 1U I/O Shield for H9SKV on SC504, 505 with EMI Gasket Cooling FAN-0100L4 - 40X28MM 4-PIN PWM FAN FOR SC510 & SC511 Fan Kit MCP-320-81302-0B - Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only) Rail MCP-290-50404-0N - Optional rail kit Motherboard (for CSE- 504-203B) X9SPV-F-3610ME X9SPV-F-3217UE X9SPV-LN4F-3LE X9SPV-LN4F-3QE X9SPV-M4 X9SBAA-F X9SCAA X9SCAA-L X9SPV-M4-3QE X9SPV-M4-3UE X9SKV-B915 X10SBA-L A1SAi-2750F A1SAi-2550F X10SBA X9SKV-1125 A1SRi-2758F X10SLV-Q A1SRi-2558F X9SKV-1105 X10SDV-TLN4F X10SDV-F X11SBA-LN4F X11SBA-F X10SDV-8C-TLN4F X10SDV-8C+-LN2F X10SDV-4C-TLN2F X10SDV-6C-TLN4F X10SDV-4C-TLN4F X10SDV-6C+-TLN4F X10SDV-12C-TLN4F X10SDV-TP8F X10SDV-7TP8F X10SDV-7TP4F X10SDV-16C-TLN4F X10SDV-2C-TP8F X10SDV-2C-TP4F X10SDV-4C+-TP4F X10SDV-4C-7TP4F A1SRI-2358F X10SDV-2C-7TP4F X10SDV-2C-TLN2F X10SDV-4C+-TLN4F A2SAV A2SAV-L X11SAA A2SDi-2C-HLN4F A2SDi-H-TP4F A2SDi-H-TF A2SDi-TP8F A2SDi-LN4F A2SDi-4C-HLN4F A2SDi-12C-HLN4F A2SDi-16C-HLN4F A2SDi-8C-HLN4F A2SDV-8C-TLN5F A2SDV-16C-TLN5F A2SDV-12C+-TLN5F X11SDV-16C-TP8F X11SDV-12C-TP8F X11SDV-8C-TP8F A2SDV-8C-LN8F A2SDV-4C-LN8F A2SDV-8C-LN10PF A2SDV-4C-LN10PF X11SCL-iF X11SSV-M4F X10SDV-8C-TLN4F+ X10SDV-16C-TLN4F+ X10SDV-12C-TLN4F+ = Most optimized Chassis for SuperServer Configuration Blue color = Compatible Green color = Global SKU & Compatible Red dot & green color = Optimized + Global SKU Servers (for CSE- 504-203B) 5017P-TLN4F 5017P-TF 5017A-EF 5017A-EP 5017K-N6 5018A-LTN4 5018D-LN4T 5019S-TN4 5019A-12TN4 5019C-L
