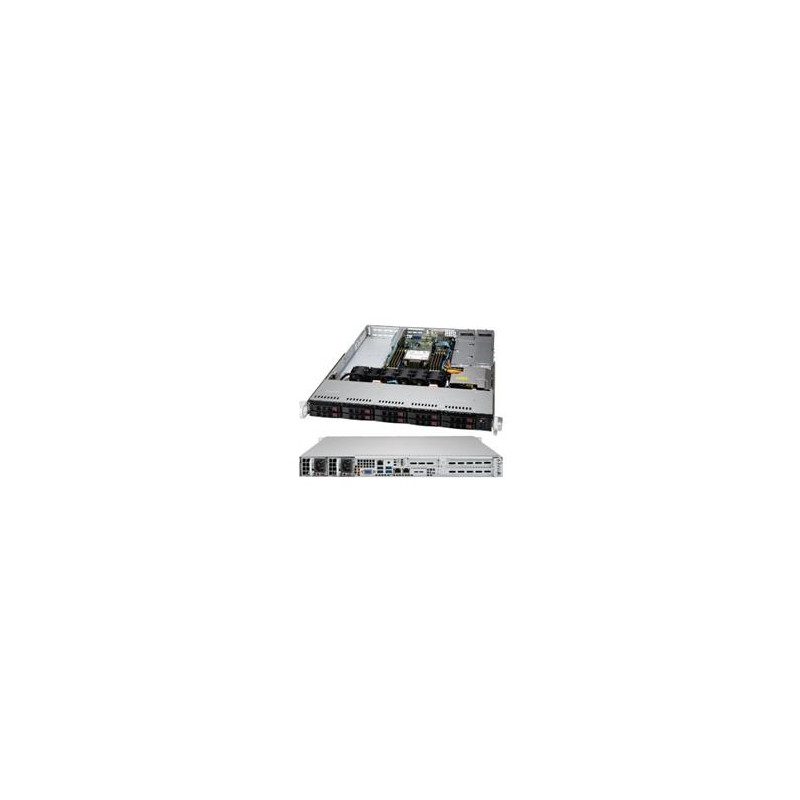

SUPERMICRO 1U chassis 10x U.2 HS NVMe (4x SATA SAS), 2x 750W, WIO

Product SKUs CSE-116AC10-R706WB3 SuperChassis 116AC10-R706WB3 Form Factor 1U Chassis, Support proprietary WIO MB size 8?x13? and up to 12.3?x13? Processor Support Dual, single Intel® / AMD processors Dimensions Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 23.5" (597 mm) Gross Weight 40 lbs (18.14 kg) Packaging (W x H x L) 24" (610 mm) x 8" (203 mm) x 32" (813 mm) Available Color Black Expansion Slots 2 full height expansion slot(s) 1 low-profile expansion slot(s) Drive Bays 10 x 2.5" hot-swap SAS3/SATA drive bay Backplane 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 10x 2.5-inch NVMe storage devices, 4 of them are SAS3/SATA3 drives compatible. Front Panel Buttons Power On/Off button Unit Identification (UID) button LEDs 2 Network Activity LEDs HDD activity LED Power Status LED Unit Identification (UID) LED Systems Cooling Fans 4 x 40x56mm counter-rotation PWM fan(s) Optional 2 x fans for AOC cooling System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width Power Efficiency 94% Total Output Power and Input 700W with Input 100 - 140Vac 750W with Input 200 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 320 x 54.5 x 40.25 mm Output Type Backplanes (gold finger) +12V Max: 58A / Min: 0.5A (100Vac - 140Vac) Max: 62A / Min: 0.5A (200Vac - 240Vac) +5Vsb Max: 3A / Min: 0A Power Distributor PDB-PT112-S2424 O/P: 12V/54 +5V Max: 25 +3.3V Max: 25 -12V Max: 0.6 Certification Platinum Certified Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class A UL/CB UL/CUL
