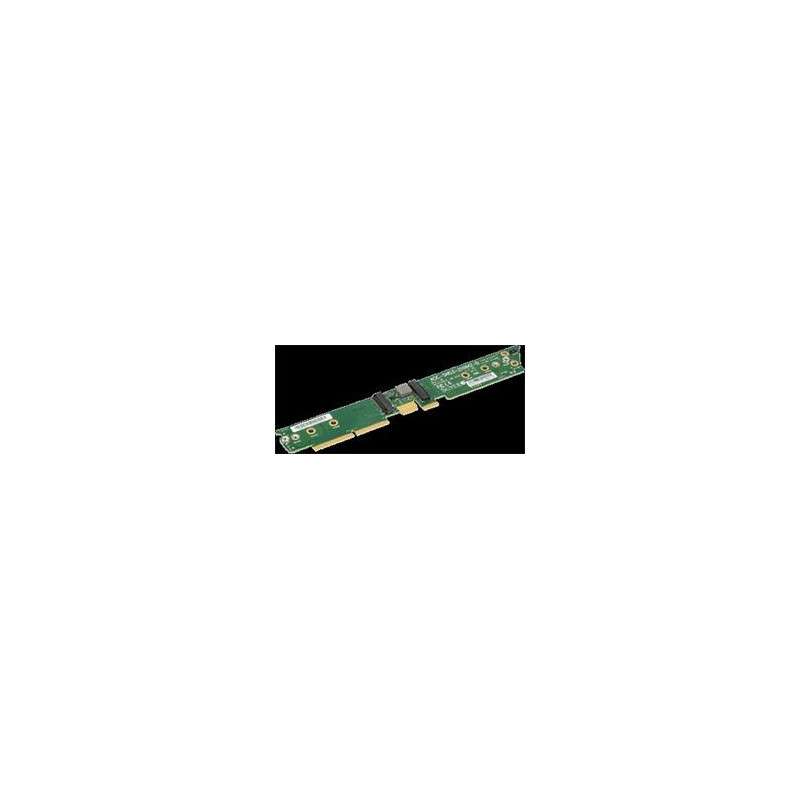

Supermicro M.2 SATA NVMe Hybrid ‘Butterfly’ Carrier Card for BigTwin

Add-on Card Supermicro M.2 SATA/NVMe Hybrid ‘Butterfly’ Carrier Card for BigTwin™ Perfectly streamlined for the BigTwin, the Supermicro ‘Butterfly Style’ SATA/NMVe M.2 Carrier Card AOC-SMG3-2H8M2-B features 2 M-key connectors for x2 NVMe or SATA M.2 SSDs. It auto-detects SATA or NVMe protocols. Both NVMe M.2 SSDs are linked to 4 lanes of PCI-E 3.0 bandwidth. User-visible LEDs are present to monitor the activities and status of each SSD. It delivers a cost effective and reliable storage solution with SATA and NVMe drives. This product is only available through Supermicro. Compliance RoHS RoHS Compliant 6/6, Pb Free Key Features ‘Butterfly Style’ Hybrid (NVMe or SATA) M.2 Carrier Card for X11 BigTwin Supports x2 M-key connectors for the following 80mm, 60mm, and 42mm lengths Auto-detects SATA or NVMe M.2 Each NVMe M.2 SSD links to a full x4 PCI-E User-visible LEDs on each SSD for Activity and Fault Supports OS boot and OS redundancy OS Support : Windows, Linux, and VMWare Operating Temp: 0° to 55°C Dimensions H x L 1.21" x 7.87" Validated Platforms Servers/Serverboards SYS-2029BT-HNC0R H11DST-B X11DPT-B
