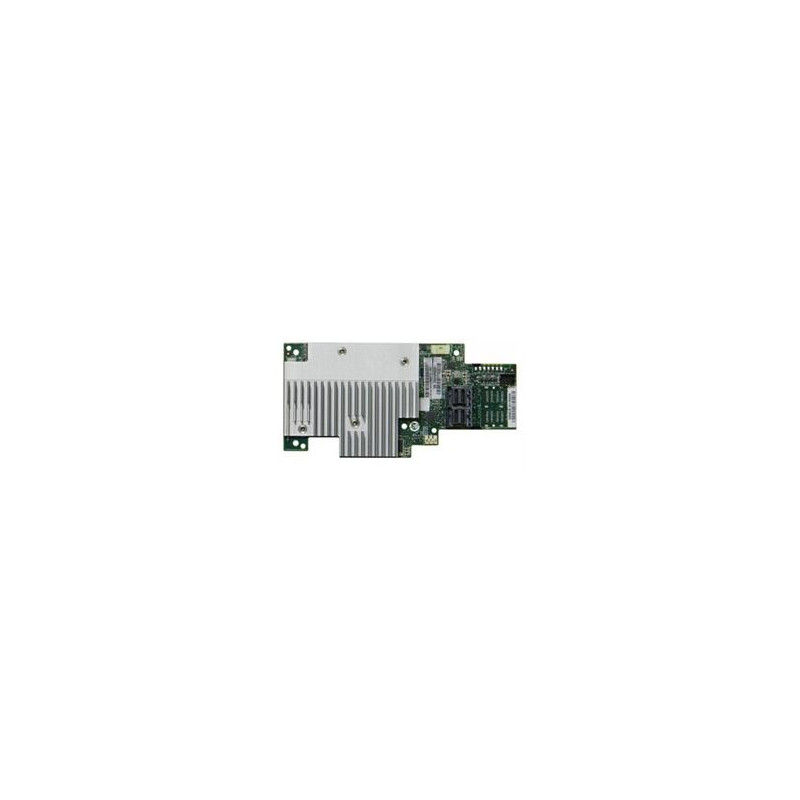

INTEL RAID Module SIOM Module Slot, LSI3508 SAS Chip, 8P Internal SAS, 4GB, RAID0- 1 10 5 50 6 60

Essentials Product Collection Intel® Integrated RAID (Modules/System Boards) Code Name Products formerly Columbia Dunes Status Launched Launch Date Q3'17 Expected Discontinuance 2H'20 Target Market Full-featured Board Form Factor Mezzanine Module Supported Devices PCIe/SAS/SATA Supported Operating Systems Microsoft Windows, VMWare, Linux (SLES, RHEL), Solaris, FreeBSD Compatible Cache Backup Options AXXRMFBU7 RAID Level Supported 0, 1, 10, 5, 50, 6, 60 JBOD Mode Yes # of Ports Internal 8 # of Ports External 0 # of Devices Supported 255 Embedded Memory 4GB PCIe Host Interface PCIe x8 Gen3 IO Processor Model SAS3508 Keying SIOM Connector Connector Orientation Vertical Extended Warranty Available for Purchase (Select Countries) Yes Additional Features Support for optional Maintenance Free Backup Unit and Premium Feature upgrade keys. Included Items (1) Intel® RAID Module, (4) standoffs, and (4) standoff locking pins
