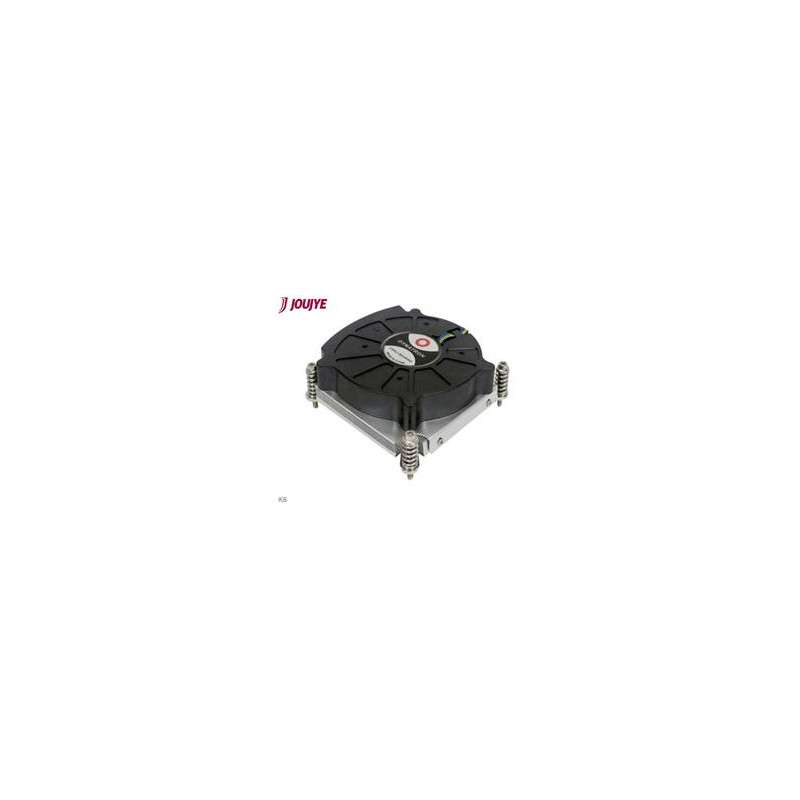

Dynatron Cooler Cooler K6 Intel 1151 -55 -56 1U Active cooler, Aluminum 6061 Skived Fins Max TDP 55W

SUPERMICRO
41270
K6
24 měsíců
595.13 Kč s DPH491.84 Kč bez DPH

vč. ekologické daně a autorského poplatku

Chcete lepší cenu? Poptejte zboží.

Není skladem
Termín doručení: Na poptávku
Poptat zboží
Přidat k oblíbeným

Popis
SPECIFICATIONS:
Application
CPU Support Intel
Socket 1151/1155/1156
Solution 1U Server
Technical Data
dimension  83.0 x 81.0 x 27.8 mm
Weight 200 g
Heat Sink
Material Aluminum 6061 Skived Fins
Fan
Dimension 80 x 80 x 15 mm
Speed At Duty Cycle 20%: 1200 ± 150RPM
At Duty Cycle 50%: 1700 ± 10% RPM
At Duty Cycle 100%: 3000 ± 10% RPM
Bearing 2 Ball Bearing
Rated Voltage 12 V
Power At Duty Cycle 20%: 0.96 W
At Duty Cycle 50%: 1.20 W
At Duty Cycle 100%: 5.04 W
Air Flow At Duty Cycle 20%: 3.6 CFM
At Duty Cycle 50%: 5.1 CFM
At Duty Cycle 100%: 9.0 CFM
Noise Level At Duty Cycle 20%: 18.8 dBA
At Duty Cycle 50%: 26.3 dBA
At Duty Cycle 100%: 38.7 dBA
Air Pressure At Duty Cycle 0~20%: 0.083 inch-H2O
At Duty Cycle 50%: 0.167 inch-H2O
At Duty Cycle 100%: 0.52 inch-H2O
Lead Wire Pin Out Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)
