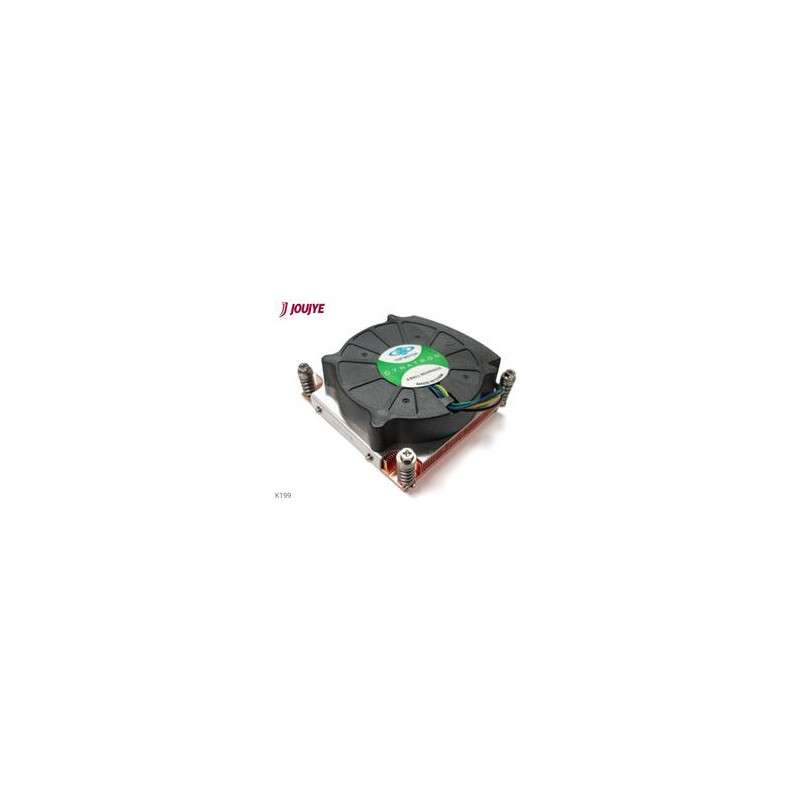

Dynatron Cooler K199G Intel 1150 -51 -55 -56 - 1U Active Copper heatsink with PWM up to 95W TDP

SUPERMICRO
41269
K199G
24 měsíců
905.52 Kč s DPH748.36 Kč bez DPH

vč. ekologické daně a autorského poplatku

Chcete lepší cenu? Poptejte zboží.

Není skladem
Termín doručení: Na poptávku
Poptat zboží
Přidat k oblíbeným

Popis
SPECIFICATIONS:
Application
Socket 1150/1151/1155/1156
CPU Intel® Core™ i3 i3-530 & i3-540, Core™ i5 i5-650, i5-650,  i5-660, i5-661 i5-670 & I5-750; Xeon® Processor 3400 Series; Core™ i7 Processors, I7-870 & I7-860
Technical Data
Overall dimension  85.0 x 81.5 x 28.5mm
Weight 355g ± 5g
Heat Sink
Material Copper Heatsink
Fan
Dimension 80 x 80 x 15 mm
Speed At Duty Cycle 0~20%: 1000 RPM
At Duty Cycle 50%: 2500 RPM
At Duty Cycle 100%: 5000 RPM
Bearing 2xBall
Rated Voltage 12 V
Power At Duty Cycle 0~20%: 0.60 W
At Duty Cycle 50%: 1.44 W
At Duty Cycle 100%: 9.60 W
Air Flow At Duty Cycle 0~20%: 5.355 CFM
At Duty Cycle 50%: 7.654CFM
At Duty Cycle 100%: 14.719 CFM
Noise Level At Duty Cycle 0~20%: 20.71 dBA
At Duty Cycle 50%: 37.5 dBA
At Duty Cycle 100%: 51.7 dBA
Air Pressure At Duty Cycle 0~20%: 2.083 mm-H2O
At Duty Cycle 50%: 9.780 mm-H2O
At Duty Cycle 100%: 36.168 mm-H2
Lead Wire Pin Out Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)
