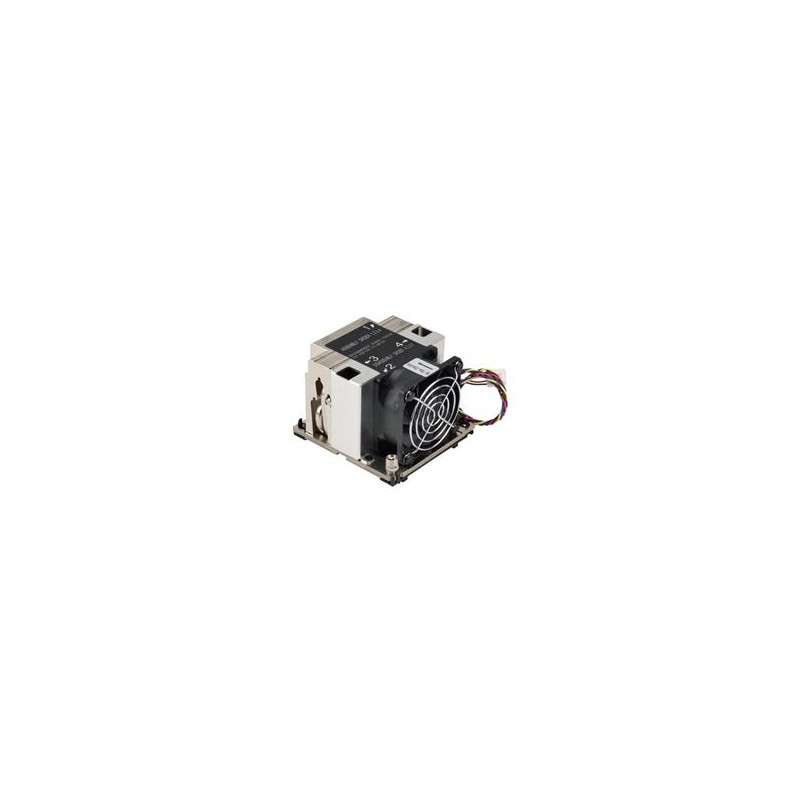

Supermicro SNK-P0068AP4 2U Heatsink s.3647-0 SQUARE X11 Purley Platform 2U and above Series Servers

This CPU heat sink is designed for Supermicro X11DPL-i motherboard with 2U and above chassis equipped with Intel® Xeon® scalable processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance. Manufacturer Supermicro Server Form Factor 2U Cooling Type Active CPU Configuration Uni Processor, Dual Processor Supported CPU SKU Intel® Xeon® Scalable Processors Supported CPU Socket FCLGA3647-0 (Square Mounting Mechanism) Supported CPU TDP Up to 140 Watts Attached Cooling Fan Speed Control: 4-pin PWM Rated Voltage: 12.0 VDC Rated Speed: 8,400 RPM Acoustic Noise: 52.0 dB(A) at Rated Speed Fan Dimensions: 60L x 60H x 25D mm Position: Front Side MTBF/MTTF: 145,190 Hours @ 40 C Ambient Warranty 1 year warranty Product Environmental Compliance RoHS and REACH compliant, details available upon request
