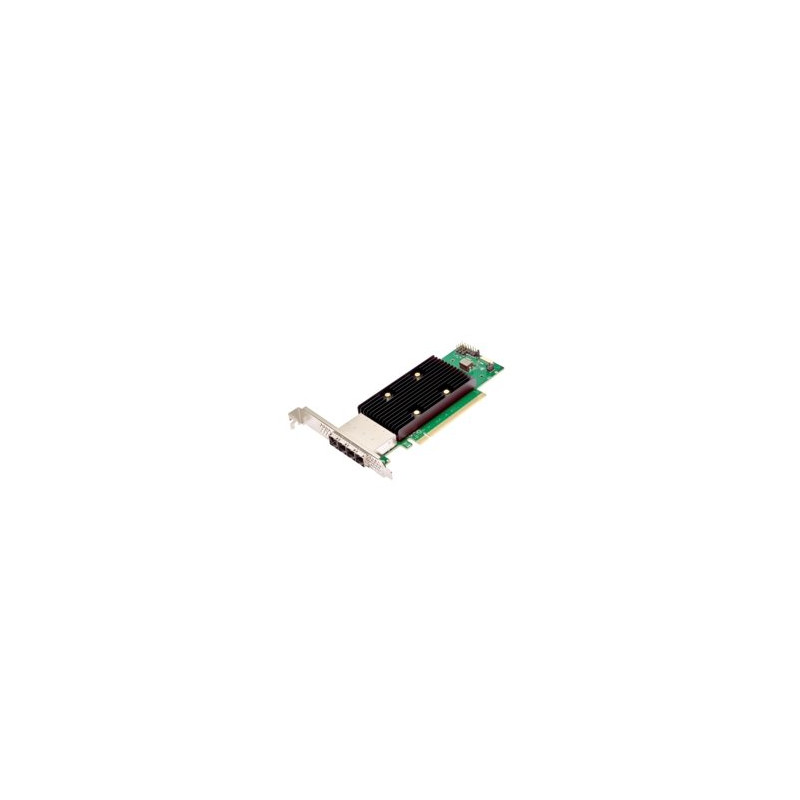

Broadcom eHBA 9600W-16e, 24Gb s, NVMe SAS SATA, 4x SFF-8644 x4, PCIe 4.0 x16, SAS4016W IOC

Tri-mode PCIe 4.0 rozhraní eHBA 9600W-16e s 16 externími porty umožňuje připojit až 240 SAS/SATA a 32 NVMe zařízení. Vysoká šířka pásma a podpora bezpečnostních funkcí zajišťují optimální výkon pro datová centra. Kompatibilní s různými operačními systémy a poskytuje pokročilou správu.
Na objednávku
34 438 Kč bez DPH 28 462 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
BROADCOM
1655228
05-50108-00
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu

eHBA 9600W-16e Tri-Mode Storage Adapter

x16, PCIe 4.0 eHBA features 16-wide external ports for high performance and increased connectivity

The 9600W-16e Tri-Mode, PCIe Gen 4.0 enhanced HBA (eHBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility.

With increased bandwidth and IOPS performance compared to previous generations, the 9600W-16e eHBA delivers the performance and scalability needed by critical applications.

  • Low profile, half-length x16 PCIe Gen 4.0 adapter
  • Connect up to 240 SAS/SATA devices or 32 NVMe devices
  • Hardware Secure Boot and SPDM Attestation support
  • SMART monitoring
  • Drive temperature monitoring
  • SafeStore key management for attached SEDs
  • Universal Bay Management (UBM) Ready
Product Manufacturer Part # What's in the Box
eHBA 9600W-16e 05-50108-00 9600W-16e eHBA, Low Profile Bracket, FH (attached)









Specification Value
Lifecycle Active
Distributor Inventory No
Brackets Full height and low profile
Data Transfer Rates 22.5, 12 and 6Gb/s SAS and 6Gb/s SATA
Devices Supported SAS/SATA: 240; NVMe: up to 32
External Connectors 4 x4 SFF-8644 (SlimSAS)
External Ports 16
Generation 24G
Host Bus Type PCIe Gen4 x16
Management Software LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF > 5,000,000 hours at 40° C
Operating Humidity 5% to 90% Non-condensing
Operating Temperature°C 0°C to 55°C
OS Support Microsoft Windows, VMware vSphere, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Physical Dimensions 6.600" x 2.712"
Regulatory Certifications Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020); RoHS, WEEE
Warranty 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
What's in the box 9600W-16e eHBA, Low Profile Bracket, Bracket, FH (attached)
