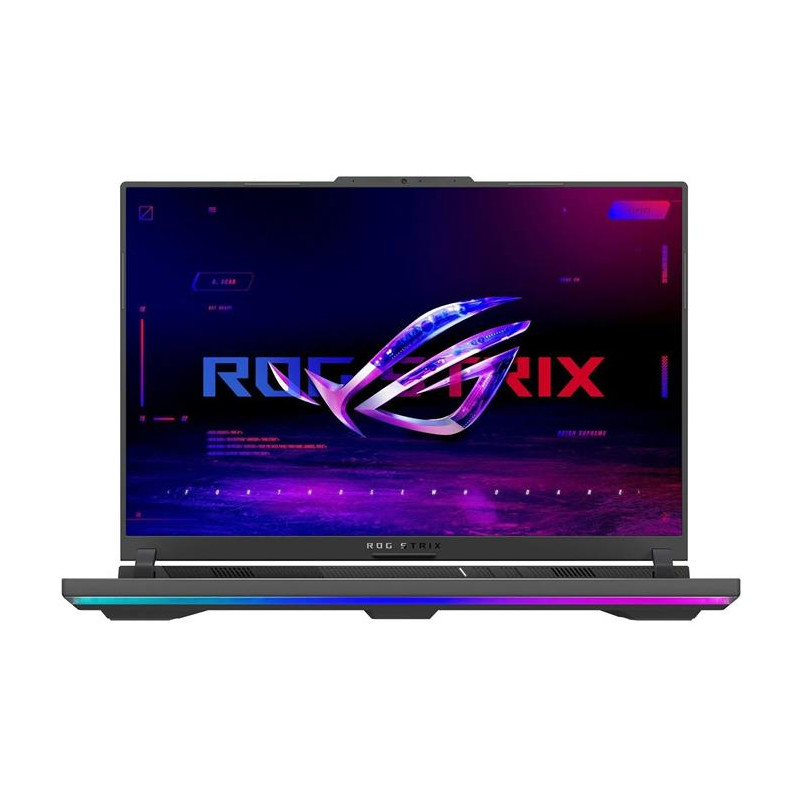

ASUS ROG Strix G16 G614PM-NEBULA036 16" R9-8940HX 16 GB 1 TB NVIDIA GeForce RTX 5060 8 GB bezOS

Marketing Name
ROG Strix G16

Operating System
No preinstalled OS

Color
Eclipse Gray

Dimension (W x D x H)
35.4 x 26.4 x 2.26 ~ 3.04 cm (13.94" x 10.39" x 0.89" ~ 1.20")

Weight
2.50 Kg (5.51 lbs)

Processor
AMD Ryzen™ 9 8940HX Processor 2.4GHz (80MB Cache, up to 5.3GHz, 16 cores, 32 Threads)

Chipset
N/A

Intergrated GPU
AMD Radeon™ Graphics

Discrete/Optimus
MUX Switch + NVIDIA® Advanced Optimus

Graphic
NVIDIA® GeForce RTX™ 5060 Laptop GPU

Graphic Memory
8GB GDDR7

Panel Size
16-inch

Resolution
2.5K (2560 x 1600, WQXGA) 16:10 aspect ratio

Refresh Rate
240Hz

Response Time (G2G)
3ms

Viewing Angle
170

Panel Tech
IPS-level

Brightness
500nits

Contrast Ratio
1200:1

DCI-P3 %
100%

Glare
Anti-glare display

Adaptive-Sync technology
G-Sync

Pantone
Pantone Validated

Nebula Display
ROG Nebula Display

Support Dolby Vision HDR
Yes

Thermal Feature
ROG intelligent cooling

On board memory
N/A

DIMM Memory
16GB DDR5-5200 SO-DIMM

Total System Memory
DDR5 16GB

Memory Slot
2x SO-DIMM slots

Memory Max.
64GB

Storage
1TB PCIe® 4.0 NVMe™ M.2 SSD

M.2 slots support either SATA or NVMe
2

M.2 SSD Support List
512G/ 1TB /2TB G4x4 Value PCIe SSD

Expansion Slot (includes used)
2x DDR5 SO-DIMM slots
2x M.2 PCIe

LAN
10/100/1000 Mbps

Wireless
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.)

I/O Ports
1x RJ45 LAN port
1x Type-C USB 4 with support for DisplayPort™ / G-SYNC (data speed up to 40Gbps)
1x Type-C USB 4 with support for DisplayPort™ / power delivery / G-SYNC (data speed up to 40Gbps)
2x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps)

Display output
1x HDMI 2.1 FRL

Camera
1080P FHD camera

Mic
Built-in array microphone

Keyboard Type
Backlit Chiclet Keyboard 4-Zone RGB
With Copilot key
*Copilot in Windows (in preview) is rolling out gradually within the latest update to Windows 11 in select global markets. Timing of availability varies by device and market. Learn more: https://www.microsoft.com/en-us/windows/copilot-ai-features?r=1#faq"

Aura Sync
Yes

Touchpad
Touchpad

Speakers
2-speaker system with Smart Amplifier Technology

Audio
1x 3.5mm Combo Audio Jack
Built-in array microphone

Audio Tech
AI noise-canceling technology
Dolby Atmos
Hi-Res certification (for headphone)
Smart Amp Technology

Security
BIOS Administrator Password and User Password Protection
Trusted Platform Module (Firmware TPM)

Battery
90WHrs, 4S1P, 4-cell Li-ion

Fast charging
Recharge from 0-50% in 30 minutes

Power
o6.0, 280W AC Adapter, Output: 20V DC, 14A, 280W, Input: 100~240C AC 50/60Hz universal

Required charging power
Min: 45W
Max: 100W
*The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher.

Ecolabels & Compliances
N/A
