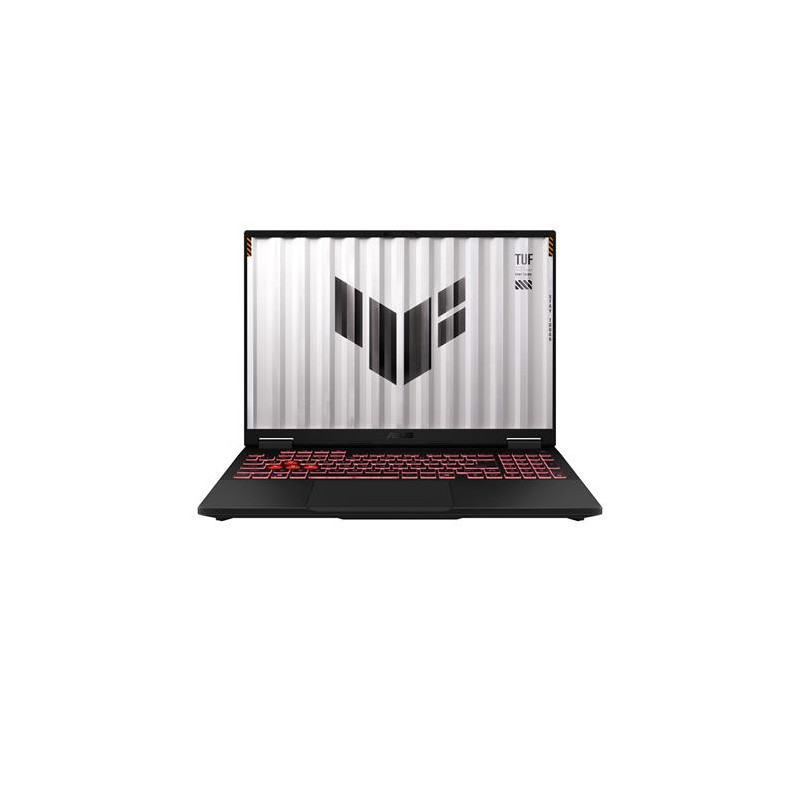

ASUS TUF Gaming A16 FA608UM-QT044W 16" R7-260 16 GB 512 GB NVIDIA GeForce RTX 5060 8 GB W11H

Marketing Name
ASUS TUF Gaming A16

Operating System
Windows 11 Home

Office
1-month trial for new Microsoft 365 customers. Credit card required.

Color
Jaeger Gray

Dimension (W x D x H)
35.4 x 26.9 x 1.79 ~ 2.57 cm (13.94" x 10.59" x 0.70" ~ 1.01")

Weight
2.20 Kg (4.85 lbs)

Processor
AMD Ryzen™ 7 260 Processor 3.8GHz (24MB Cache, up to 5.1 GHz, 8 cores, 16 Threads); AMD XDNA™ NPU up to 16TOPS

Chipset
N/A

Intergrated GPU
AMD Radeon™ Graphics

Discrete/Optimus
MUX Switch + NVIDIA® Advanced Optimus

Graphic
NVIDIA® GeForce RTX™ 5060 Laptop GPU

Graphic Wattage
2547 MHz* at 115W (2497 MHz Boost Clock+50MHz OC, 100W + 15W Dynamic Boost)

Graphic Memory
8GB GDDR7

Neural Processor
AMD XDNA™ NPU up to 16TOPS

Panel Size
16-inch

Resolution
2.5K (2560 x 1600, WQXGA) 16:10 aspect ratio

Refresh Rate
165Hz

Response Time (G2G)
3ms

Viewing Angle
85/85/85/85

Panel Tech
IPS-level

Brightness
400 nits

Contrast Ratio
1000:1

NTSC %
72.00%

SRGB %
100%

Adobe %
75.35%

Glare
Anti-glare display

Adaptive-Sync technology
G-Sync

Pantone
N/A

Support Dolby Vision HDR
N/A

On board memory
N/A

DIMM Memory
8GB DDR5-5600 SO-DIMM, the memory speed of the systems vary by CPU SPEC *2

Total System Memory
DDR5 16GB

Memory Slot
2x SO-DIMM slots

Memory Max.
64GB

How to upgrade memory
Upgradable

Storage
512GB PCIe® 4.0 NVMe™ M.2 SSD

M.2 slots support either SATA or NVMe
2

M.2 SSD Support List
M.2 PCIe 512mb
M.2 PCIe 1TB
M.2 PCIe 2TB

Expansion Slot (includes used)
2x DDR5 SO-DIMM slots
2x M.2 PCIe

LAN
10/100/1000 Mbps

Wireless
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.)

I/O Ports
1x RJ45 LAN port
1x Type-C USB 4 with support for DisplayPort™ (data speed up to 40Gbps)
1x USB 2.0 Type-A (data speed up to 480Mbps)
1x USB 3.2 Gen 2 Type-C with support for DisplayPort™ / power delivery / G-SYNC (data speed up to 10Gbps)
2x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps)

Display output
1x HDMI 2.1 FRL

Camera
1080P FHD IR Camera for Windows Hello

Mic
Built-in array microphone

Keyboard Type
Backlit Chiclet Keyboard 1-Zone RGB
With Copilot key
*Copilot in Windows (in preview) is rolling out gradually within the latest update to Windows 11 in select global markets. Timing of availability varies by device and market. Learn more: https://www.microsoft.com/en-us/windows/copilot-ai-features?r=1#faq

Aura Sync
Yes

Touchpad
Touchpad
N/A

Speakers
2-speaker system

Audio
1x 3.5mm Combo Audio Jack
Built-in array microphone

Audio Tech
AI noise-canceling technology
Dolby Atmos
Hi-Res certification (for headphone)
Support Microsoft Cortana near field/far field (Microsoft service suspended in spring of 2023.)

Security
BIOS Administrator Password and User Password Protection
Pluton Security Processor
Secured-core PC (Level 3)

Antivirus
McAfee® 30 days free trial

Battery
90WHrs, 4S1P, 4-cell Li-ion

Fast charging
Recharge from 0-50% in 30 minutes

Power
Rectangle Conn, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal

Required charging power
Min: 45W
Max: 100W
*The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher."

Xbox Game Pass
Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)

Ecolabels & Compliances
ENERGY STAR®
EPEAT Silver
