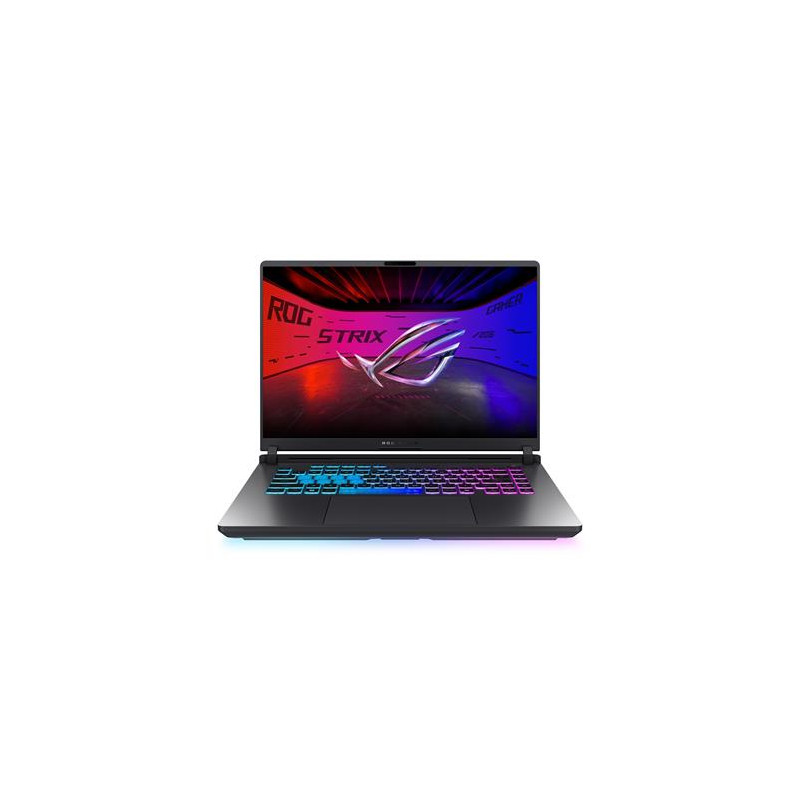

ASUS ROG Strix G16 G615LR-NEBULA002 16"" U9-275HX 32 GB 1 TB NVIDIA GeForce RTX 5070 Ti 12 GB bezOS

Marketing Name
ROG Strix G16

Operating System
No preinstalled OS

Color
Eclipse Gray

Dimension (W x D x H)
35.4 x 26.8 x 2.28 ~ 3.08 cm (13.94" x 10.55" x 0.90" ~ 1.21")

Weight
2.65 Kg (5.84 lbs)

Processor
Intel® Core™ Ultra 9 Processor 275HX 2.7 GHz (36MB Cache, up to 5.4 GHz, 24 cores, 24 Threads); Intel® AI Boost NPU up to 13TOPS

Chipset
Mobile Intel® HM870 Express Chipsets

Intergrated GPU
Intel® UHD Graphics

Discrete/Optimus
MUX Switch + NVIDIA® Advanced Optimus

Graphic
NVIDIA® GeForce RTX™ 5070 Ti Laptop GPU

Graphic Wattage
ROG Boost: 1565MHz* at 140W (1515MHz Boost Clock+50MHz OC, 115W+25W Dynamic Boost)

Graphic Memory
12GB GDDR7

Neural Processor
Intel® AI Boost NPU up to 13TOPS

Panel Size
16-inch

Resolution
2.5K (2560 x 1600, WQXGA) 16:10 aspect ratio

Refresh Rate
240Hz

Response Time (G2G)
3ms

Viewing Angle
170

Panel Tech
IPS-level

Brightness
500nits

Contrast Ratio
1200:1

DCI-P3 %
100%

Glare
Anti-glare display

Adaptive-Sync technology
G-Sync

Pantone
Pantone Validated

Nebula Display
ROG Nebula Display

Support Dolby Vision HDR
Yes

Thermal Feature
ROG intelligent cooling

On board memory
N/A

DIMM Memory
16GB DDR5-5600 SO-DIMM, the memory speed of the systems vary by CPU SPEC *2

Total System Memory
DDR5 32GB

Memory Slot
2x SO-DIMM slots

Memory Max.
64GB

Multi-channel memory technology
Support dual channel memory

Storage
1TB PCIe® 4.0 NVMe™ M.2 SSD

M.2 slots support either SATA or NVMe
2

M.2 SSD Support List
512G/ 1TB /2TB G4x4 PCIe SSD

Expansion Slot (includes used)
2x DDR5 SO-DIMM slots
2x M.2 PCIe

LAN
10/100/1000/2500 Mbps

Wireless
Wi-Fi 7(802.11be) (Triple band) 2*2+Bluetooth® 5.4 Wireless Card (*Bluetooth® version may change with OS version different.)

I/O Ports
1x 2.5G LAN port
2x Thunderbolt™ 5 with support for DisplayPort™ / power delivery / G-SYNC (data speed up to 120Gbps)
3x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps)

Display output
1x HDMI 2.1 FRL

Camera
1080P FHD IR Camera for Windows Hello

Mic
Built-in array microphone

Keyboard Type
Backlit Chiclet Keyboard 4-Zone RGB
With Copilot key
*Copilot in Windows (in preview) is rolling out gradually within the latest update to Windows 11 in select global markets. Timing of availability varies by device and market. Learn more: https://www.microsoft.com/en-us/windows/copilot-ai-features?r=1#faq"

Aura Sync
Yes

Touchpad
Touchpad
N/A

Speakers
2-speaker system with Smart Amplifier Technology

Audio
1x 3.5mm Combo Audio Jack
Built-in array microphone

Audio Tech
AI noise-canceling technology
Dolby Atmos
Hi-Res certification (for headphone)
Smart Amp Technology

Security
BIOS Administrator Password and User Password Protection
Trusted Platform Module (Firmware TPM)

Battery
90WHrs, 4S1P, 4-cell Li-ion

Fast charging
Recharge from 0-50% in 30 minutes

Power
Rectangle Conn, 280W AC Adapter, Output: 20V DC, 14A, 280W, Input: 100-240V AC, 50/60Hz universal

Ecolabels & Compliances
N/A
