Technical Specifications
EP-24V-72W
Dimensions 192 x 43.7 x 115 mm (7.6 x 1.7 x 4.5")
Weight 650 g (1.4 lb)
Networking interface (2) 10/100 MbE RJ45 ports
Management interface Ethernet In-Band
Power method 100-240V AC, 50-60 Hz, universal input
DC terminal block
Power supply AC input: AC/DC 72W
Battery input: 12V DC lead acid battery*
*Battery not included. Connect to a lead-acid battery only. Using another battery type could be hazardous.
Max. power consumption System: 2W
Output: 72W
PoE output (2) 24 VDC passive PoE (Pins 4, 5+; 7, 8-)
DC output 24V, 3A
LEDs System: status
RJ45 data ports: PoE; link/activity
ESD/EMP protection Air: ± 12kV, contact: ± 12kV
Ambient operating temperature 0 to 40° C (32 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
EP-54V-72W
Dimensions 115 x 192 x 43.7 mm (4.5 x 7.6 x 1.7")
Weight 650 g (1.4 lb)
Networking interface (2) 10/100 MbE RJ45 ports
Management interface Ethernet In-Band
Power method AC input: 100-240V AC, 50-60 Hz, universal input
Battery input: DC terminal block
Power supply AC input: AC/DC 72W
Battery input: 12V DC lead acid battery*
*Battery not included. Connect to a lead-acid battery only. Using another battery type could be hazardous.
Max. power consumption System: 2W
Output: 72W
PoE output (2) 54V DC passive PoE (Pins 4, 5+; 7, 8-)
DC output 54V, 1.3A
LEDs System: status
RJ45 data ports: PoE; link/activity
ESD/EMP protection Air: ± 12kV, contact: ± 12kV
Ambient operating temperature 0 to 40° C (32 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC

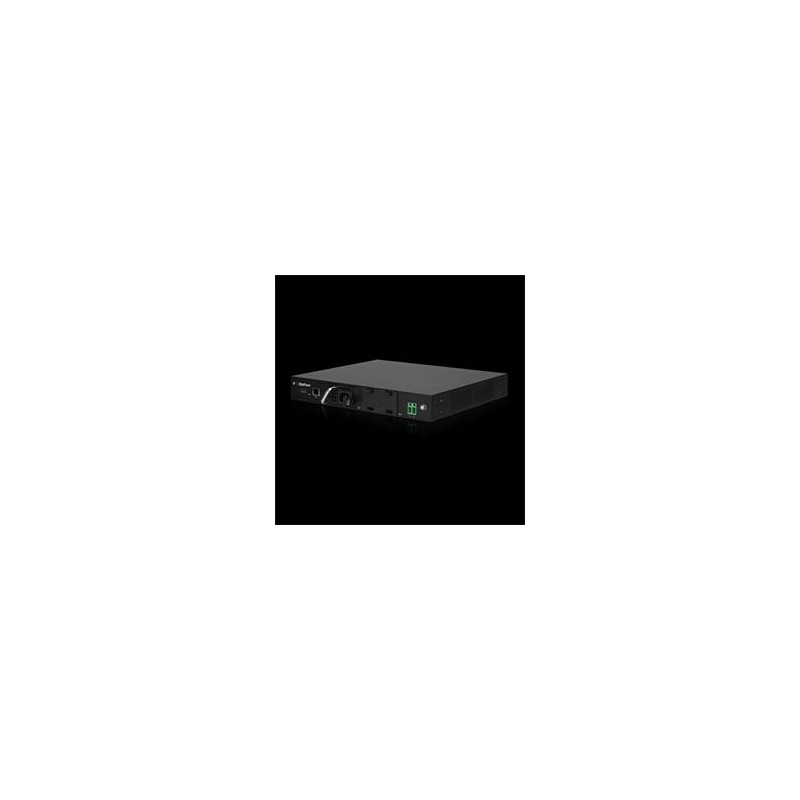

EP-54V-150W
Dimensions 299.8 x 286.9 x 42.6 mm (11.9 x 11.3 x 1.7")
Weight 2.7 kg (5.95 lb)
Networking interface (1) 10/100 MbE RJ45 port
Management interface Ethernet In-Band
Power method 100-240V AC, 50-60 Hz, universal input
Power supply 54V, 150W AC/DC, model EP-54V-150W-AC
Installed in PSU 1
Max. power output PSU 150W (1 PSU module)
300W (2 PSU modules @ 150W each)
ESD/EMP protection Air ± 24kV; contact ± 24kV
LEDs Power: system On/Off
Ethernet: management port link
PSU: PSU1+PSU2, PSU1/PSU2
Mounting Rack-mount, 1U high
Ambient operating temperature 0 to 40° C (32 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
