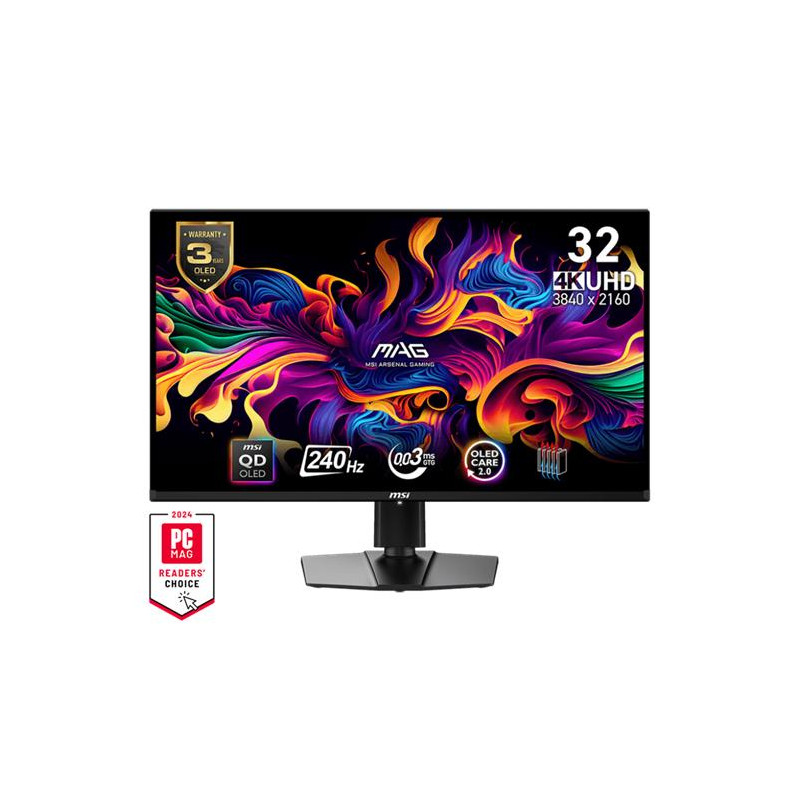

MSI MAG 321UPX QD-OLED gaming monitor 31,5" QD-OLED UHD 240Hz 0,03ms 2xHDMI DP USB-C Výšk.nast. Pivot černá
MSI MAG 321UPX QD-OLED gaming monitor 31,5" QD-OLED/UHD/240Hz/0,03ms/2xHDMI/DP/USB-C/Výšk.nast./Pivot/černá
23 495 Kč bez DPH 19 417 Kč
Technické parametry
Displej - povrch
Antireflexní
Displej - dotykový
Ne
Konektor RJ45
Ne
Konektor DVI
Ne
Konektor VGA (D-Sub)
Ne
Hmotnost přesná (kg)
9,1
Modelová řada
MSI MAG
Model
321UPX
Způsob použití
Herní
Úhlopříčka (")
31,5
Rozlišení
3840 x 2160
Rozteč bodů (mm)
0,1814
Formát obrazu
Širokoúhlý - 16:9
Displej - typ
QD-OLED
Prohnutý monitor
Ne
Jas (cd/m2=nits) - přesný
250
Jas (cd/m2=nits) - rozsah
100 - 250
Rozlišení - standard
4K
Kontrast (statický)
1 500 000:1
Doba odezvy (ms)
0,03
Obnovovací frekvence (Hz)
240
Pozorovací úhel ver./ hor.
178 / 178
Výškově nastavitelný stojan
Ano
Pivot
Ano
Rozměry (ŠxVxH mm)
717 × 477 × 242
Montáž na stěnu
Ano
Barevná hloubka
1073 milionu
Rozměr VESA uchycení (mm)
100 x 100
Hmotnost rozsah (kg)
od 5,1 - 10
VESA standard
Ano
Webkamera
Ne
Power Delivery
Ano
Výkon Power Delivery (W)
15
Konektor DisplayPort
Ano
DP (počet)
1
Konektor HDMI
Ano
Verze HDMI
Verze 2.1
Konektor USB
Ne
Konektor SCART
Ne
Konektor USB-C
Ano
Komponentní video
Ne
Repro
Ne
Kompozitní video
Ne
Barva
Černá
Zdroj
Interní
Záruka
2 Roky
VESA Certifikace HDR
DisplayHDR 400
Adaptive-Sync
Ano
Herní provedení
Ano
Popis produktu
MSI MAG 321UPX QD-OLED gaming monitor 31,5" QD-OLED/UHD/240Hz/0,03ms/2xHDMI/DP/USB-C/Výšk.nast./Pivot/černá
MKT Spec MAG 321UPX QD-OLED
Website Name MAG 321UPX QD-OLED
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 31.5" (80 cm)
Active Display Area (mm) 699.48(H) x 394.73(V)
Curvature Flat
Panel Type QD-OLED
Resolution 3840x2160 (UHD)
Pixel pitch (mm) 0.1814(H)x0.1814(V)
Aspect Ratio 16:9
Dynamic Refresh Rate technology Adaptive-Sync
Dynamic Refresh Rate Activated Range 48~240Hz
HDR (High dynamic range) True Black 400
SDR Brightness (nits) 250
HDR Brightness (Peak nits) 1000
Contrast Ratio 1500000:1
DCR (Dynamic Contrast Ratio) NA
Signal Frequency 30~566 KHz(H) / 48~240 Hz(V)
Refresh Rate 240HZ
Response Time (MPRT) NA
Response Time (GTG) 0.03ms
Response Time (Tr + Tf) 0.1ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 120.5%/93.8%
NTSC (CIE1931 area percentage/overlap) 103.6%/91.5%
sRGB (CIE1976 area percentage/overlap) 138.2%/100%
sRGB (CIE1931 area percentage/overlap) 146.2%/100%
Adobe RGB (CIE1976 area percentage/overlap) 118.4%/97.5%
Adobe RGB (CIE1931 area percentage/overlap) 108.4%/94%
DCI-P3 (CIE1976 area percentage/overlap) 110.1%/99%
DCI-P3 (CIE1931 area percentage/overlap) 107.8%/98.4%
Rec.709 (CIE1976 area percentage/overlap) 138.2%/100%
Rec.709 (CIE1931 area percentage/overlap) 146.2%/100%
Rec.2020 (CIE1976 area percentage/overlap) 80.2%/80.2%
Rec.2020 (CIE1931 area percentage/overlap) 77.3%/77.3%
Quantum Dot Film NA
Surface Treatment Anti-Reflection
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits
Note_DP 3840 x 2160 (Up to 240Hz)
Note_HDMI 3840 x 2160 (Up to 240Hz)
Note_DVI N/A
VESA DisplayHDR
VESA ClearMR
Delta E
I/O Ports
HDMI 2
HDMI version 2.1
HDMI HDCP version 2.3
DisplayPort 1
DisplayPort version 1.4a
DisplayPort HDCP version 2.3
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) 1
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A NA
USB 2.0 Type B NA
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader NA
Lock type Kensington Lock
Speaker NA
Webcam NA
Lan Port
Power
Country EU
Territory EU
Entity EU OBD
Power Type Power Cable
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 50
Annual Energy Consumption (KWh) NA
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating G
Adapter's KC safety Number NA
Power Cord Type C13
QC Output NA
QC Output Power NA
PD Output Type C
PD Output Power 15W
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 15°
Adjustment (Swivel) -30° ~ 30°
Adjustment (Height) 0 ~ 110 mm
Adjustment (Pivot) -10° ~ 10°
VESA Mounting 100x100mm
Frameless Design Yes
Console Mode YES
HDMI CEC YES
Firmware Update YES
Stand Attachment Method
Stand Type
Stand with Integrated Mini PC Mount
KVM Version
PIP/PBP
Optix Scope
Smart Crosshair
Remote Display
AI Gaming
MSI OLED Care
Scaler FW Update
Carton
Carton Item (SG14) SG14-M1S163A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 12
Q'ty/20cy (by air) pcs 120
Q'ty/40cy (by air) pcs 252
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1160
Net Weight (by air) kg 136.8
Gross Weight (by air) kg 154.54
pallet Q'ty (by sea) pcs 24
Q'ty/20cy (by sea) pcs 240
Q'ty/40cy (by sea) pcs 504
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2192
Net Weight (by sea) kg 273.6
Gross Weight (by sea) kg 291.34
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 717 x 242 x 457
Product Dimension with Stand (WxDxH) (inch) 28.23 x 9.53 x 17.99
Product Dimension without Stand (WxDxH) (mm) 717 x 72 x 419
Product Dimension without Stand (WxDxH) (inch) 28.23 x 2.83 x 16.5
Stand Dimension (WxDxH) (mm) 309 x 242 x 391
Stand Dimension (WxDxH) (inch) 12.17 x 9.53 x 15.39
Weight (Net kg) 9.1
Weight (Net lbs) 20.06
Weight Without Stand (kg) 6.4
Weight Without Stand (lbs) 14.11
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 97.2 x 18.5 x 51.3
Inside Carton Dimension (WxDxH) (inch) 38.27 x 7.28 x 20.2
Outer Carton Dimension (WxDxH) (cm) 99 x 20 x 53.8
Outer Carton Dimension (WxDxH) (inch) 38.98 x 7.87 x 21.18
Weight (Gross kg) 11.4
Weight (Gross lbs) 25.13
Accessories
DisplayPort Cable 1
DisplayPort Cable Version 1.4a
HDMI Cable 1
HDMI Cable Version 2.1
DVI Cable 0
DVI Cable Version NA
USB Type A to Type B Cable 0
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 0
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 4
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Series Name Gaming
Segment Name MAG
Segment Name2 MAG 321UX
Segment Name3 MAG 321UPX QD-OLED
Barcode Info
EAN 4711377150255
MKT Spec MAG 321UPX QD-OLED
Website Name MAG 321UPX QD-OLED
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 31.5" (80 cm)
Active Display Area (mm) 699.48(H) x 394.73(V)
Curvature Flat
Panel Type QD-OLED
Resolution 3840x2160 (UHD)
Pixel pitch (mm) 0.1814(H)x0.1814(V)
Aspect Ratio 16:9
Dynamic Refresh Rate technology Adaptive-Sync
Dynamic Refresh Rate Activated Range 48~240Hz
HDR (High dynamic range) True Black 400
SDR Brightness (nits) 250
HDR Brightness (Peak nits) 1000
Contrast Ratio 1500000:1
DCR (Dynamic Contrast Ratio) NA
Signal Frequency 30~566 KHz(H) / 48~240 Hz(V)
Refresh Rate 240HZ
Response Time (MPRT) NA
Response Time (GTG) 0.03ms
Response Time (Tr + Tf) 0.1ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 120.5%/93.8%
NTSC (CIE1931 area percentage/overlap) 103.6%/91.5%
sRGB (CIE1976 area percentage/overlap) 138.2%/100%
sRGB (CIE1931 area percentage/overlap) 146.2%/100%
Adobe RGB (CIE1976 area percentage/overlap) 118.4%/97.5%
Adobe RGB (CIE1931 area percentage/overlap) 108.4%/94%
DCI-P3 (CIE1976 area percentage/overlap) 110.1%/99%
DCI-P3 (CIE1931 area percentage/overlap) 107.8%/98.4%
Rec.709 (CIE1976 area percentage/overlap) 138.2%/100%
Rec.709 (CIE1931 area percentage/overlap) 146.2%/100%
Rec.2020 (CIE1976 area percentage/overlap) 80.2%/80.2%
Rec.2020 (CIE1931 area percentage/overlap) 77.3%/77.3%
Quantum Dot Film NA
Surface Treatment Anti-Reflection
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits
Note_DP 3840 x 2160 (Up to 240Hz)
Note_HDMI 3840 x 2160 (Up to 240Hz)
Note_DVI N/A
VESA DisplayHDR
VESA ClearMR
Delta E
I/O Ports
HDMI 2
HDMI version 2.1
HDMI HDCP version 2.3
DisplayPort 1
DisplayPort version 1.4a
DisplayPort HDCP version 2.3
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) 1
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A NA
USB 2.0 Type B NA
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader NA
Lock type Kensington Lock
Speaker NA
Webcam NA
Lan Port
Power
Country EU
Territory EU
Entity EU OBD
Power Type Power Cable
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 50
Annual Energy Consumption (KWh) NA
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating G
Adapter's KC safety Number NA
Power Cord Type C13
QC Output NA
QC Output Power NA
PD Output Type C
PD Output Power 15W
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 15°
Adjustment (Swivel) -30° ~ 30°
Adjustment (Height) 0 ~ 110 mm
Adjustment (Pivot) -10° ~ 10°
VESA Mounting 100x100mm
Frameless Design Yes
Console Mode YES
HDMI CEC YES
Firmware Update YES
Stand Attachment Method
Stand Type
Stand with Integrated Mini PC Mount
KVM Version
PIP/PBP
Optix Scope
Smart Crosshair
Remote Display
AI Gaming
MSI OLED Care
Scaler FW Update
Carton
Carton Item (SG14) SG14-M1S163A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 12
Q'ty/20cy (by air) pcs 120
Q'ty/40cy (by air) pcs 252
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1160
Net Weight (by air) kg 136.8
Gross Weight (by air) kg 154.54
pallet Q'ty (by sea) pcs 24
Q'ty/20cy (by sea) pcs 240
Q'ty/40cy (by sea) pcs 504
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2192
Net Weight (by sea) kg 273.6
Gross Weight (by sea) kg 291.34
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 717 x 242 x 457
Product Dimension with Stand (WxDxH) (inch) 28.23 x 9.53 x 17.99
Product Dimension without Stand (WxDxH) (mm) 717 x 72 x 419
Product Dimension without Stand (WxDxH) (inch) 28.23 x 2.83 x 16.5
Stand Dimension (WxDxH) (mm) 309 x 242 x 391
Stand Dimension (WxDxH) (inch) 12.17 x 9.53 x 15.39
Weight (Net kg) 9.1
Weight (Net lbs) 20.06
Weight Without Stand (kg) 6.4
Weight Without Stand (lbs) 14.11
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 97.2 x 18.5 x 51.3
Inside Carton Dimension (WxDxH) (inch) 38.27 x 7.28 x 20.2
Outer Carton Dimension (WxDxH) (cm) 99 x 20 x 53.8
Outer Carton Dimension (WxDxH) (inch) 38.98 x 7.87 x 21.18
Weight (Gross kg) 11.4
Weight (Gross lbs) 25.13
Accessories
DisplayPort Cable 1
DisplayPort Cable Version 1.4a
HDMI Cable 1
HDMI Cable Version 2.1
DVI Cable 0
DVI Cable Version NA
USB Type A to Type B Cable 0
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 0
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 4
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Series Name Gaming
Segment Name MAG
Segment Name2 MAG 321UX
Segment Name3 MAG 321UPX QD-OLED
Barcode Info
EAN 4711377150255
- Displej - povrch
- Antireflexní
- Displej - dotykový
- Ne
- Konektor RJ45
- Ne
- Konektor DVI
- Ne
- Konektor VGA (D-Sub)
- Ne
- Hmotnost přesná (kg)
- 9,1
- Modelová řada
- MSI MAG
- Model
- 321UPX
- Způsob použití
- Herní
- Úhlopříčka (")
- 31,5
- Rozlišení
- 3840 x 2160
- Rozteč bodů (mm)
- 0,1814
- Formát obrazu
- Širokoúhlý - 16:9
- Displej - typ
- QD-OLED
- Prohnutý monitor
- Ne
- Jas (cd/m2=nits) - přesný
- 250
- Jas (cd/m2=nits) - rozsah
- 100 - 250
- Rozlišení - standard
- 4K
- Kontrast (statický)
- 1 500 000:1
- Doba odezvy (ms)
- 0,03
- Obnovovací frekvence (Hz)
- 240
- Pozorovací úhel ver./ hor.
- 178 / 178
- Výškově nastavitelný stojan
- Ano
- Pivot
- Ano
- Rozměry (ŠxVxH mm)
- 717 × 477 × 242
- Montáž na stěnu
- Ano
- Barevná hloubka
- 1073 milionu
- Rozměr VESA uchycení (mm)
- 100 x 100
- Hmotnost rozsah (kg)
- od 5,1 - 10
- VESA standard
- Ano
- Webkamera
- Ne
- Power Delivery
- Ano
- Výkon Power Delivery (W)
- 15
- Konektor DisplayPort
- Ano
- DP (počet)
- 1
- Konektor HDMI
- Ano
- Verze HDMI
- Verze 2.1
- Konektor USB
- Ne
- Konektor SCART
- Ne
- Konektor USB-C
- Ano
- Komponentní video
- Ne
- Repro
- Ne
- Kompozitní video
- Ne
- Barva
- Černá
- Zdroj
- Interní
- Záruka
- 2 Roky
- VESA Certifikace HDR
- DisplayHDR 400
- Adaptive-Sync
- Ano
- Herní provedení
- Ano
MSI MAG 321UPX QD-OLED gaming monitor 31,5" QD-OLED/UHD/240Hz/0,03ms/2xHDMI/DP/USB-C/Výšk.nast./Pivot/černá
