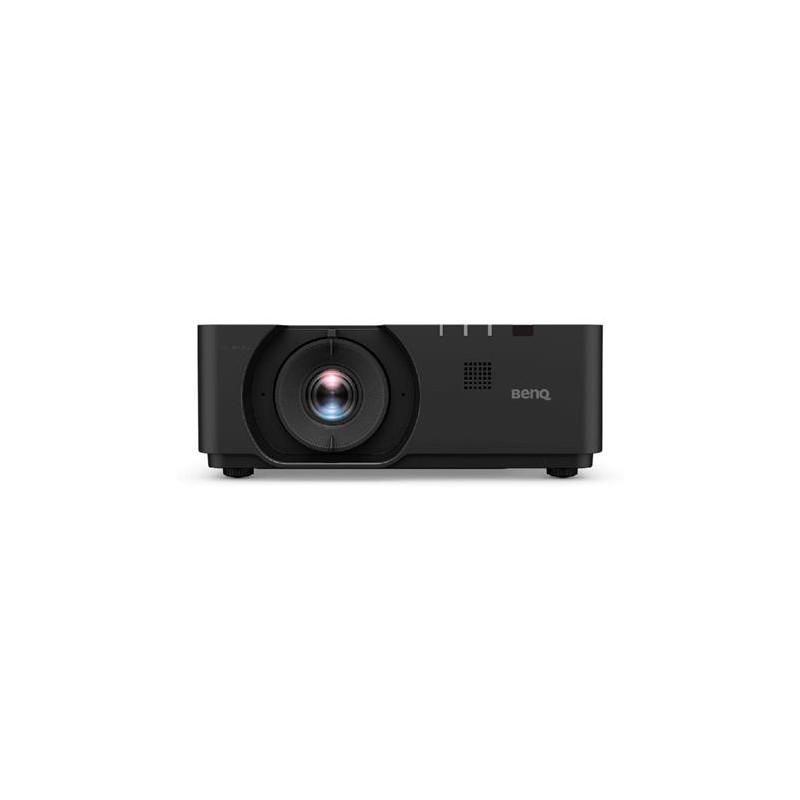

LU960 | 5500 lm Projektor s flexibilní instalací , WUXGA
Reprodukce věrného obrazu přinášející mimořádně působivý zážitek
Technologie ochrany proti prachu zajišťující spolehlivý výkon po dlouhou dobu
Podpora posunu objektivu s funkcí zámku objektivu
Nízká latence < 16,67 ms umožňující realistickou simulaci v rychlém režimu
Kalibrace vyvážení bílé přinášející hladké spojení obrazů z více projektorů
Podpora 360° instalace i instalace na výšku
Všechny technické údaje
Optical
Zoom Ratio 1.5x
Keystone Correction Vertical: ± 30 degrees? , Horizontal: ± 30 degrees?
Projection Size 30"-300"
Projection Offset 0%
Display
Projection System DLP Single 0.48" WUXGA
DMD type DC3 DMD Chip
Resolution 1920 X 1200 pixels
Brightness 5500 ANSI Lumens
Contrast Ratio* 3,000,000:1
Display Color 1.07 Billion Colors
Aspect Ratio Native 16:10 (6 aspect ratio selectable)
Light Source Laser diodes
Light Source Life* 20,000/38,000/70,000 hours (Normal/Eco/Dimming)
Audio
Built-in Speaker 10W
Special Feature
Security
Security Bar,Kensington anti-theft lock slot
Rec.709 92%
4K Compatible
360 Degree and Portrait Projection
Custom Lightsource Mode (light power adjustment)
Dust Proof Engine
24/7 Hours Operating
Feature
Large H/V Lens Shift
Corner fit/ 2D keystone/ Digital shrink and shift
Blanking
Dynamic Dimming
Native Resolution Switch between 1080p and WUXGA
Fast mode to 16 ms latency White balance calibration
Connectivity
HDMI HDMI (HDCP 2.2) x2; HDMI out x1
PC (D-sub 15pin) x1
Monitor out (D-sub 15pin,Female) x1
Audio in(mini jack) x1
Audio out (mini jack) x1
RS232 In (D-sub 9pin, male) x1
USB TypeA-2 (5V,1.5A) x1
USB Type mini B x1 (FW download/ service)
IR Receiver(Front+Top) x2 (Front +Rear)
LAN Port(RJ45 for Network ) x1
Compatibility
Resolution Support VGA (640 x 480) to 4K UHD (3840 x 2160)
Horizontal Frequency 15K~135KHz
Vertical Scan Rate 23 ~ 120 Hz
HDTV Compatibility 480i, 480p, 576i, 567p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM?
Power
Power Consumption (Max/Normal/Eco) 500W/450W/350W
Standby Power ConsumptionNormal < 0.5Watts. Network < 2W.
Power Supply 100 ~ 240V AC
Dimension and Weight
Product Dimensions (WxHxD) 479.6 x 182.8 x 402 mm
Product Weight 12 kg
Operation Condition
Noise Level(Normal/Eco) 37/35dBA
Operating Temperature 0 ~ 40°C
Accessories
Accessories (Standard)Installation Guide, Safety Guide, Remote Control (RCA024), AA Batteryx2, Power Cord, Warranty card (by Region)
Accessories (Optional) Ceiling Mount (CMG6), 3D glasses
LS2LT1
Throw Ratio 1.127-1.697
Lens Shift Vertical: ± 62 degrees? , Horizontal: ± 24 degrees?
