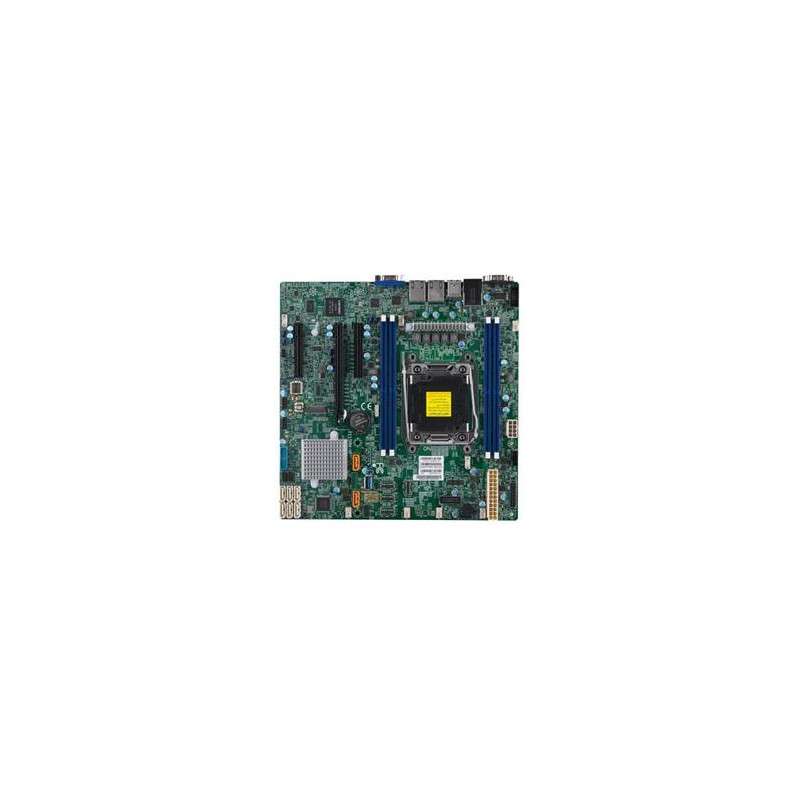

SUPERMICRO MB 1xLGA2066, iC422,4x DDR4 ECC,8xSATA3, 1x M.2, PCI-E 3,0 1,2 (x16,x8), 2x LAN,IPMI, bulk

Product SKUs MBD-X11SRM-F X11SRM-F Physical Stats Form Factor microATX Dimensions 9.6" x 9.6" (24.38cm x 24.38cm) Processor/Cache CPU Intel® Xeon® W-2100 Processors, Intel® Xeon® W-2200 Processors Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP Cores / Cache 18 cores, 36 threads Note W-2200 CPU is supported on the motherboards with BIOS 2.0 or newer upon receiving from Supermicro Note To support 165W W-2200 CPUs, BIOS 2.0 & VRM update by Supermicro are required System Memory Memory Capacity Up to 256GB ECC RDIMM, DDR4-2933MHz; Up to 512GB ECC LRDIMM, DDR4-2933MHz, in 4 DIMM slots Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB, 128GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C422 SATA Intel® C422 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Dual LAN with Intel® i210 Gigabit Ethernet Controller Graphics ASPEED AST2500 BMC Input / Output SATA 8 SATA3 (6Gbps) ports LAN 2 RJ45 Gigabit Ethernet LAN ports USB 6 USB 2.0 ports (2 rear + 4 via headers) 5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A) Video Output 1 VGA port Serial Port / Header 2 COM Ports (1 rear, 1 header) TPM TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 M.2 M.2 Interface: 1 PCI-E 3.0 x4 Form Factor: 2280 Key: M-Key Double Height Connector System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.0 SMBIOS 3.0 or later Plug and Play (PnP) Management Software IPMI2.0, KVM with dedicated LAN, SUM, SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management CPU thermal trip support for processor protection Power-on mode for AC power recovery PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 -fan status, Chassis intrusion header, HT, Monitors CPU voltages, System temperature, VBAT Temperature PECI, CPU thermal trip support, Thermal Control for 6 Fan Connectors LED CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED Other Features ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, RoHS, UID Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11SRM-F 1 X11SRM-F Motherboard I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SRM-F with EMI Gasket Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X11SRM-F 1 X11SRM-F Motherboard QRG MNL-1967-QRG 1 Motherboard Quick Reference Guide I/O Cables CBL-0044L 6 57.5 cm SATA FLAT S-S PBF I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SRM-F with EMI Gasket Chassis (Optimized for X11SRM-F) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SC731i-300B SC732I-500B SC732D4-500B SC733TQ-668B SC842TQC-668B
