Product SKUs

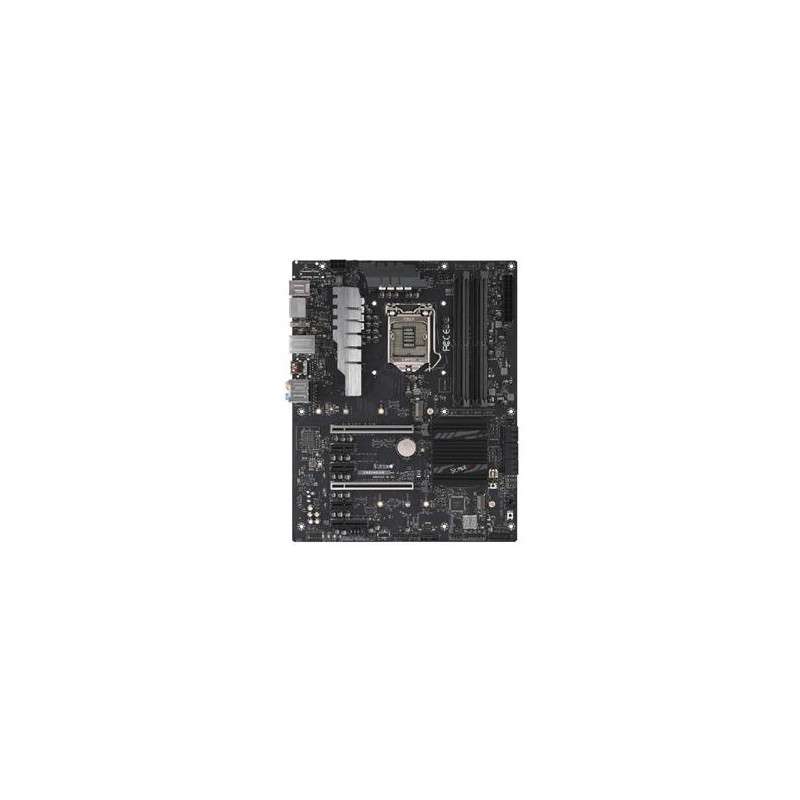

MBD-C9Z390-CG C9Z390-CG
Physical Stats
Form Factor ATX
Dimensions 12" x 9.6" (30.48cm x 24.38cm)
Processor/Cache
CPU Intel® 8th/9th Generation Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® series Processor.
Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 120W TDP
System Memory
Memory Capacity Up to 64GB Unbuffered non-ECC UDIMM, in 4 DIMM slots (Limited to Gen 8th series and Gen 9th core i3, Pentium and Celeron) Up to 128GB Unbuffered non-ECC UDIMM, in 4 DIMM slots (Limited to Gen 9th core i5/i7/i9)
Memory Type 2666MHz/2400MHz DDR4 288-pin Non-ECC UDIMM
DIMM Sizes 4GB, 8GB, 16GB, 32GB
Memory Voltage 1.2V
On-Board Devices
Chipset Intel® Z390 Express
SATA Intel® Z390 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers Single LAN with Intel® single Ethernet PHY i219V
Audio 7.1 HD Audio
Graphics DP up to 1.2; HDMI up to 1.4b
Input / Output
SATA 6 SATA3 (6Gbps) port
LAN 1 RJ45 Gigabit Ethernet LAN ports
USB
4 USB 3.1 Gen1 ports (2 Rears Type A, 2 via headers)
5 USB 3.1 Gen2 ports (3 Rears Type A + 1 Rear Type C, 1 via header)
Internal USB 3.1 Gen2 port only supports one type-C device
Video Output 2 DP (DisplayPort) ports, 1 HDMI port,
DP up to 1.2; HDMI up to 1.4b
Serial Port / Header 1 COM Port (1 header)
TPM 1 TPM Header
Expansion Slots
PCI-E 2 PCI-E 3.0 x16 slots (16/NA or 8/8),
1 PCI-E 3.0 x4,
3 PCI-E 3.0 x1
CPU Slot3 PCI-E 3.0 x8 (IN x16) slot and CPU Slot1 PCI-E 3.0 x4 slot share the same PCI-Ex16 link with CPU Slot6 PCI-E 3.0 x16 slot. CPU Slot6 PCI-E 3.0 x16 slot and CPU Slot3 PCI-E 3.0 x8 (IN x16) slot will change to PCI-E 3.0 x8 link and PCI-E 3.0 x4 link respectively when an add-on card is installed in CPU Slot1 PCI-E 3.0 x4 slot
M.2 M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1
Form Factor: 2242/2260/2280/22110, 2242/2260/2280
Key: M-Key , M-Key
System BIOS
BIOS Type AMI AMI 64Mb SPI Flash ROM
BIOS Features ACPI 6.0
SMBIOS 3.0 or later
UEFI 2.4
Management
Software SuperDoctor® 5, Watchdog
System Management Software SuperDoctor 5
Power Configurations Power-on mode for AC power recovery
PC Health Monitoring
Voltage +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 5 -fan status
FAN 5 fans with tachometer status monitoring
Temperature PECI
LED +5V Standby alert LED
Other Features Chassis intrusion header
Parts List ?
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-C9Z390-CG 1 C9Z390-CG Motherboard
--
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-C9Z390-CG 1 MBD-C9Z390-CGW Motherboard
IO shield MCP-260-00138-0N 1 C9Z390-CG IO Shield
Quick Reference Guide MNL-2098-QRG 1 C9Z390-CG Quick Reference Guide
SATA cable CBL-0044L 4 57.5CM SATA FLAT S-S PBF
Driver CD 1 C9 Driver CD
Chassis (Optimized for C9Z390-CG)
Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SCGS5A-754K
SCGS5A-753B
SC732D3-1200B
SC732D3-903B
SC732D4-500B
