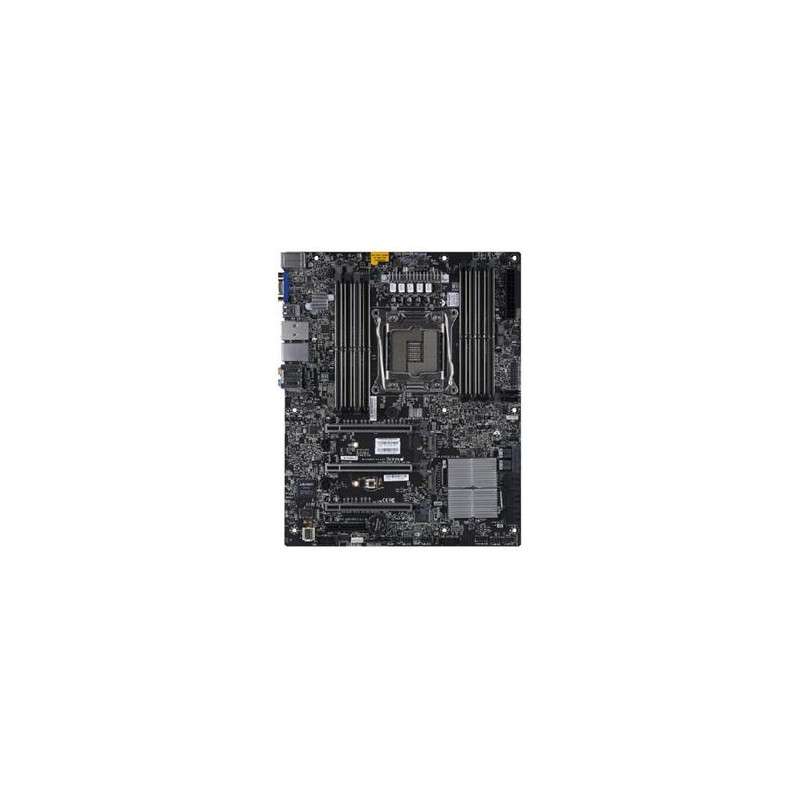

SUPERMICRO MB 1xLGA2066, iC422,8x DDR4 ECC,6xSATA3, 2x U.2, 2x M.2, PCI-E 3.0 3,1 (x16,x4), 2x LAN,IPMI

Product SKUs MBD-X11SRA-F X11SRA-F Physical Stats Form Factor ATX Dimensions 12" x 9.6" (30.48cm x 24.38cm) Processor/Cache CPU Intel® Xeon® W-2100 Processors, Intel® Xeon® W-2200 Processors Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP As Intel® Xeon® Processor W Family System Memory Memory Capacity Up to 512GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1TB Registered ECC LRDIMM, DDR4-2666MHz, in 8 DIMM slots(DDR4-2933MHz: RDIMM Max. Memory Capacity 256GB Registered ECC, LRDIMM Max. Memory Capacity 512GB Registered ECC) Memory Type 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB, 128GB Memory Voltage 1.2V On-Board Devices Chipset Intel® C422 SATA Intel® C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 *iRST enabled, only SATA2 to SATA5 support RAID. IPMI ASPEED AST2500 ***OOB Bios refresh function is not supported.*** Network Controllers Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Aquantia 5G LAN chip AQC108 Audio ALC 1220 7.1 HD Audio Graphics ***VGA Port is default set to support IPMI Input / Output USB 6 USB 2.0 ports (2 rear + 4 via headers) 6 USB 3.2 Gen1 ports (4 rear + 2 via headers) 2 USB 3.2 Gen2 ports (2 Type A Video Output 1 VGA port, ***VGA Port is default set to support IPMI Serial Port / Header 1 COM Port (1 header) TPM 1 TPM Header Expansion Slots PCI-E 3 PCI-E 3.0 x16, 1 PCI-E 3.0 x4 ***3xPCI-E3.0 x16 Slots(8/16/16 (Skylake-W 48 lanes), 1xPCI-E3.0x4 slots*** M.2 M.2 Interface: 2 PCI-E 3.0 x4 Form Factor: 22110 Key: M-Key (RAID 0,1 support) *M-Key for SSD and Optane(up to Intel POR). Intel VROC license kit is needed to enable RAID. System BIOS BIOS Type UEFI 256Mb Management Software IPMI2.0, SuperDoctor® 5, Watchdog PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 5 (4-pin), Chassis intrusion header, Monitors CPU voltages, Monitors for CPU Cores, System temperature, VBAT FAN 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, PWM fan speed control Temperature CPU thermal trip support, Monitoring for CPU and chassis environment, PECI, Support to monitor Supermicro AOC temperatures from IPMI or SD 5 LED CPU / System Overheat LED Other Features ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, RoHS, Voltage and Frequency Overclocking, WOL Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F) Non-Operating Temperature Range -20°C ~ 60°C (-4°F ~ 140°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11SRA-F 1 X11SRA-F Motherboard SATA cable CBL-0044L 2 SATA cable IO shield MCP-260-00118-0N 1 X11SRA series IO shield Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X11SRA-F 1 X11SRA-F Motherboard SATA cable CBL-0044L 6 SATA cable IO shield MCP-260-00118-0N 1 X11SRA series IO shield Quick Reference Guide MNL-2005-QRG 1 X11SRA series Quick Reference Guide Giftbox Box-0121 1 Giftbox Giftbox foam BOX-019 1 Giftbox foam Optional Parts List Name Part Number Qty Description TPM security module (optional, not included) AOM-TPM-9671V 1 TPM for X11SRA-F TPM security module (optional, not included) AOM-TPM-9671H 1 TPM for X11SRA-F TPM security module (optional, not included) AOM-TPM-9671V-S 1 TPM for X11SRA-F TPM security module (optional, not included) AOM-TPM-9671H-S 1 TPM for X11SRA-F TPM security module (optional, not included) AOM-TPM-9670V 1 TPM for X11SRA-F TPM security module (optional, not included) AOM-TPM-9670H 1 TPM for X11SRA-F TPM security module (optional, not included) AOM-TPM-9670V-S 1 TPM for X11SRA-F TPM security module (optional, not included) AOM-TPM-9670H-S 1 TPM for X11SRA-F Chassis (Optimized for X11SRA-F) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SC732D3-903B SC732D3-1200B SCGS5A-753K SCGS5A-753R SC743AC-668B SC743AC-1200B-SQ SC743TQ-865B-SQ SC745BAC-R1K28B2
