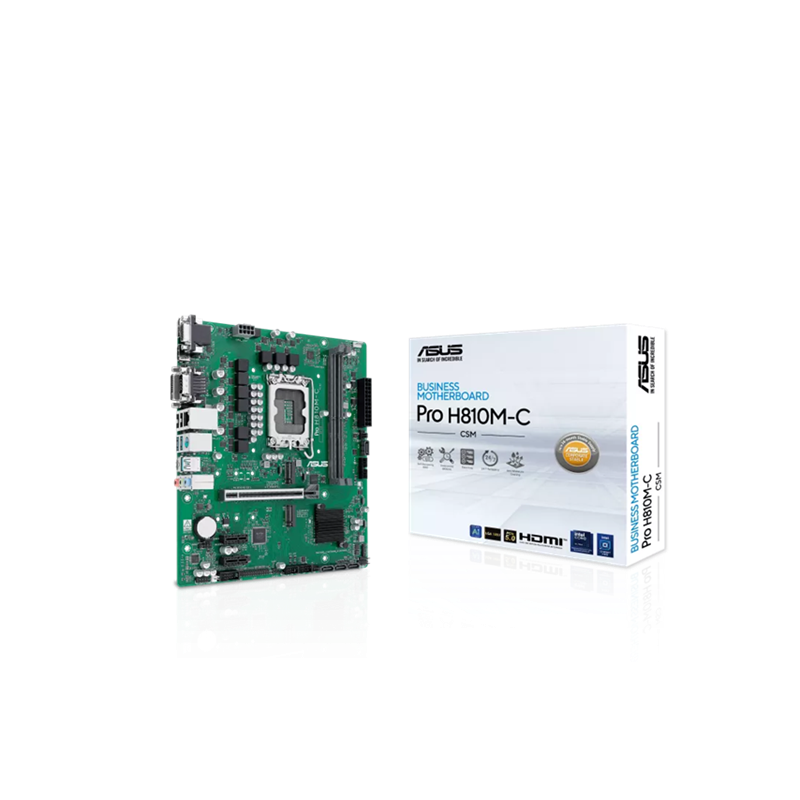

ASUS PRO H810M-C-CSM
* mATX Form Factor
CPU: Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 - Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset: Intel H810 Chipset
Paměť: 2 x DIMM slots, max. 128GB, DDR5
*Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
*Dual channel memory architecture
*DIMM Fit
*Supports Intel® Extreme Memory Profile (XMP) memory module
*ASUS Enhanced Memory Profile II (AEMP II)
Grafické porty:
*1 x DisplayPort
*1 x VGA port
*1 x DVI-D port
*1 x HDMI™ port
Rozšiřující sloty:
Intel® Core™ Ultra Processors (Series 2)
*1 x PCIe 5.0 x16 slot
Intel® H810 Chipset
*2 x PCIe 4.0 x1 slots
Úložný prostor:
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H810 Chipset
*M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
*M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
*4 x SATA 6Gb/s ports
Ethernet:
*1 x Intel® 1Gb Ethernet port
*ASUS LANGuard
USB:
Zadní USB (Total 7 ports)
*2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
*2 x USB 5Gbps ports (2 x Type-A)
*2 x USB 2.0 ports (2 x Type-A)
Přední USB (Total 7 ports)
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC*
*Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
*Supports up to 24-Bit/192 kHz playback
Vstupy/výstupy zadního panelu:
*2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
*2 x USB 5Gbps ports (2 x Type-A)
*2 x USB 2.0 ports (2 x Type-A)
*1 x DisplayPort
*1 x VGA port
*1 x DVI-D port
*1 x HDMI™ port
*1 x Intel® 1Gb Ethernet port
*3 x Audio jacks
*1 x COM port
*1 x PS/2 keyboard/mouse combo port
Interní vstupy/výstupy:
Ventilátory a chlazení:
*1 x 4-pin CPU Fan header
*2 x 4-pin Chassis Fan headers
Napájení:
*1 x 24-pin Main Power connector
*1 x 8-pin +12V CPU Power connector
Úložiště:
*2 x M.2 slots (Key M)
*4 x SATA 6Gb/s ports
USB:
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*2 x USB 2.0 headers support 4 additional USB 2.0 ports
Různé:
*1 x Clear CMOS header
*1 x Chassis Intrusion header
*1 x COM Port header
*1 x Front Panel Audio header (F_AUDIO)
*1 x COM Debug header
*1 x LPT header
*1 x Mono-Out Audio header (with Amp IC)
*1 x SMBUS header
*1 x Speaker header
*1 x SPI TPM header (14-1 pin)
*1 x 10-1 pin Front Panel System header
Příslušenství:
Kabely:
*2 x SATA 6Gb/s cables
Různé:
*1 x I/O shield
*1 x M.2 anchor package
Dokumenty:
*1 x ACC Express activation key card
*1 x Quick start guide
