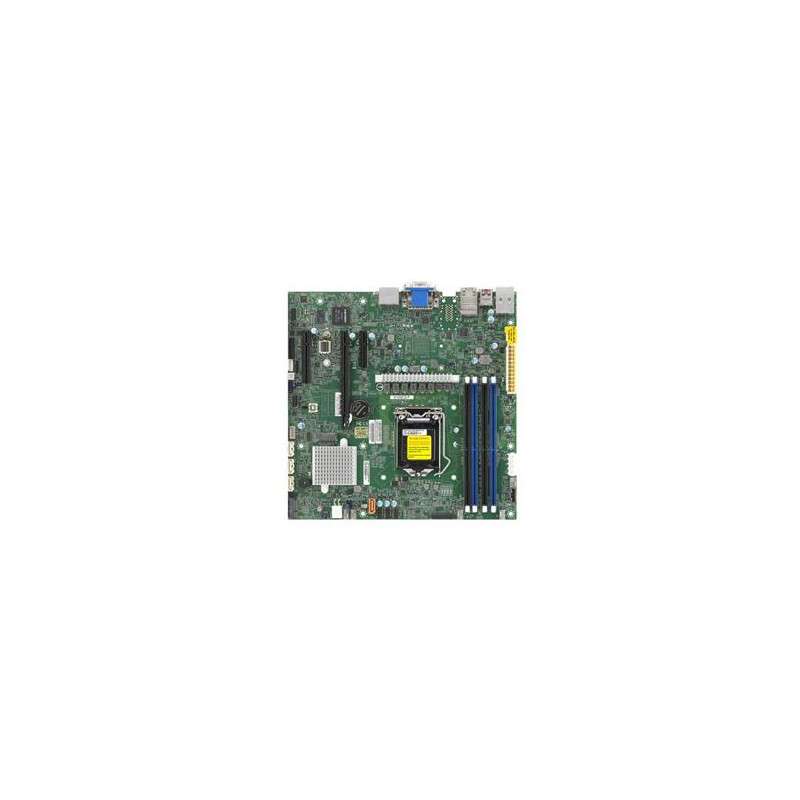

SUPERMICRO MB LGA1200 1U(Xeon W-12xx, core), W480,4xDDR4,4xSATA3,M.2,3xPCIe3.0 (16 4 4),2xDP,DVI,Audio,2x1Gb,IPMI

Product SKUs MBD-X12SCZ-F X12SCZ-F Physical Stats Form Factor microATX Dimensions 9.6"" x 9.6"" (24.38cm x 24.38cm) Processor/Cache CPU 10th Generation Intel® Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® Processor, Intel® Xeon® W-1200 Processors Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP A graphic integrated CPU is required to have onboard video from the DVI and DP ports Cores / Cache Up to 10 cores Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support. System Memory Memory Capacity Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots Memory Type 2933/2666/2400/2133MHz DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® W480 SATA Intel® W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Single LAN with Intel® PHY I219LM LAN controller Single LAN with Intel® Ethernet Controller I210-AT Audio ALC 888S HD Audio Graphics Aspeed AST2500 BMC, Intel® HD Graphics Input / Output SATA 4 SATA3 (6Gbps) ports LAN 2 RJ45 Gigabit Ethernet LAN ports USB 6 USB 2.0 ports (6 via headers) 6 USB 3.2 Gen2 ports (4 Rear Type A, 2 via headers) Video Output 1 VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port Serial Port / Header 2 COM Ports (1 header) TPM TPM Header & Chip both Expansion Slots PCI-E 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x4 (in x8 slot), 1 PCI-E 3.0 x4 M.2 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110 1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230 System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.1 SMBIOS 3.1 PCI FW 3.0 UEFI 2.6 RTC (Real Time Clock) Wakeup Management Software AMT, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SUM, SuperDoctor® 5, vPro, Watchdog System Management Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support Power Configurations +12V DC Power Input ATX Power connector ACPI Power Management PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 5 -fan status, Chassis intrusion header, CPU, Memory, PCH temperature, VBAT FAN 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control Temperature Thermal Control for 5 Fan Connectors LED Power LED, BMC/IPMI Heartbeat LED, UID/Remote UID Other Features 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Dual Cooling Zones, M.2 NGFF connector, RoHS, UID Operating Environment Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F) Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X12SCZ-F 1 X12SCZ-F Motherboard I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00093-0N 1 Standard I/O Shield for X12SCZ with EMI Gasket Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X12SCZ-F 1 X12SCZ-F Motherboard I/O Cables CBL-0044L 4 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00093-0N 1 Standard I/O Shield for X12SCZ with EMI Gasket Optional Parts List Name Part Number Qty Description 1U I/O Shield MCP-260-00094-0N -- 1U I/O Shield for X12SCZ with EMI Gasket in CSE-512/813 USB3.1 Cable CBL-CUSB-0835 -- Dual USB3.1 Type A Cable with Bracket Serial Port Cable CBL-CUSB-0984 -- Dual Serial Port Breakout Cable 20cm Serial Port Cable CBL-CDAT-0604 -- Dual Serial Port cable with bracket 40cm Chassis (Optimized for X12SCZ-F) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SC510FT-203B
