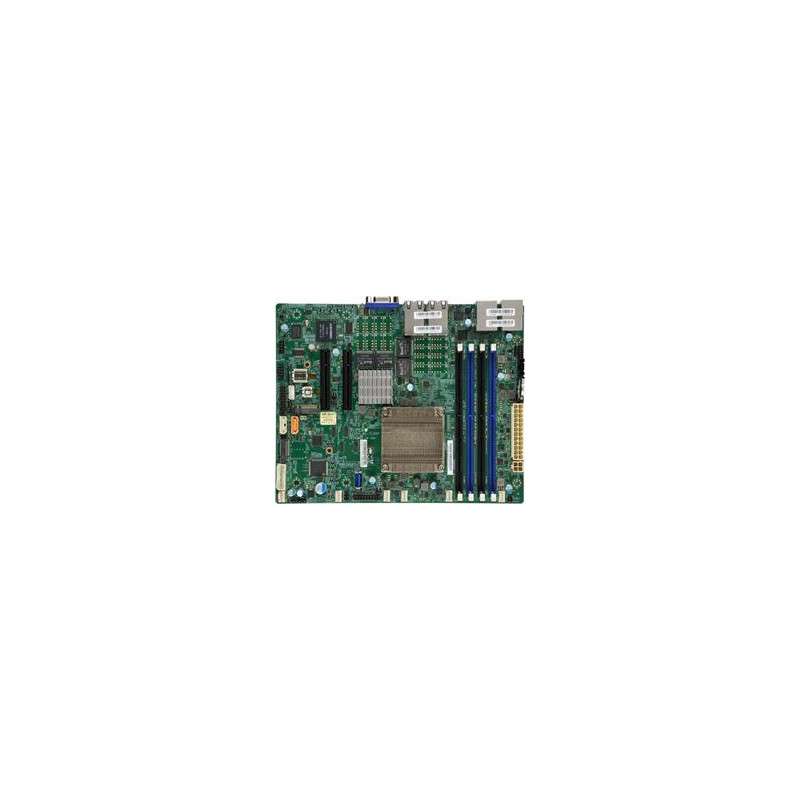

SUPERMICRO Flex-ATX MB Atom C3708 (8-core), 4x DDR4 ECC DIMM, 2xSATA, 1x PCI-E 3.0 x8, 4x 10GbE LAN, IPMI

Product SKUs MBD-A2SDV-8C-TLN5F A2SDV-8C-TLN5F Physical Stats Form Factor Flex ATX Dimensions 9" x 7.25" (22.86cm x 18.42cm) Processor/Cache CPU Intel® Atom? Processor C3708. Single Socket FCBGA1310 supported, CPU TDP support 17W Cores / Cache 8 cores, 8 threads / 16MB cache System Memory Memory Capacity Up to 256GB Registered ECC RDIMM and DDR4-2133MHz Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots Memory Type 2400/2133/1866/1600MHz (Operating speed up to 2133MHz) DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset System on Chip SATA SoC controller for 2 SATA3 (6 Gbps) ports; IPMI ASPEED AST2400 BMC Network Controllers Quad LAN with 10GBase-T with Intel® X557 Single LAN with Intel® i210 Gigabit Ethernet Controller Graphics Aspeed AST2400 BMC Input / Output LAN 4 RJ45 10GBase-T ports 1 RJ45 GbE port (IPMI Shared LAN) USB 2 USB 2.0 ports (2 headers), 5 USB 3.0 ports (4 rear + 1 Type A) Video Output 1 VGA port Serial Port / Header 1 COM Port (1 header) 1 COM Port in RJ45 Socket TPM TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x8 Option for Slot 6 or Slot 7 M.2 1 M-Key and 1 B-Key M-Key Form Factor: 2242/2280 M-Key Interface: PCI-E3.0 x2/SATA B-Key Form Factor: 3042/2280 B-Key Interface: PCI-E3.0 x2/SATA/USB3 System BIOS BIOS Type AMI UEFI BIOS Features UEFI 2.4 SMBIOS 2.7.1 Management Software IPMI2.0, NMI, SuperDoctor® 5, Watchdog Power Configurations ATX Power connector +12V DC Power Input CPU thermal trip support for processor protection Power-on mode for AC power recovery PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 6 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, System temperature, VBAT FAN 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control, Support 3-pin fans (w/o speed control), System level control, Thermal control tachometer fan connectors Temperature CPU thermal trip support LED UID/Remote UID Other Features 12V DC or ATX Power Source, 4-pin 12v DC power connector, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Innovation Engine, Intel® QuickAssist Technology , M.2 NGFF connector, RoHS, SDDC, System level control, UID, WOL Operating Environment Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F) Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
