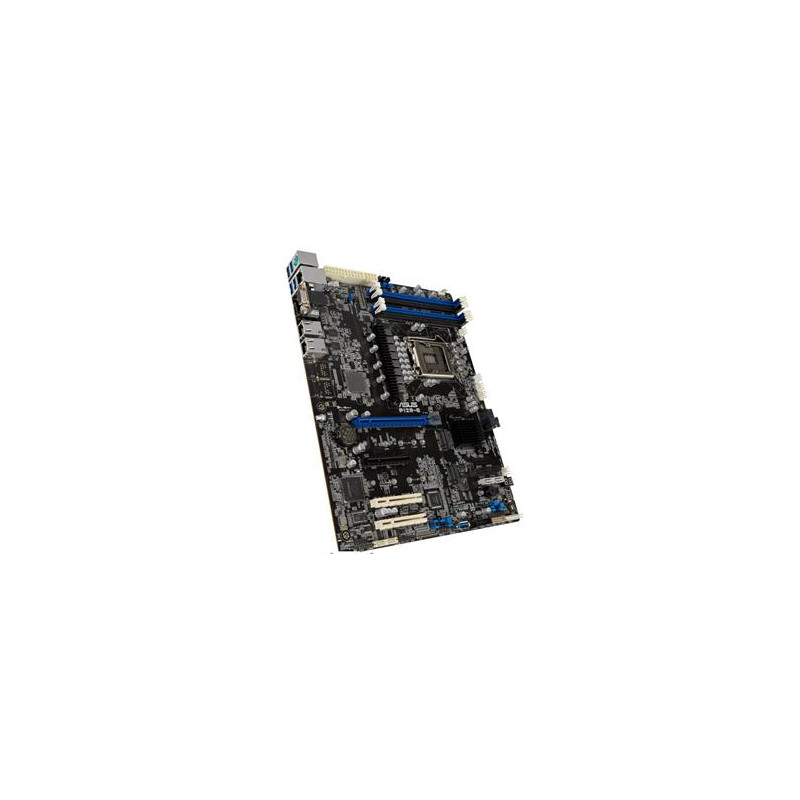

ASUS P12R-E LGA-1200, C256, ATX, 4DIMM, 1*PCIe x16 slot, 3*PCIe x8 slots, 2*M2, 2 x Intel® I210AT + 1 x Mgmt LAN

Processor / System Bus 1 x Socket LGA1200 Intel® Pentium® Processors Intel® Xeon® E processors Core Logic Intel® C256 Chipset Memory Total Slots : 4 (2-channel) Capacity : Maximum up to 128GB UDIMM Memory Type : DDR4 3200/2933/2666 UDIMM Memory Size : 32GB, 16GB, 8GB * Refer to support page for more information Expansion Slots Total Slot : 4 Slot Location 1 : PCI-E x8 (Gen3 X4 Link) Slot Location 2 : PCI-E x8 (Gen3 X4 Link) Slot Location 4 : PCI-E x8 (Gen4 X8 Link) Slot Location 6 : PCI-E x16 (Gen4 X16 Link), Auto switch to x8 link if slot 4 is occupied Form Factor ATX (12"x9.6", 305mm x 244mm) ASUS Features FAN speed control Rack Ready (Rack and Pedestal dual use) ASUS Control Center Storage Storage Controller : 8 x SATA3 6Gb/s ports by 4 Mini-SAS HD connectors 2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode *1 SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card Networking 2 x Intel® I210AT + 1 x Mgmt LAN Graphic Aspeed AST2600 with 64MB VRAM *2 On Board I/O 1 x VGA Header*2 1 x HDMI*3 1 x TPM header 1 x COM port 1 x PS/2 KB/MS port 1 x Onboard header for optional management card 6 x Fan Header , 4pin 1 x SMBus 1 x Chassis Intruder 4 x Front LAN LED 1 x Serial Port Header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 2 x M.2 Connector 2 x USB3.2 Gen2 ports 2 x USB3.2 Gen1 ports 1 x USB3.2 Gen1 header Back I/O Ports 2 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 1 x HDMI Port (useable only with iGPU) 1 x VGA Port (VGA from BMC) 2 x GbE LAN + 1 x Mgmt LAN 1 x PS/2 KB/Mouse Management Solution ASUS Control Center Enterprise (Optional) ASMB10-iKVM for KVM-over-Internet(Optional) Weight Gift Box (1-in-1) Net Weight : 0.76 KG Gross Weight : 1.3 KG Bulk Pack (10-in-1) Net Weight : 6.9 KG Gross Weight : 9.5 KG Environment Operation temperature: 10? ~ 50?* Non operation temperature: -40? ~ 70? Non operation humidity: 20% ~ 90% ( Non condensing) *The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference. Accessories Gift Box (1-in-1) 1 x Support CD 1 x I/O shield 4 x SATA 6G cables 1 x Plate for LGA1200 Bulk Pack (10-in-1) 1 x Support CD 1 x I/O shield 1 x Plate for LGA1200 Monitoring CPU Temperature Fan RPM Note *1.Gen4 x4 Link & Gen3 x2 Link,gray SATA port will disable when M.2 is SATA signal *2.VGA from BMC *3.HDMI (useable only with iGPU)
