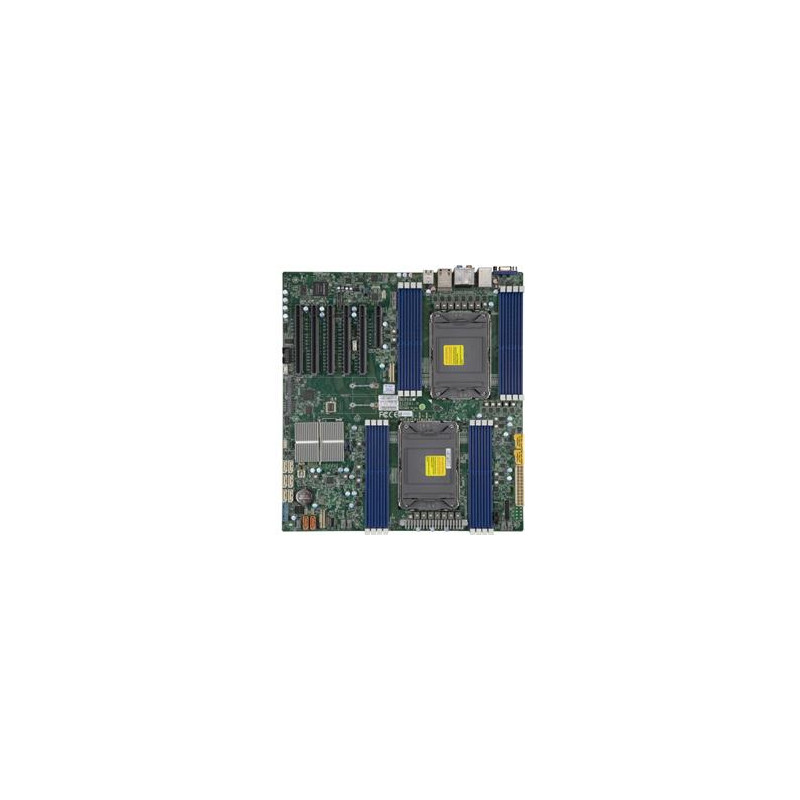

SUPERMICRO MB 2xLGA4189, iC621A, 16x DDR4 ECC, 4xNVMe, 10xSATA3, 2x M.2, 6x PCIe4.0, 2x 1Gb LAN,IPMI

Product SKUs MBD-X12DAi-N6 X12DAi-N6 Physical Stats Form Factor E-ATX Dimensions 12" x 13" (30.48cm x 33.02cm) Processor/Cache CPU 3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s System Memory Memory Capacity Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 6TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 16 DIMM slots; Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode. Memory Type 3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes 8GB, 16GB, 32GB, 64GB, 128GB, 256GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C621A SATA Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2600 BMC Network Controllers Dual LAN with Intel® i210 Gigabit Ethernet Controller Audio 7.1 HD Audio Graphics ASPEED AST2600 BMC Input / Output USB 6 USB 3.2 Gen1 ports (4 rear + 2 via headers)2 USB 3.2 Gen2 ports (1 Rear Type A Video Output 1 VGA D-Sub Connector port Serial Port / Header 1 COM Port (1 header) TPM 1 TPM Header Expansion Slots PCI-E 5 PCI-E 4.0 x16, 1 PCI-E 4.0 x8 M.2 M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 Form Factor: 2280/22110 Key: M-Key System BIOS BIOS Type AMI UEFI Management Software Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SPM, SSM, SUM, SuperDoctor® 5, Watchdog PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 8 -fan status, CPU, CPU temperature, Memory temperature, Memory Voltages, Monitors CPU voltages, PCH temperature, System temperature, VBAT, VRM temperature Temperature CPU thermal trip support, Monitoring for CPU and chassis environment LED CPU / System Overheat LED, BMC/IPMI Heartbeat LED, Power LED Other Features ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, CPU thermal trip support for processor protection, NCSI header, Node Manager Support, RoHS, RoT, UID, WOL Operating Environment Operating Temperature Range 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
