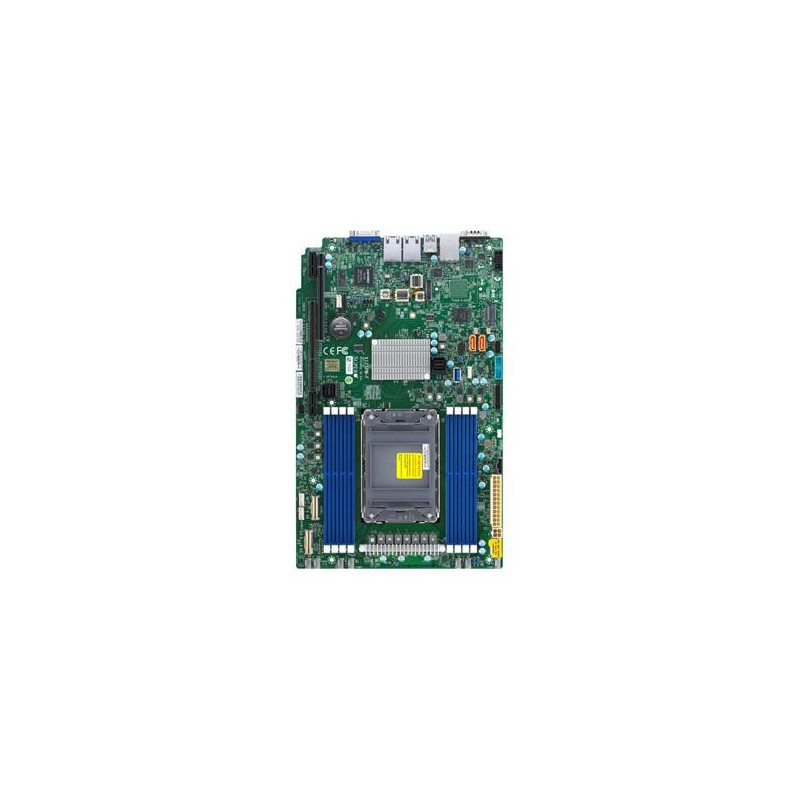

SUPERMICRO MB 1xLGA4189, iC621, 8x DDR4 ECC, 4xNVMe, 10xSATA3, 1xM.2, PCIe 4.0 (x32,x16),2x 1Gb LAN,IPMI, WIO

Product SKUs MBD-X12SPW-F X12SPW-F Physical Stats Form Factor Proprietary WIO Dimensions 8" x 13" (20.32cm x 33.02cm) Processor/Cache CPU 3rd Gen Intel® Xeon® Scalable processors Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP Cores / Cache Up to 40 cores System Memory Memory Capacity Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots Memory Type N/A DIMM Sizes RDIMM: 8GB, 16GB, 32GB, 64GB LRDIMM: 64GB, 128GB 3DS LRDIMM: 128GB, 256GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C621A SATA Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2600 BMC Network Controllers Dual LAN with 1GbE with Intel® I210 Graphics ASPEED AST2600 BMC Input / Output SATA 10 SATA3 (6Gbps) ports LAN 2 RJ45 Gigabit Ethernet LAN ports USB 4 USB 2.0 ports (2 rear + 2 via headers) 5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A) Video Output 1 VGA port Serial Port / Header 2 COM Ports (1 rear, 1 header) TPM TPM Header Expansion Slots PCI-E 1 PCI-E 4.0 x16 Right Riser Slot, 1 PCI-E 4.0 x32 Left Riser Slot M.2 M.2 Interface: PCI-E 3.0 x4 and SATA Form Factor: 2280, 22110 Key: M-Key System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.0 RTC (Real Time Clock) Wakeup SMBIOS 3.0 or later Management Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, Supports system management utility, VBAT Temperature CPU thermal trip support, PECI LED CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED Other Features ACPI power management, Control of power-on for recovery from AC power loss, RoHS, UID, WOL Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X12SPW-F 1 X12SPW-F Motherboard I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X12SPW-F 1 X12SPW-F Motherboard I/O Cables CBL-0044L 2 57.5 cm SATA FLAT S-S PBF QRG MNL-2246-QRG 1 Motherboard Quick Reference Guide Optional Parts List Name Part Number Qty Description TPM security module AOM-TPM-9670H 1 SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor TPM security module AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor TPM security module AOM-TPM-9671H 1 SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor TPM security module AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor Chassis (Optimized for X12SPW-F) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SC116AC10-R706WB3 SC815TQC4-605WB2 SC815TQC4-R504WB3 SCLA15TQC-R504W SCLA15TQC-563W SCLB16AC2-R504W SC825BTQC-R609WB
