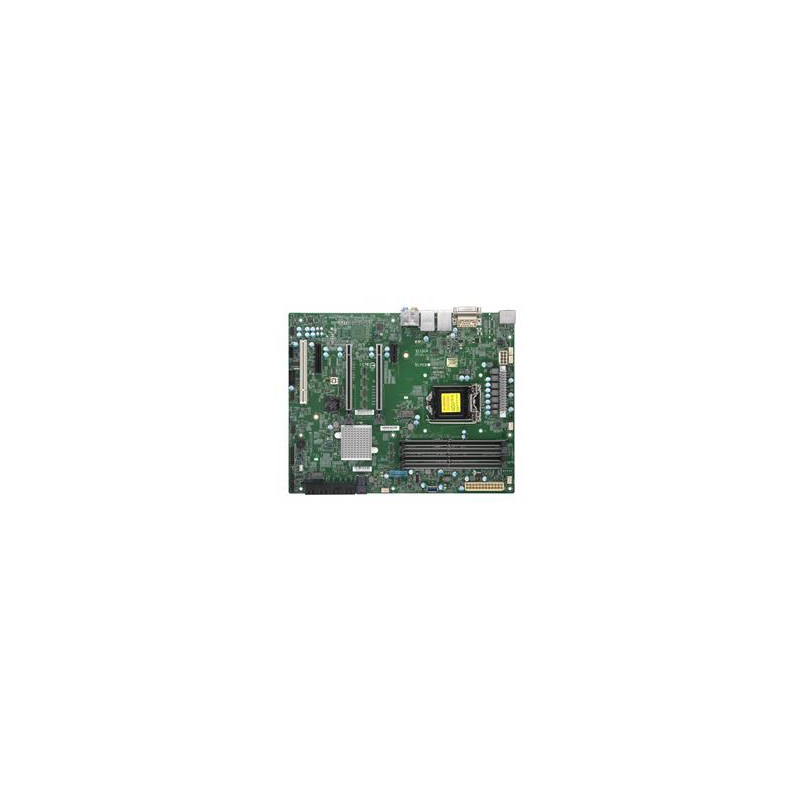

SUPERMICRO MB 1xLGA1151 (Xeon E-2xx,core), C246,4xDDR4,8xSATA3,2xM.2,4xPCIe 3.0 (x16,x8,x4,x1),HDMI,DP,DVI,Audio,2x LAN

Product SKUs MBD-X11SCA X11SCA Physical Stats Form Factor ATX Dimensions 12" x 9.6" (30.48cm x 24.38cm) Processor/Cache CPU 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP System Memory Memory Capacity Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots Memory Type 2666/2400/2133/1866/1600MHz ECC/Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM DIMM Sizes 1GB, 2GB, 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V *Future support for 128GB via a BIOS update On-Board Devices Chipset Intel® C246 SATA Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Network Controllers Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Intel® PHY I219LM LAN controller Support vPro Audio ALC 888S HD Audio Graphics Intel UHD P630 graphic(For CPU Xeon E-21XXG/E-22XXG series only) Input / Output LAN 2 1GbE LAN ports USB 2 USB 2.0 ports (2 via headers) 4 USB 3.1 Gen1 ports (2 Rears Type A, 2 via headers) 4 USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C, 1 via header, 1 Type A) Video Output 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port, Intel UHD P630 graphic(For CPU Xeon E-21XXG/E-22XXG series only) Serial Port / Header 1 COM Port (1 header) TPM 1 TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x4, 1 PCI-E 3.0 x1, 2 PCI-Ex16 slots are running at NA/16, or 8/8 1 - 5V PCI 32bit M.2 M.2 Interface: 2 PCI-E 3.0 x4 Form Factor: 2242/2260/2280/22110 Key: M-Key M.2#1 are shared with PCI-Ex4 slot, M.2#2 is shared with U.2 System BIOS BIOS Type UEFI 128Mb Management Software AMT, SuperDoctor® 5, vPro, Watchdog System Management Software SuperDoctor 5 version. 5 Power Configurations ACPI Power Management ATX Power connector Power-on mode for AC power recovery Keyboard Wakeup from Soft-Off PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 5 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, VBAT FAN 5 fans with tachometer status monitoring Temperature N/A LED Standby alert LED Other Features 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, WOL Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11SCA 1 X11SCA Motherboard SATA cable CBL-0044L 2 SATA 3 Cable IO shield MCP-260-00122-0N 1 X11SCA Series IO Shield M.2 SSD Holder MCP-450-00005-0B or MCP-450-00006-0B 2 M.2 SSD Holder Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X11SCA 1 X11SCA Motherboard SATA cable CBL-0044L 6 SATA 3 Cable IO shield MCP-260-00122-0N 1 X11SCA Series IO Shield M.2 SSD Holder MCP-450-00005-0B or MCP-450-00006-0B 2 M.2 SSD Holder Quick Reference Guide MNL-2087-QRG 1 X11SCA Series Quick Reference Guide Optional Parts List Name Part Number Qty Description TPM security module (optional, not included) AOM-TPM-9671V 1 TPM security module (optional, not included) AOM-TPM-9671V-C 1 TPM security module (optional, not included) AOM-TPM-9670V 1 TPM security module (optional, not included) AOM-TPM-9670V-C 1 Chassis (Optimized for X11SCA) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SC732D4-500B SC732D4-903B SC732D3-1200B SCGS5A-753K SCGS5A-753B = Most optimized Chassis for SuperServer Configuration Blue color = Compatible Green color = Global SKU & Compatible Red dot & green color = Optimized + Global SKU Server (Optimized for X11SCA) Server Name SYS-5039C-T
