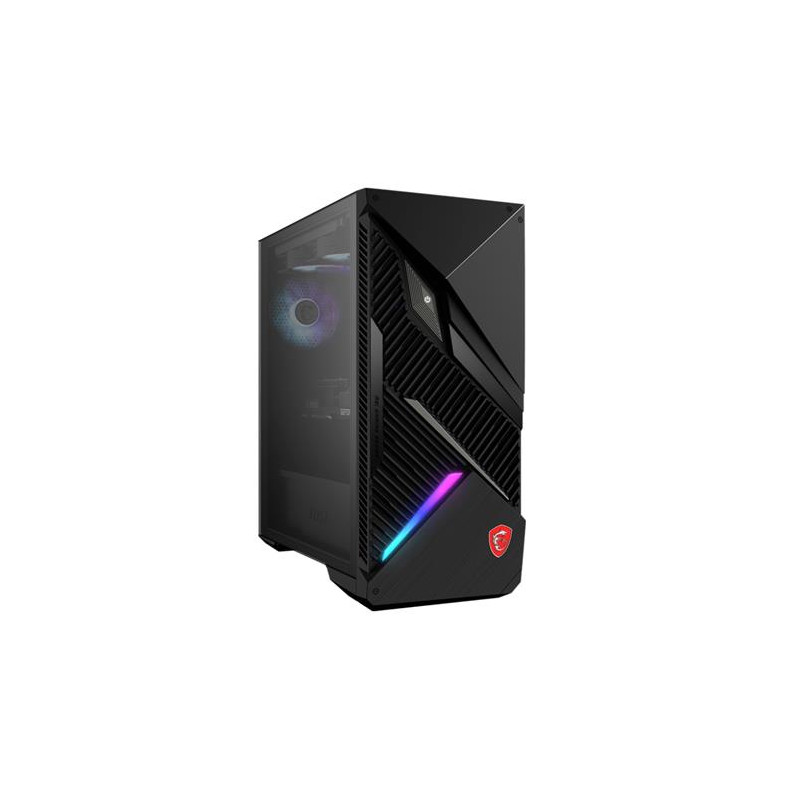

MSI MPG Infinite X2 13FTD-008EU i7-13700KF 32GB 1TB SSD RTX 3070 ventus 2X OC LHR, 8GB Win 11 home

MSI MPG Infinite X2 13FTD-008EU/i7-13700KF/32GB/1TB SSD/RTX 3070 ventus 2X OC LHR, 8GB/Win 11 home

MKT Name MPG Infinite X2 13FTD
Entity MKT Name MPG Infinite X2 13FTD-008EU-B7137KF307832GS1TX11MALZ9
MKT Spec MPG Infinite X2 13FTD-008EU
Website Name MPG Infinite X2 12th
Color ID1/Black-Black-Black
System/Barebone System
Processor
CPU Core Name RAPTOR LAKE
CPU Socket LGA-1700pin
CPU Number Intel Core i7-13700KF
CPU Clock 3.4GHz
CPU Cores 16
TDP 125W
CPU Cooler Liquid cooling
Max Turbo Frequency up to 5.40 GHz
Cache 30 MB Intel® Smart Cache
Threads 24
Chipset
Chipsets Z690
MB Ori. MKT Name N/A
Graphics
GPU1 Vendor NVIDIA
GPU1 MKT Name GeForce RTX 3070
GPU1 Number RTX 3070 LHR VENTUS 2X
GPU1 VRAM Size 8G
VGA I/O Port HDMIx1, Display Portx3
VGA MKT Name GeForce RTX 3070 VENTUS 2X 8G OC LHR
Memory
Memory Size 32GB(16GB*2)
Memory Type DDR5 SDRAM
Memory Speed 2400(4800)MHz
Module Type U-DIMM
Memory Slot 2
Memory Slot(Total) 4
Memory Slot(Free)
Max Capacity Max 128GB
Storage
SSD Interface PCIe GEN4x4 NVMe
SSD Form Factor M.2-2280 M-KEY
SSD Config 1TB*1
SSD Size 1TB,1TB
HDD1 Interface N/A
HDD1 Form Factor N/A
HDD1 Size N/A
HDD1 RPM N/A
ODD(Type) N/A
ODD Height N/A
ODD Type
mSATA slots N/A
mSATA slots(Total) NA
mSATA slots(Free)
M.2 slots 1
M.2 slots(Total) 4
M.2 slots(Free)
2.5" Drive Bays N/A
2.5" Drive Bays(Total) 2
2.5" Drive Bays (Free)
3.5" Drive Bays N/A
3.5" Drive Bays(Total) 2
3.5" Drive Bays(Free)
Communications
LAN Intel I225-LM
WLAN INTEL/AX211.NGWG.NV
WLAN Version Wi-Fi 6E+BT
BT Version 5.2
VESA
VESA size NA
Audio
Audio Chipset Realtek ALC897
Audio Type 7.1 Channel HD Audio
Speaker NA
I/O Ports (Front)
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
USB 3.2 Gen 2 Type C 1
USB 3.2 Gen 2 Type A NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 1 Type A 2
USB 2.0 Type A NA
USB 2.0 Type C NA
Thunderbolt NA
Audio Mic-in 1
Audio Headphone-out 1
Audio Headphone-out (HiFi/SPDIF) NA
Mic-in/Headphone-out combo NA
Card Reader N/A
I/O Ports (Rear)
USB 3.2 Gen 2x2 Type C (R) 1
USB 3.2 Gen 2x2 Type A (R) NA
USB 3.2 Gen 2 Type C (R) NA
USB 3.2 Gen 2 Type A (R) 1
USB 3.2 Gen 1 Type C (R) NA
USB 3.2 Gen 1 Type A (R) 2
USB 2.0 Type C (R) NA
USB 2.0 Type A (R) 4
Thunderbolt (R) NA
RJ45 1
WiFi Antenna 1
Card Reader (R) NA
VGA out NA
VR-Link NA
HDMI out 1x (v2.1)
DP out 1x (v1.4)
mini DP in NA
mini DP out NA
PS/2 1
COM Port NA
DVI-D out NA
Audio jack 6
S/PDIF NA
Flash BIOS Button 1
Power
Power 1000W
Power Certification 80PLUS GOLD
Formfactor ATX
Type POWER SUPPLY
Operating Systems
OS MULTI-LANGUAGE(WIN 11 HOME ADVANCED OLC OA3)
OS Type W11MA
Operating Systems Windows 11 Home
Pallet
W/O KB Pallet Q'ty (by air) TBD
W/O KB Pallet Q'ty (by sea) 20
W/KB Pallet Q'ty (by air) TBD
W/KB Pallet Q'ty (by sea) 20
Dimension&Weight
Product Dimension (WxDxH) (mm) 215 x 429.6 x 489.6
Product Dimension (WxDxH) (inch) 8.46 x 16.91 x 19.28
Inside Carton Dimension (WxDxH) (mm) N/A
Inside Carton Dimension (WxDxH) (inch) N/A
Outer Carton Dimension Standard (WxDxH) (mm) 314 x 576 x 565
Outer Carton Dimension Standard (WxDxH) (inch) 12.36 x 22.68 x 22.24
Outer Carton Dimension with bundle item (WxDxH) (mm) 314 x 576 x 565
Outer Carton Dimension with bundle item (WxDxH) (inch) 12.36 x 22.68 x 22.24
Weight (Net kg) 14
Net Weight (lbs) 30.86
Weight (Gross kg) 16.20
Gross Weight (lbs) 35.71
Liter 45L
Pint 45L
Warranty
Warranty 24months
SW Feature - 3rd Party Royalty
Nahimic Sound effect N/A
HDMI Royalty Y
Mechanical and Environmental
Operating, Storage Temperature 0° C ~ 35° C ; -20° C ~ 60° C
Operating, Storage Humidity 0% ~ 85%;0% ~ 90%
Regulatory Compliance FCC(Class B), CB/CE, UL(CUL), BSMI, RCM(C-Tick)
Accessories
AC Adaptor N/A
Power Cord 1
Warranty Card N/A
Quick Guide 4
User Manual N/A
VESA Mount kit N/A
Keyboard N/A
Keyboard Interface N/A
Mouse N/A
Mouse Interface N/A
Model Info
Series Name Gaming
Segment Name Infinite
Segment Name2 MPG Infinite X2
Segment Name3 MPG Infinite X2 13FTD
Barcode Info
EAN 4711377018951
