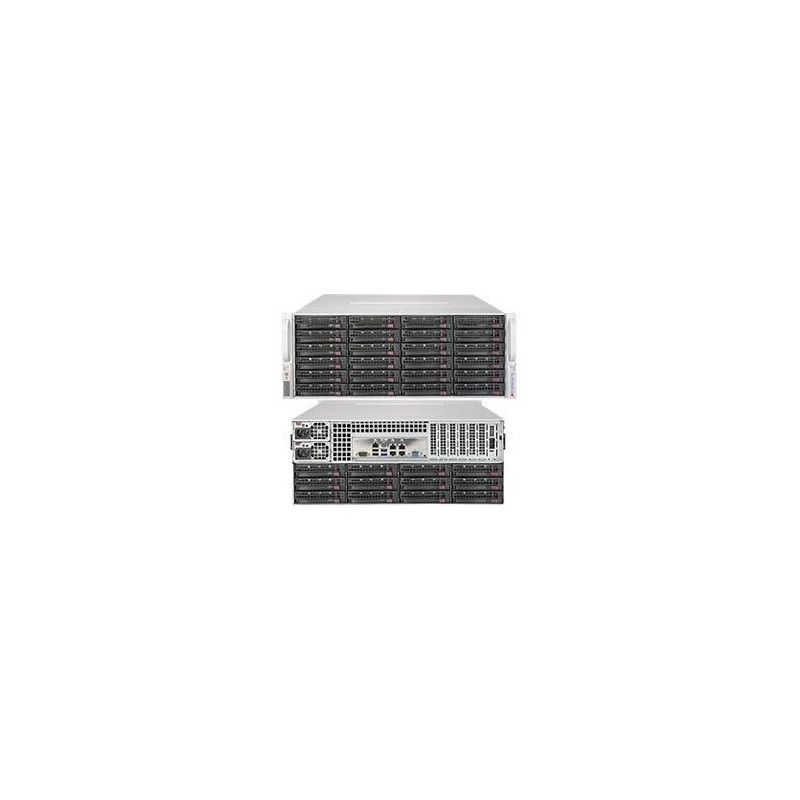

SUPERMICRO 4U SuperStorage server RAID 12Gb s SAS SATA 36xHS HDD (expand.24front+12rear), HW RAID LSI 3108, 2x1200W,IPMI

Product SKUs SSG-6049P-E1CR36H SuperStorage 6049P-E1CR36H (Black) Motherboard Super X11DPH-T Processor/Cache CPU Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡, 3 UPI up to 10.4GT/s Support CPU TDP 70-205W Cores Up to 28 Cores Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) System Memory Memory Capacity 16 DIMM slots Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM†† Memory Type 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. On-Board Devices Chipset Intel® C622 chipset SAS SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID RAID 0, 1, 5, 6, 10, 50, 60 SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10 Network Controllers Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Graphics ASPEED AST2500 BMC Input / Output LAN 2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port USB 4 USB 3.0 ports (rear) 1 Type A VGA 1 VGA port Serial Port / Header 1 Fast UART 16550 port / 1 Header System BIOS BIOS Type 256Mb AMI UEFI Management Software Intel® Node Manager IPMI 2.0 NMI SPM, SUM SuperDoctor® 5 Watchdog PC Health Monitoring CPU Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator FAN Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment Thermal Control for fan connectors Chassis Form Factor 4U Rackmount Model CSE-847BE1C4-R1K23LPB Dimensions Width 17.2" (437mm) Height 7" (178mm) Depth 27.5" (699mm) Weight Gross Weight: 102.5 lbs (46.4 kg) Net Weight: 65.5 lbs (29.7 kg) Available Colors Black Front Panel Buttons Power On/Off button System Reset button LEDs Power status LED Hard drive activity LED Network activity LEDs System Information LED Power fail LED Expansion Slots PCI-Express 3 PCI-E 3.0 x16 slot 4 PCI-E 3.0 x8 slots Slot 2 & 3 occupied by controller and JBOD Expansion Port Drive Bays Hot-swap 36 Hot-swap 3.5" SAS3/SATA3 drive bays 2 Hot-swap 2.5" SATA3 drive bays (rear) Optional 4 U.2 NVMe 2 M.2 NVMe Backplane SAS3/SATA3 single expander per backplane System Cooling Fans 7x 8cm high-performance PWM fans Redundant cooling Power Supply (76mm Width) 1200W Redundant Power Supplies with PMBus Total Output Power 1000W/1200W Dimension (W x H x L) 76 x 40 x 336 mm Input 100-127Vac / 15-12A / 50-60Hz 200-240Vac / 8.5-7A / 50-60Hz 200-240Vdc / 8.5-7A (for CCC only) +12V Max: 83A / Min: 0A (100-127Vac) Max: 100A / Min: 0A (200-240Vac) Max: 100A / Min: 0A (200-240Vdc) +5Vsb Max: 4A / Min: 0A Output Type 19 Pairs Gold Finger Connector Certification Platinum Level Certified95%+ Titanium Level [ Test Report ] Operating Environment RoHS RoHS Compliant Environmental Spec. Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
