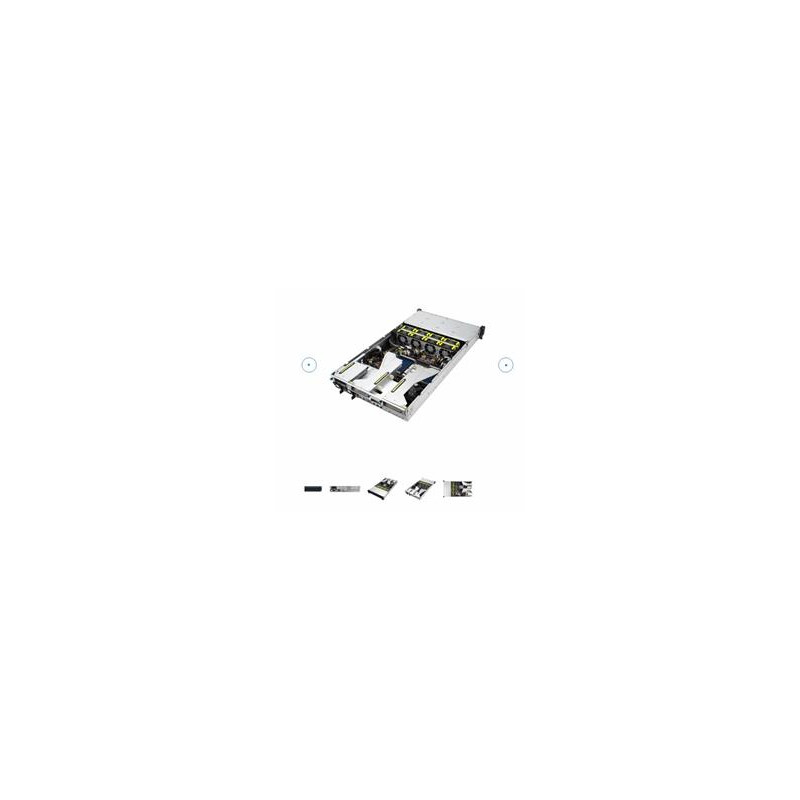

ASUS 2U RS521A-E12-RS24U 1 xSP5 (LGA 6096) 24xDDR5 24NVMe RH OCP GPU 1GB LAN 2KW

Serverová jednotka pro 5. a 4. generaci AMD EPYC procesorů, až 2,304 GB DDR5 RAM, s 24 NVMe hot-swap bay, až 5 PCIe Gen5 sloty, 2kW redundantní napájení. Chlazení vzduchem, podpora pro víc než 4 GPU karty. Rozměry 840 x 449 x 88.1 mm. Ideální pro náročné aplikace.
Na objednávku
89 941 Kč bez DPH 74 331 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
ASUS
2369835
90SF03X1-M000R0
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu

  • Processor / System Bus

    1 x Socket SP5 (LGA 6096)
    5th Generation AMD EPYC Processors or 4th Generation AMD EPYCProcessors
    AMD EPYC™ 9005/9004 Series Processors (Air cool with STD HS up to 360W)

  • Memory

    24 x DIMM slots
    DDR5 5600 RDIMM/ 3DS RDIMM
    Maximum 2,304GB
    with AMD EPYC™ 9005 series processors
    2DPC (1 of 2) up to 5200
    2DPC (2 of 2, 1R+1R ) up to 4400,
    2DPC (2 of 2, 2R+2R ) up to 4000
    with AMD EPYC™ 9004 series processors
    2DPC (1 of 2) up to 4800,
    2DPC (2 of 2, 1R+1R ) up to 4000
    2DPC (2 of 2, 2R+2R ) up to 3600
    * Refer to support page for more information

  • Expansion Slots

    16 NVMe configuration SKU:
    Up to 5 PCIe Gen5 slots + 1 OCP3.0
    2 x PCIe Gen5 x16, FHFL or 4 x PCIe Gen5 x8, FHFL
    1 x PCIe Gen5 x8, LP
    1 x OCP 3.0 Slot ( (PCIe Gen5 x16)

    24 NVMe configuration SKU:
    Up to 1 PCIe Gen5 slots + 1 OCP3.0
    1 x PCIe Gen5 x8, LP
    1 x OCP 3.0 Slot ( (PCIe Gen5 x16)

  • Storage

    Storage Controller :
    CPU Integrated
    Optional kits Controller :
    Broadcom Mega RAID 9560-16i
    ASUS PIKE II 3008-8i 8-port SAS 12G HBA card

  • Drive Bays

    Front bays:
    16 NVMe configuration SKU:
    24 x 2.5” hot-swap drive bays
    Support 16x NVMe + 8 SAS/SATA
    *RAID/PIKE cable is needed for 8 SAS/SATA
    24 NVMe configuration SKU:
    24 x 2.5” hot-swap drive bays
    Support 24x NVMe

    Rear bays:2 x 2.5” SATA hot-swap drive bays
    2 x M.2 connectors

  • Networking

    1 x Dual Port Intel I350-AM2 GbE LAN Controller
    1 x Management Port

  • Graphic

    Up to 4 single-slot or 2 double-slot GPU cards
    *24 NVMe can‘t support GPU

  • Multi-GPU Support

    Please find the latest GPU support from https://servers.asus.com/support/GPU

  • Front I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x VGA port

  • Rear I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x VGA port
    1 x Management port
    2 x 1GbE LAN ports

  • Switch/LED

    Front:
    1 x Power Button/LED
    1 x Reset Switch
    1 x Location Button/LED
    1 x HDD Access LED
    1 x Message LED
    LAN 1-2 LED
    Rear:
    1 x Port80 LED (Q-Code)
    1 x Power Button/LED
    1 x Location Button/LED
    1 x Message LED

  • OS Support

    Please find the latest OS support from https://servers.asus.com/support/os

  • Management Solution

    ASUS Control Center
    ASUS ASMB11-iKVM (on-board)

  • Regulatory Compliance

    CB, CE, RCM, FCC(Class A)

  • Dimensions

    840mm x 449mm x 88.1mm (2U)
    33.07” x 17.68” x 3.47

  • Form Factor

    2U

  • Weight

    (approximate)
    Net Weight: 19.14 kg
    Gross Weight: 26.63 kg

  • Power Supply

    1+1 Redundant 2000W/1600W 80 PLUS Titanium
    Power Supply

  • Environment

    Operating temperature: 10°C – 35°C
    Non operating temperature: -40°C – 70°C
    Non operating humidity: 20% – 90% (Non condensing)
    Note
    Operating Temperature based on configurations

  • Optional Items

    Certain high TDP CPUs may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.
