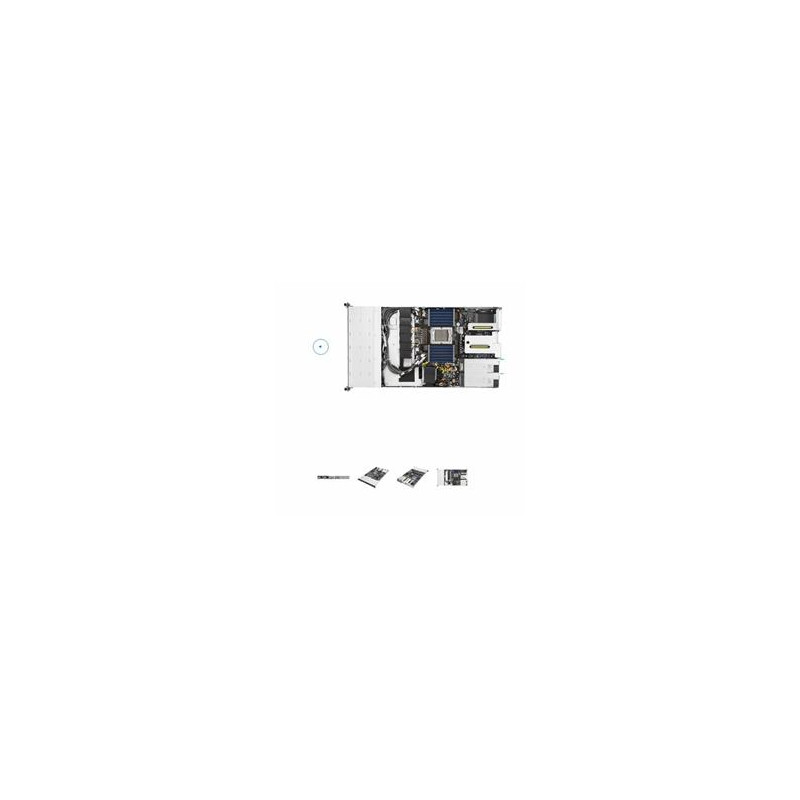

ASUS 1U RS501A-E12-RS12U 1 xSP5 (LGA 6096) 24xDDR5 12 x SATA SAS NVME OCP GPU 2x1GB LAN 1,6KW

Server podporuje procesory AMD EPYC 9005/9004, až 24 DIMM slotů pro DDR5 RAM s maximální kapacitou 2,304 GB. Nabízí 12 hot-swap úložných přihrádek a až 3 rozšiřující PCIe sloty. Obsahuje redundatní napájení 1,6 kW a širokou škálu síťových možností. Kompaktní 1U formát.
Na objednávku
73 099 Kč bez DPH 60 412 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
ASUS
2369838
90SF03Y1-M000D0
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu

  • Processor / System Bus

    1 x Socket SP5 (LGA 6096)
    5th Generation AMD EPYC Processors or 4th Generation AMD EPYCProcessors
    AMD EPYC™ 9005/9004 Series Processors (Air cool with EVAC up to 360W)

  • Memory

    24 x DIMM slots
    DDR5 5600 RDIMM/ 3DS RDIMM
    Maximum 2,304GB

    with AMD EPYC™ 9005 series processors
    2DPC (1 of 2) up to 5200
    2DPC (2 of 2, 1R+1R ) up to 4400,
    2DPC (2 of 2, 2R+2R ) up to 4000

    with AMD EPYC™ 9004 series processors
    2DPC (1 of 2) up to 4800,
    2DPC (2 of 2, 1R+1R ) up to 4000
    2DPC (2 of 2, 2R+2R ) up to 3600

    * Refer to support page for more information

  • Expansion Slots

    Up to 3 PCIe Gen5 slots + 1 OCP3.0
    1 x PCIe x16 slot (Gen5 x16 link, FH, HL)
    1 x PCIe x16 slot (Gen5 x16 link, LP, HL)
    1 x PCIe x16 slot (Gen5 x8 link, LP, HL)
    1 x OCP3.0 socket (Gen5 x16 link)

  • Storage

    Storage Controller :
    CPU Integrated
    Optional kits Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G HBA card

  • Drive Bays

    Front bays:
    12 x 2.5” Hot-swap Storage Bays
    12 x SATA/SAS/NVME
    Mid storage bays SKU support up to 16NVMe/SATA/SAS**

    *SAS support only from optional SAS
    HBA/RAID card
    **Internal Storage Bays is designated as build-to-order only, owing to quality or installation concerns.
    2 x M.2 connectors

  • Networking

    1 x Dual Port Intel I350-AM2 GbE LAN Controller
    1 x Management Port

  • Graphic

    Up to 2 single-slot GPU cards

    *Internal Storage Bays SKU only support 1 single-slot GPU card

  • Multi-GPU Support

    Please find the latest GPU support from https://servers.asus.com/support/GPU

  • Rear I/O Ports

    2 x USB 3.2 Gen1 ports
    1 x VGA port
    1 x Management port
    2 x 1GbE LAN ports

  • Switch/LED

    Front:
    1 x Power Button/LED
    1 x Location Button/LED
    1 x Message LED
    LAN 1-2 LED
    Rear:
    1 x Port80 LED (Q-Code)
    1 x Power Button/LED
    1 x Location Button/LED
    1 x Message LED

  • OS Support

    Please find the latest OS support from:
    https://servers.asus.com/support/os

  • Management Solution

    ASUS Control Center
    ASUS ASMB11-iKVM (on-board)

  • Regulatory Compliance

    BSMI, CB, CE, RCM, FCC(Class A)

  • Dimensions

    842.5mm x 449mm x 43.85mm (1U)
    33.17" x 17.68" x 1.73"

  • Form Factor

    1U

  • Weight

    (approximate)
    Net Weight: 14.16 kg
    Gross Weight: 19.16 kg

  • Power Supply

    1+1 Redundant 1600W 80 PLUS Titanium
    Power Supply
    1+1 Redundant 1200W 80 PLUS Platinum
    Power Supply

  • Environment

    Operating temperature: 10°C – 35°C
    Non operating temperature: -40°C – 70°C
    Non operating humidity: 20% – 90% (Non condensing)

    Note
    Operating Temperature based on configurations

  • Optional Items

    Rail Kit:
    Tool-less Friction Rail Kit
    1.2m Half Extension Ball bearing Type Rail Kit
    1m Half Extension Ball bearing Type Rail Kit
    1U Height Full Extension Ball bearing Type Rail Kit
    *Please consult sales if  cable arm needed.
    1U Front Bezel

  • Note

    Certain high TDP CPUs may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.
