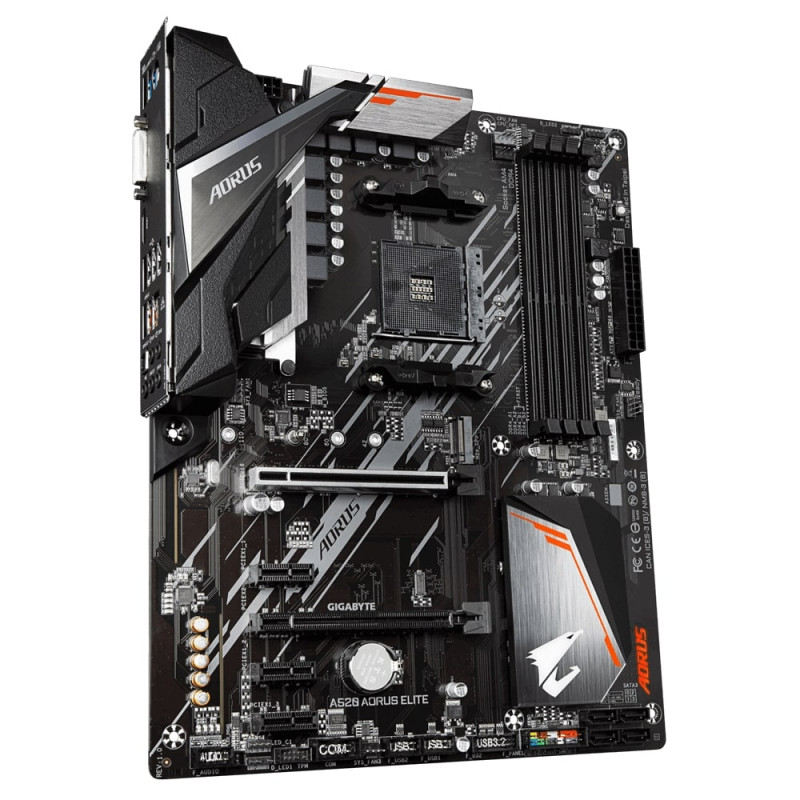

GIGABYTE A520 AORUS ELITE AM4 ATX

Chipset: AMD A520

Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
Patice procesoru: AM4

Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti:
3rd Gen AMD Ryzen™ Processors:
4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4
*Dual channel memory architecture
*Podpora ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
*Podpora non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
*Podpora Extreme Memory Profile (XMP) memory modules

Grafická karta:
*Integrovaná v 3. generaci AMD Ryzen™ s Radeon™ grafickým procesorem (na základě cpu)

Zvuková karta:
*Realtek® ALC1200 codec

Síťová karta:
*Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Rozšiřující sloty:
*1x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
*1x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
*3x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2, PCIEX1_3)

RAID řadič: 0, 1, 10

SATA:
*4x SATA 6Gb/s ports

M.2:
*1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

USB:
*zadní USB porty ( celkem 8 )
*1x USB 3.2 Gen 2 Type-A port (red)
*3x USB 3.2 Gen 1 ports
*4x USB 2.0/1.1 ports
*přední USB porty ( celkem 6 )
*2x USB 3.2 Gen 1 ports
*4x USB 2.0/1.1 ports

Interní porty:
*1x 24-pin ATX main power connector
*1x 8-pin ATX 12V power connector
*1x CPU fan header
*1x water cooling CPU fan header
*3x system fan headers
*2x addressable LED strip headers
*2x RGB LED strip headers
*1x M.2 Socket 3 connector
*4x SATA 6Gb/s connectors
*1x front panel header
*1x front panel audio header
*1x USB 3.2 Gen 1 header
*2x USB 2.0/1.1 headers
*1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
*1x serial port header
*1x Clear CMOS jumper
*1x Q-Flash Plus button

Externí porty:
*1x PS/2 keyboard/mouse port
*1x DVI-D port
*1x HDMI port
*1x USB 3.2 Gen 2 Type-A port (red)
*3x USB 3.2 Gen 1 ports
*4x USB 2.0/1.1 ports
*1x RJ-45 port
*1x optical S/PDIF Out connector
*5x audio jacks

BIOS: 128 Mbit flash, AMI UEFI BIOS

Stránka výrobce: https://www.gigabyte.com/Motherboard/A520-AORUS-ELITE-rev-10
