Dimensions (WxHxD, mm)
2U
438 x 87 x 730 mm
Motherboard
MZ92-FS0
CPU
AMD EPYC™ 7002 series processor family
Dual processors, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Fully support 280W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Compatible with AMD EPYC™ 7001 series processor family
Chipset
System on Chip
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/ 2933 MHz
- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
Storage
Front side: 12 x 3.5" SATA/SAS hot-swappable HDD/SSD bays from onboard SATA ports
2.5" HDD/SSD supported
Rear side: 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays from onboard SATA ports
Front side default configuration supports:
12 x SATA drives
or
4 x SATA drives
8 x SAS drives via SAS HBA
SAS card is required for SAS devices support
RAID
-
Peripheral Drives
-
Expansion Slots
Riser Card CRS2027:
- 1 x PCIe x8 slot (Gen4 x8), Low profile half-length
- 1 x PCIe x8 slot (Gen4 x8), Low profile half-length
Riser Card CRS2033:
- 1 x PCIe x16 slot (Gen4 x16), FHHL
- 1 x PCIe x8 slot (Gen4 x8), FHHL
- 1 x PCIe x8 slot (Gen4 x8), FHHL
Riser Card CRS2033:
- 1 x PCIe x16 slot (Gen4 x16), FHHL
- 1 x PCIe x8 slot (Gen4 x8), FHHL
- 1 x PCIe x8 slot (Gen4 x8), FHHL
1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth from CPU_0
Supported NCSI function
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2)
Supported NCSI function
1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device
Internal I/O
1 x M.2 slot
1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O
Front side_CBP20C4: 12 x SATA/SAS ports
Rear side_CBP2020: 2 x SATA/SAS ports
Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s per port
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply
2 x 1200W redundant PSUs
80 PLUS Platinum
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
DC Input:
- 240Vdc/ 6A
DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1200W/ 200-240V~ or 240Vdc input
+12V/ 97A
+12Vsb/ 3A
NOTE:
* Select 1600W power supply if using 280W CPU with full loading configuration
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
OS Compatibility
Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019
Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later
SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
Citrix Hypervisor 8.1.0 or later
Weight
Net Weight: 18 kg
Gross Weight: 25.5 kg
System Fans
4 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
982 x 588 x 268 (mm)
Packaging Content

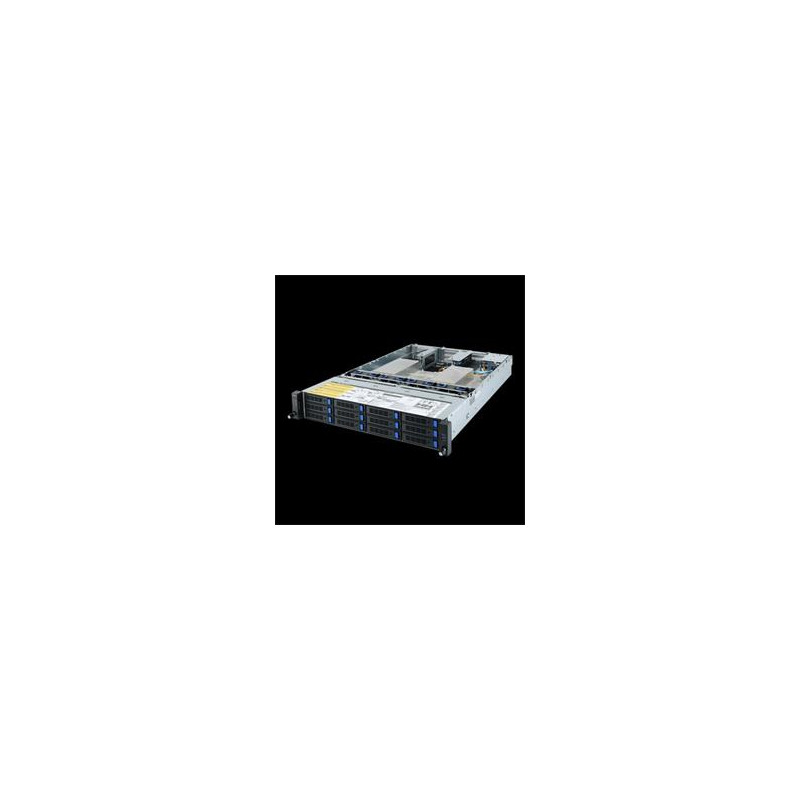

1 x R282-Z90 system
2 x CPU heatsinks
1 x Rail kit
Part Numbers
Barebone package: 6NR282Z90MR-00
Spare parts:
- Motherboard: 9MZ92FS0NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Back plane board_12-port: 9CBP20C4NR-00
- Back plane board_2-port: 9CBP2020NR-00
- Front panel board: 9CFP2001NR-00
- Fan module: 25ST2-883829-D0R
- 4 x NVMe optional kit: 6NR282Z9BSR-00-100
- Power supply: 25EP0-212007-F3S
