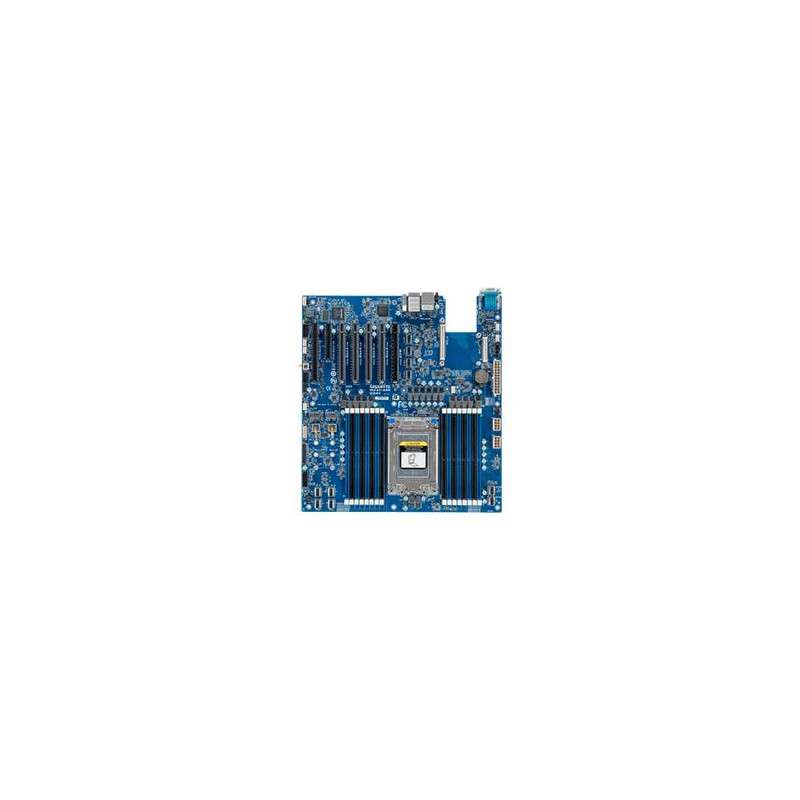

Gigabyte MB server MZ32-AR0, AMD EPYC 7002 family, 16x DDR4DIMMs, 2x 1Gb LAN + OCP, 7xPCIe (5x 4.0 + 2x 3.0), IPMI

Form Factor E-ATX 305W x 330D (mm) CPU AMD EPYC™ 7002 series processor family Single processor, 7nm, Socket SP3 Up to 64-core, 128 threads per processor cTDP up to 240W Fully support 280W NOTE: Please make sure Fan-sink supports over 280W CPU Compatible with AMD EPYC™ 7001 series processor family Socket Socket SP3 Chipset System on Chip Memory 16 x DIMM slots DDR4 memory supported only 8-Channel memory architecture RDIMM modules up to 128GB supported LRDIMM modules up to 128GB supported Memory speed: Up to 3200*/ 2933 MHz - Note: * Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC LAN 2 x 1GbE LAN ports (1 x Intel® I350-AM2) 1 x 10/100/1000 management LAN Video Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp Audio N/A SAS N/A SATA 2 x SlimSAS 4i for 8 x SATA ports RAID N/A Expansion Slots Slot_7: 1 x PCIe x16 (Gen4 x16 bus) slot; shared with 4 x NVMe ports Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot Slot_5: 1 x PCIe x16 (Gen4 x8 bus) slot Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot Slot_2: 1 x PCIe x8 (Gen3 x0 or x8 bus) slot Slot_1: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot; shared with slot_2 1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4; Type2 P5 with NCSI supported) 2 x M.2 slots: - M-key - PCIe Gen3 x4 - Supports NGFF-2242/2260/2280 cards 4 x NVMe ports: - SlimSAS 4i type - PCIe Gen3 x4 per port - Shared with Slot_7 PCIe Gen4 x16 slot Internal I/O 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 10 x SlimSAS connectors 2 x M.2 slots 1 x CPU fan headers 5 x System fan headers 1 x USB 3.0 header 1 x USB 2.0 header 1 x COM_2 header 1 x TPM header 1 x Front panel header 1 x HDD back plane board header 1 x PMBus connector 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper 1 x Buzzer Rear I/O 3 x USB 3.0 1 x VGA 1 x COM_1 2 x RJ45 1 x MLAN 1 x ID button with LED TPM 1 x TPM header with SPI interface Optional TPM2.0 kit: CTM010 OS Supported Windows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 7.6 ( x64) or later Red Hat Enterprise Linux 8.0 ( x64) or later SUSE Linux Enterprise Server 12 SP4 ( x64) or later SUSE Linux Enterprise Server 15 SP1 ( x64) or later Ubuntu 16.04.6 LTS (x64) or later Ubuntu 18.04.3 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.5 EP15 or later VMware ESXi 6.7 Update3 or later VMware ESXi 7.0 or later Citrix Hypervisor 8.1.0 or later Board Management Aspeed® AST2500 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface Dashboard JAVA Based Serial Over LAN HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings PSU Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors Operating Properties Operating temperature: 10°C to 40°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) Retail Packaging Content 1 x MZ32-AR0 1 x I/O shield 1 x Quick start guide 2 x SlimSAS for 8 x SATAIII 6Gb/s cables Single Box dimensions: 409 x 355 x 78 mm Carton dimension: 729 x 415 x 432 mm Quantity: 10 x single box with one carton Bulk Packaging Content 10 x MZ32-AR0 10 x I/O shields Carton dimensions: 600 x 473 x 495 mm Reference Numbers Retail: 9MZ32AR0MR-00 Bulk: 9MZ32AR0NR-00 Part Numbers: - I/O shield: 12AIO-MZ32A0-00R - SlimSAS for 4 x SATAIII 6Gb/s cable: 25CFM-600800-A4R - Fan-sink: 12SF2-01A067-00R ( in option)
