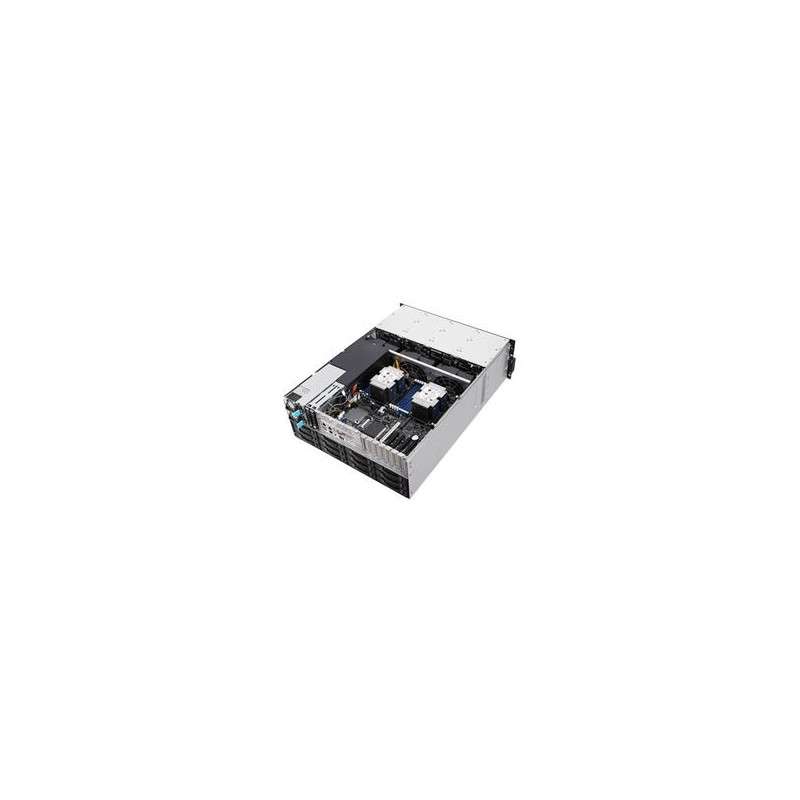

ASUS RS540-E9-RS36-E WOD 2CEE EN WOC WOM WOS 3108 240PD 2G IK9

Processor / System Bus 2 x Socket P (LGA 3647) 1st and 2nd Gen Xeon® Scalable Processor Family *Refer to support page for more information *Please refer to overview for details UPI (10.4 GT/s) Generation E9 Core Logic Intel® C621 Chipset Memory Total Slots : 16 (6-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 512GB RDIMM/Maximum up to 1024GB LRDIMM/Maximum up to 2048GB LR-DIMM 3DS Memory Type : DDR4 2933/2666 Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. Expansion Slots 2 x PCI-E x16 (Gen3 x16 link), LP, HL 4 x PCI-E x8 (Gen3 x8 link), LP, HL 1 x OCP 2.0 Mezzanine (Gen3 x16 link) Storage SATA Controller : Intel® C621 11 x SATA3 6Gb/s ports (8 by 2 Mini-SAS Connector) 2 x M.2 connector (2280/2260/2242) (SATA 6Gb/s & PCIe® Gen3 x4 link) Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) SAS Controller : ASUS PIKE II 3008 8-port SAS HBA card(Optional) ASUS PIKE II 3108 8-port SAS HW RAID card Drive Bays 24 x Front Hot-Swap 3.5”/ 2.5" Storage Bays(BP w/Expander) 12 x Rear Hot-Swap 3.5”/ 2.5" Storage Bays(BP w/Expander) 2 x Hot-Swap 2.5” Storage Bays(Rear) 2 x M.2(2280/2260/2242)(Support SATA/PCIe M.2,SATA/PCIe RAID) Networking 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN Graphic Aspeed AST2500 with 64MB VRAM Front I/O Ports 2 x USB 2.0 ports Rear I/O Ports 2 x USB 3.0 ports 1 x VGA port 2 x RJ-45 GbE LAN ports 1 x RJ-45 Mgmt LAN port Switch/LED Front Switch/LED: 1 x Power switch/LED 1 x Location switch/LED 1 x Reset switch 1 x HDD Access LED 1 x Message LED LAN 1-4 LED * LAN3-4 for Mezzazine card use Rear Switch/LED: 1 x Power switch 1 x Q-Code/Port 80 LED 1 x Message LED 1 x HDD LED 1 x Location LED OS Support Please find the latest OS support from http://www.asus.com/ Regulatory Compliance CCC, CE, FCC(Class A) Dimensions 615mm x 447mm x 176mm(4U) 24.21" x 17.6" x 6.92" Form Factor 4U Weight Net Weight : 27.73KG Gross Weight : 36.1KG Power Supply 1+1 Redundant 800W 80 PLUS Platinum Power Supply (for 85W CPU and below) Rating: 100-127Vac/200-240Vac,10A/5A ,50/60Hz, Class I Environment Operation temperature: 10?~35? Non operation temperature: -40?~70? Non operation humidity: 20%~90%(Non condensing)
