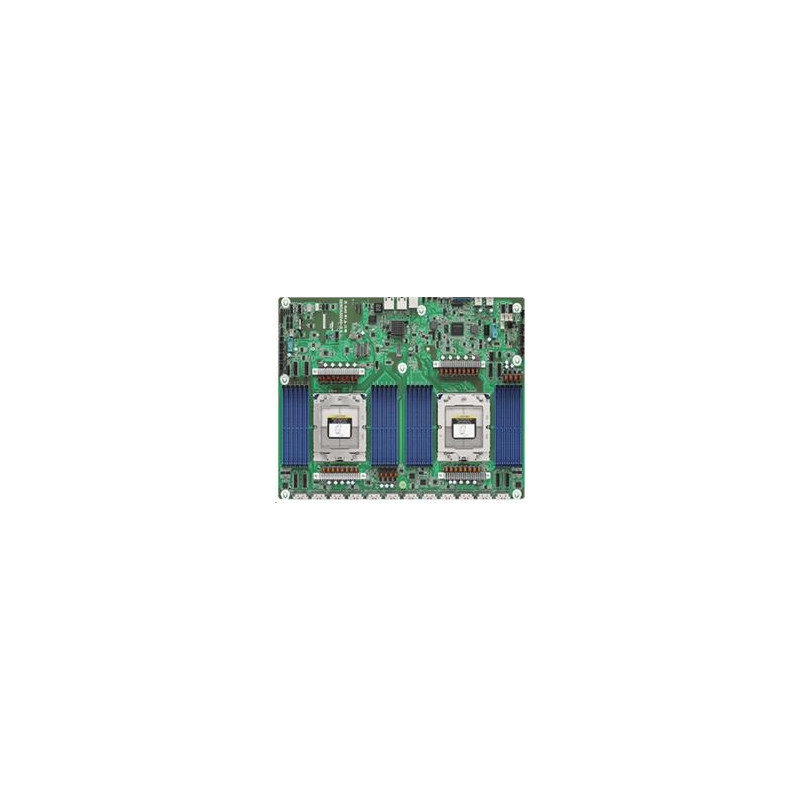

| Physical Status |
| Form Factor |
Proprietary |
| Dimensions |
16.93"x 13.78" |
| Processor System |
| CPU |
Supports AMD EPYC™ 9005*/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
*A BIOS update is required to support AMD EPYC™ 9005 series processors |
| Socket |
Dual Socket SP5 (LGA 6096) |
| Thermal Design Power |
Up to 400W |
| Chipset |
System on Chip |
| System Memory |
| Supported DIMM Quantity |
12+12 DIMM slots (1DPC) |
| Supported Type |
Supports DDR5 288-pin RDIMM, RDIMM-3DS |
| Max. Capacity per DIMM |
RDIMM: 128GB (2Rx4)
RDIMM-3DS: 512GB (2Rx4) |
| Max. DIMM Frequency |
4800 MHz |
| Voltage |
1.1V |
| Other PCIe Expansion Connectors |
| M.2 slot |
M2_1 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [CPU0]
M2_2 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [CPU1] |
| Others |
6 MCIO (PCIe5.0 / CXL2.0* x8) [CPU0]
2 MCIO (PCIe5.0 / CXL2.0* x8 or 8 SATA 6Gb/s) [CPU0]
2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s) [CPU0]**
6 MCIO (PCIe5.0 / CXL2.0* x8) [CPU1]
2 MCIO (PCIe5.0 / CXL2.0* x8 or 8 SATA 6Gb/s) [CPU1]
2 MCIO (PCIe5.0 x8) [CPU1]
*Supports CXL1.1 while installing AMD EPYC 9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
**MCIO9, 10 support PCIe only while installing 2 processors |
| SATA/SAS Storage |
| PCH Built-in Storage |
AMD EPYC™ 9005/9004 (Up to 32 SATA 6Gb/s):
4 MCIO |
| Additional SATA Controller |
ASM1061 (2 SATA 6Gb/s):
2 M.2 |
| Ethernet |
| Additional GbE Controller |
Intel® i350: 2 RJ45 (1GbE) |
| Server Management |
| BMC Controller |
ASPEED AST2600 |
| IPMI Dedicated GLAN |
1 Realtek RTL8211F for dedicated management GLAN |
| Graphics |
| Controller |
ASPEED AST2600 |
| VRAM |
DDR4 512MB |
| Rear I/O |
| UID Button/LED |
1 UID button w/ LED |
| Other Button/LED |
1 PWR button, 1 RST button, 1 NMI button, 1 HDD LED, 1 SYS LED |
| Video Port |
1 DB15 (VGA) |
| USB 3.2 Gen1 Port |
4 Type-A (USB3.2 Gen1) |
| RJ45 |
2 RJ45 (1GbE)
1 dedicated IPMI |
| Internal Connector/Headers |
| Power Connector |
6 Micro-hi (8-pin, ATX 12V), 1 Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable |
| Auxiliary Panel Header |
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel |
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header |
1 |
| VGA header |
1 |
| Fan Header |
6 (6-pin) |
| TPM Header |
1 (13-pin,SPI) |
| SGPIO Header |
4 |
| HSBP |
1 |
| SMBus header |
4 |
| PMBus header |
1 |
| IPMB Header |
1 |
| Clear CMOS |
1 (contact pads) |
| USB 3.2 (Gen1) Header |
2 (19-pin, 2 USB3.2 Gen1) |
| NMI Header |
1 |
| LED Indicators |
| Standby PWR LED |
1 (5VSB) |
| 80 Debug Port LED |
1 |
| Fan Fail LED |
6 |
| BMC heartbeat LED |
1 |
| System BIOS |
| BIOS Type |
AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM |
| BIOS Features |
ASRock Rack Instant Flash, ACPI 6.4 and about compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) |
| Hardware Monitor |
| Temperature |
CPU, MB, Card side Temperature Sensing |
| Fan |
Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control |
| Voltage |
P0_VDDCR_CPU0, P0_VDDCR_CPU1, P0_VDDCR_SOC, P0_VDD_18_DUAL, P0_VDD_11_S3, P0_VDDIO, P1_VDDCR_CPU0, P1_VDDCR_CPU1, P1_VDDCR_SOC, P1_VDD_18_DUAL, P1_VDD_11_S3, P1_VDDIO, +BAT, +12V, +3VSB, +5VSB |
| Environment |
| Temperature |
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity |
Non operation humidity: 20% ~ 90% ( Non condensing) |
