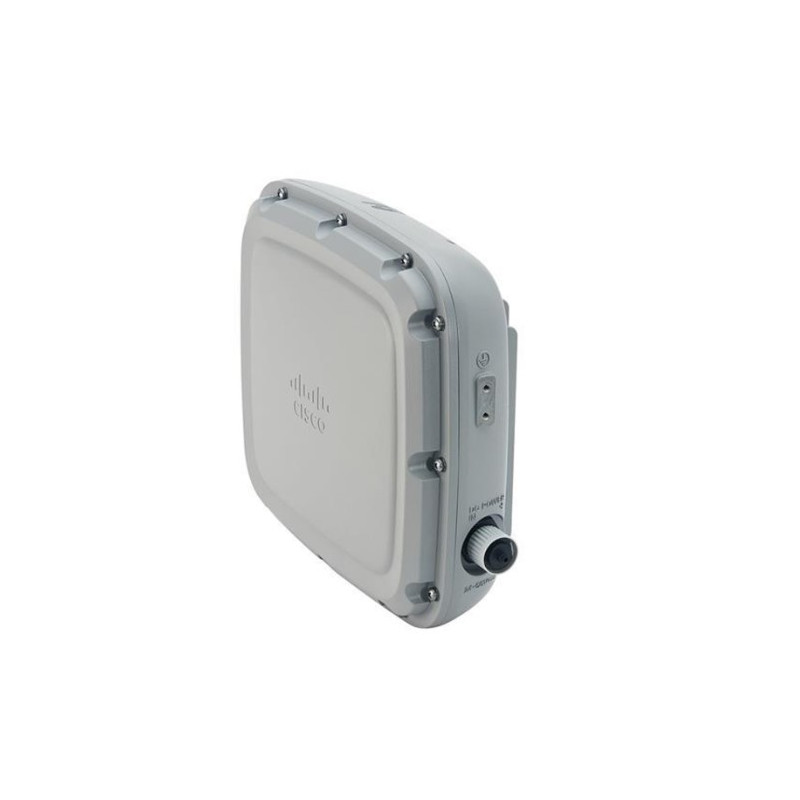

C9124AXI-E
Zařízení poskytuje 4x4 MU-MIMO na frekvencích 2.4 GHz a 5 GHz s interními anténami o zisku 7 dBi. Obsahuje 1x 100/1000/2500 BASE-T a 1x Gigabit Ethernet SFP port. Podporuje PoE a připojení pomocí DC napájení. Ovládací port RJ-45 a LED indikátory pro stav připojení.
46 834 Kč bez DPH 38 706 Kč
Technické parametry
Počet LAN portů
1
1x
1x
Wi-Fi 2,4 GHz
Ano
Wi-Fi 5 GHz
Ano
Wi-Fi 4 (802.11n)
Ano
Wi-Fi 5 (802.11ac)
Ano
Wi-Fi 6 (802.11ax)
Ano
WiFi 2 (802.11a)
Ano
WiFi 1 (802.11b)
Ano
WiFi 3 (802.11g)
Ano
USB port u routeru
Není
Použití (venkovní/vnitřní)
Venkovní
Optika
Ano
POE
Ano
Rychlost LAN max.
2,5 Gbit/s
Antény
Všesměrové
Typ zařízení
Acces point/Bridge
Nevyžaduje smluvní údaje
Ano
Popis produktu
4x4:4 in both 2.4GHz and 5 GHz uplink/downlink MU-MIMO with four spatial streams
2.4 GHz: Peak gain 7 dBi, internal antenna, Vertical Polarization, omnidirectional
5 GHz: Peak gain 7 dBi, internal antenna, Vertical Polarization, omnidirectional
BLE Antenna Gain: 5 dBi, internal antenna, Vertical Polarization, omnidirectional
The Catalyst 9124AXE Access Point is certified for use with antenna gains up to 13 dBi (2.4 GHz and 5GHz)
Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios.
Supports Self-Identifiable Antennas (SIA)
For more details, see Catalyst 9124AX Series Getting Started Guide.
1x 100/1000/2500 BASE-T (Ethernet) uplink interface
1x Gigabit Ethernet SFP
Supports PoE output (802.3af compliant PSE) on the 1x 10/100/1000 BASE-T (Ethernet) downlink interface if C9124AX powered from one of the following:
UPOE or 802.3bt inline power source (Switch or Power Injector)
DC input (with external power supply rated 3 60W)
Management console port (RJ-45)
Status LED indicates boot loader status, association status, operating status, boot loader warnings
802.3af Power over Ethernet (PoE), 802.3at PoE+, 802.3bt PoE++, Cisco Universal PoE (Cisco UPOE)
Cisco power injector, AIR-PWRINJ-60RGD1= and AIR-PWRINJ-60RGD2=
Cisco power injector, AIR-PWRINJ6= (Note: This injector supports 802.3at)
DC power source: Auxiliary DC input, 24V to 56V
2.4 GHz
30 dBm (1W)
-4 dBm (0.4 mW)
5 GHz
30 dBm (1W)
-4 dBm(0.4 mW)
2.4 GHz: Peak gain 7 dBi, internal antenna, Vertical Polarization, omnidirectional
5 GHz: Peak gain 7 dBi, internal antenna, Vertical Polarization, omnidirectional
BLE Antenna Gain: 5 dBi, internal antenna, Vertical Polarization, omnidirectional
The Catalyst 9124AXE Access Point is certified for use with antenna gains up to 13 dBi (2.4 GHz and 5GHz)
Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios.
Supports Self-Identifiable Antennas (SIA)
For more details, see Catalyst 9124AX Series Getting Started Guide.
1x 100/1000/2500 BASE-T (Ethernet) uplink interface
1x Gigabit Ethernet SFP
Supports PoE output (802.3af compliant PSE) on the 1x 10/100/1000 BASE-T (Ethernet) downlink interface if C9124AX powered from one of the following:
UPOE or 802.3bt inline power source (Switch or Power Injector)
DC input (with external power supply rated 3 60W)
Management console port (RJ-45)
Status LED indicates boot loader status, association status, operating status, boot loader warnings
802.3af Power over Ethernet (PoE), 802.3at PoE+, 802.3bt PoE++, Cisco Universal PoE (Cisco UPOE)
Cisco power injector, AIR-PWRINJ-60RGD1= and AIR-PWRINJ-60RGD2=
Cisco power injector, AIR-PWRINJ6= (Note: This injector supports 802.3at)
DC power source: Auxiliary DC input, 24V to 56V
2.4 GHz
30 dBm (1W)
-4 dBm (0.4 mW)
5 GHz
30 dBm (1W)
-4 dBm(0.4 mW)
- Počet LAN portů
- 1
1x - Wi-Fi 2,4 GHz
- Ano
- Wi-Fi 5 GHz
- Ano
- Wi-Fi 4 (802.11n)
- Ano
- Wi-Fi 5 (802.11ac)
- Ano
- Wi-Fi 6 (802.11ax)
- Ano
- WiFi 2 (802.11a)
- Ano
- WiFi 1 (802.11b)
- Ano
- WiFi 3 (802.11g)
- Ano
- USB port u routeru
- Není
- Použití (venkovní/vnitřní)
- Venkovní
- Optika
- Ano
- POE
- Ano
- Rychlost LAN max.
- 2,5 Gbit/s
- Antény
- Všesměrové
- Typ zařízení
- Acces point/Bridge
- Nevyžaduje smluvní údaje
- Ano
Zařízení poskytuje 4x4 MU-MIMO na frekvencích 2.4 GHz a 5 GHz s interními anténami o zisku 7 dBi. Obsahuje 1x 100/1000/2500 BASE-T a 1x Gigabit Ethernet SFP port. Podporuje PoE a připojení pomocí DC napájení. Ovládací port RJ-45 a LED indikátory pro stav připojení.
